Description
Product Overview

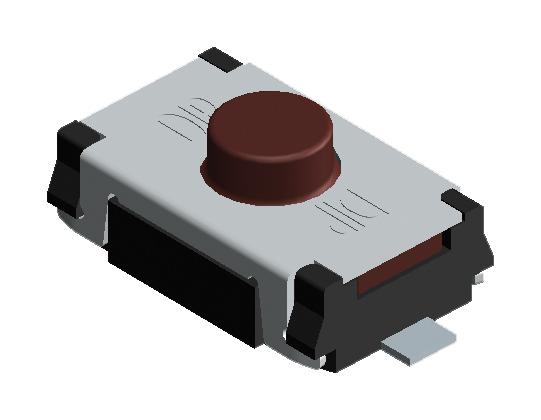

MPTAEF-25NA-V-T/R is a flat pin tactile switch.
- 200 ±50gf operation force
- 200,000 operation life, 0.3 ±0.15 travel
- General tolerance is ±0.2mm
- 50mA switch current rating, 12VDC switch voltage rating
- 100mohm max contact resistance
- 100VDC, 100Mohm min insulation resistance
- Stainless steel cover, high-temp thermoplastic LCP V - 0 (black) base
- 100Mohm min insulation resistance
- Dimension is 3.8mm × 6mm, H2.5mm
- Operating temperature range from -40°C to +85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPTAEF-25NA-V-T/R |
| Quantity | Each |
| Technical Data Sheet EN |  |
