Description
Product Overview

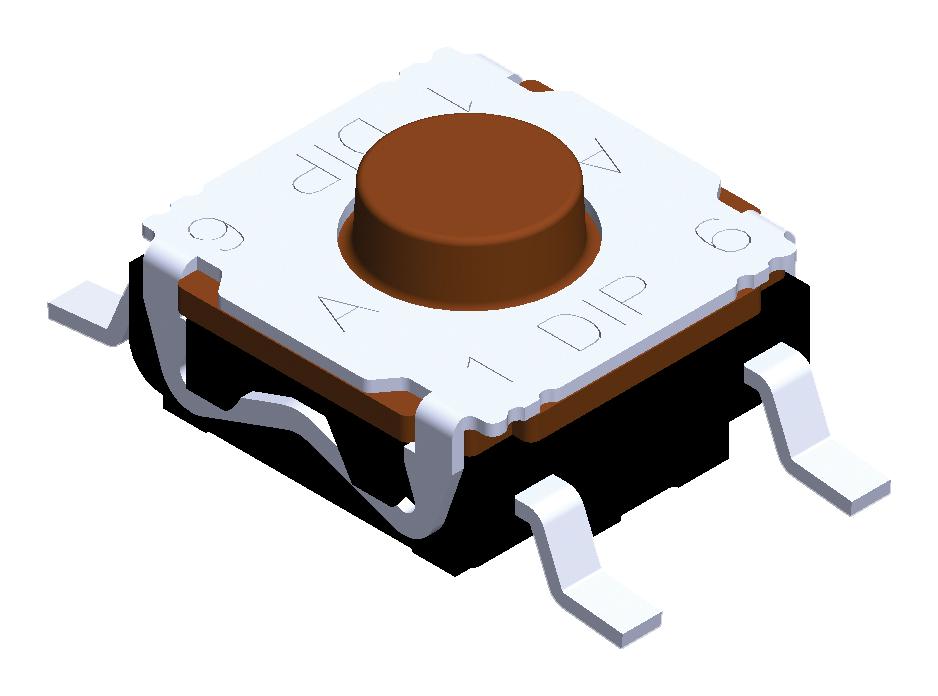

MPT6WM4RGQR is a SMT tactile switch.
- 50mA, DC 32V max/1mA, DC 20MV min rating
- 100mohm max initial contact resistance, 100VDC/10Mohm insulation resistance
- 200gf operating force, ±0.2mm general tolerances
- 0.1mm solder thickness
- Air pressure range from 86 to 106kPa
- Tactile feedback type of actuation
- Silicone rubber stem material, stainless steel cover and contact material
- Dimension is 6mm x 6mm, H4.3mm
- Operating temperature range from -40°C to +85°C
- High temp thermoplastic LCP (moulded black) base material
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPT6WM4RGQR |
| Quantity | Each |
| Technical Data Sheet EN |  |
