| ₹ 152.94 includes GST and import duties. | |
| B2B customers can avail ₹ 23.32 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

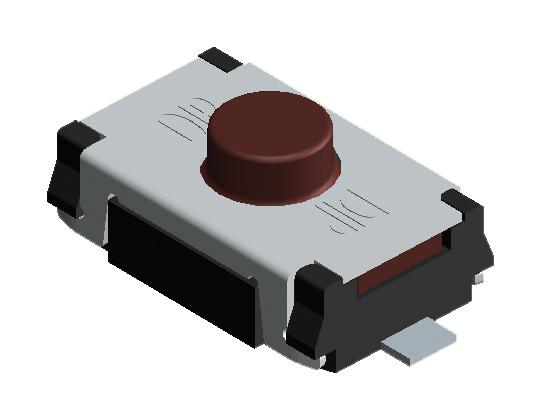

MPTAEF-25SA-V-T/R is a flat pin tactile switch.
- 450 ±110gf operation force
- 100,000 operation life, 0.45 ±0.15 travel
- General tolerance is ±0.2mm
- 50mA switch current rating, 12VDC switch voltage rating
- 100mohm max contact resistance
- 100VDC, 100Mohm min insulation resistance
- Stainless steel cover, high-temp thermoplastic LCP V - 0 (black) base
- 100Mohm min insulation resistance
- Dimension is 3.8mm × 6mm, H2.5mm
- Operating temperature range from -40°C to +85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPTAEF-25SA-V-T/R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 149.88 |
| 3-5 | ₹ 148.35 |
| 5-10 | ₹ 145.29 |
| 10+ | ₹ 142.23 |
Bulk discount will be automatically applied during checkout based on quantity.
