Description
TEKVOX TPHD460S Overview

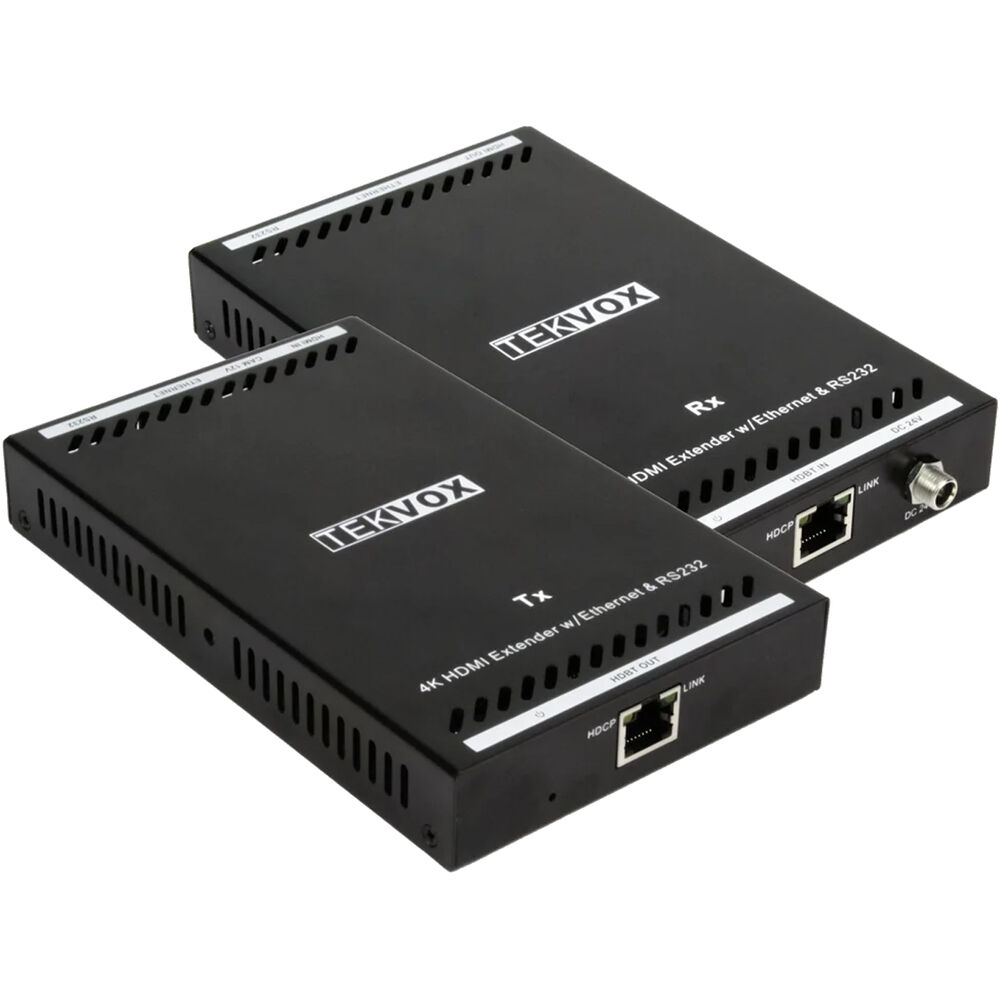

The TPHD460S HDMI over HDBaseT Extender Set from TEKVOX combines a transmitter and receiver that allow you to send 4K and 1080p signal up to 328' over a single Cat 6a cable. Bidirectional RS-232 passthrough control as well as Ethernet extension are also supported. The system can provide up to 30W of power to third-party devices, while the 36V PoC (Power over Cable) functionality allows you to power your transmitter from the receiver, thus needing only one power cable connected to an AC plug and eliminating cable clutter while streamlining connectivity.
At a Glance
- Supports Full HD
- Maximum transmission distance is 230' for 1080p and 130' for 4K over a single Cat 6a cable
- High 10.2 Gb/s Bandwidth
- HDCP 2.2 compliant
- Supports CEC, IR, and RS-232 passthrough
- Supports bidirectional PoH (Power over HDBaseT)
- Supports bidirectional RS-232 and IR control
- Integrated LED indicators show work status
- Lifetime warranty
Items Included
- TEKVOX TPHD460S HDMI over HDBaseT Extender Set (328')
- Transmitter
- 2 x Mounting Ear with 2 Screws (for Transmitter)
- 4 x Plastic Cushion (Transmitter)
- RS-232 Cable (3-Pin to 8-Pin Mini-DIN - Transmitter)
- 2 x 3-Pin Terminal Block (Transmitter)
- Receiver
- 2 x Mounting Ear with 2 Screws (for Receiver)
- 4 x Plastic Cushion (Receiver)
- RS-232 Cable (3-Pin to DB-9 - Receiver)
- 2-Pin Terminal Block (Receiver)
- 24 VDC, 2.71A Power Adapter
- 2 x Power Cord
- Limited Lifetime Warranty
Additional Resources
TEKVOX TPHD460S Specs
Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45 (HDBaseT)
|

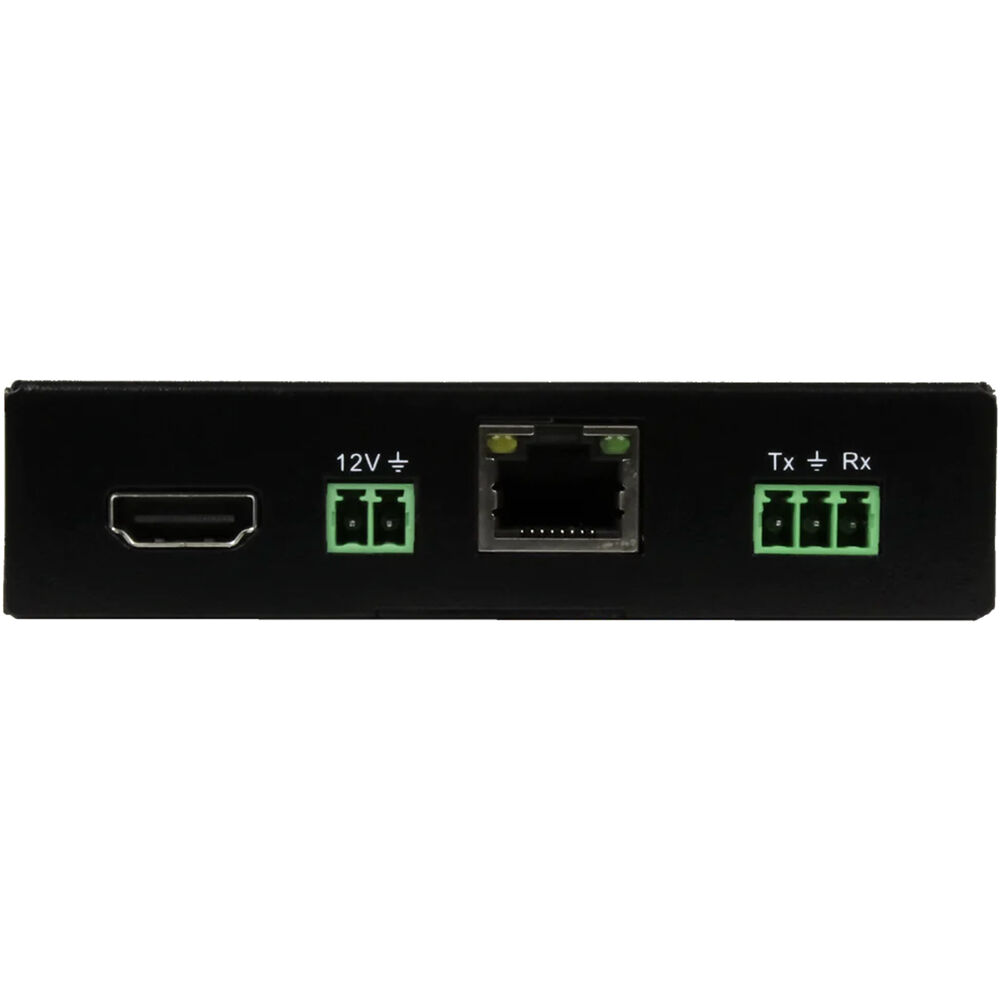

| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR
1x 1/8" / 3.5 mm IR 1x Block 3-Pin RS-232 |
Receiver Interfaces
| Inputs |
1x RJ45 (HDBaseT)
|
| Outputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Output |
HDMI
|

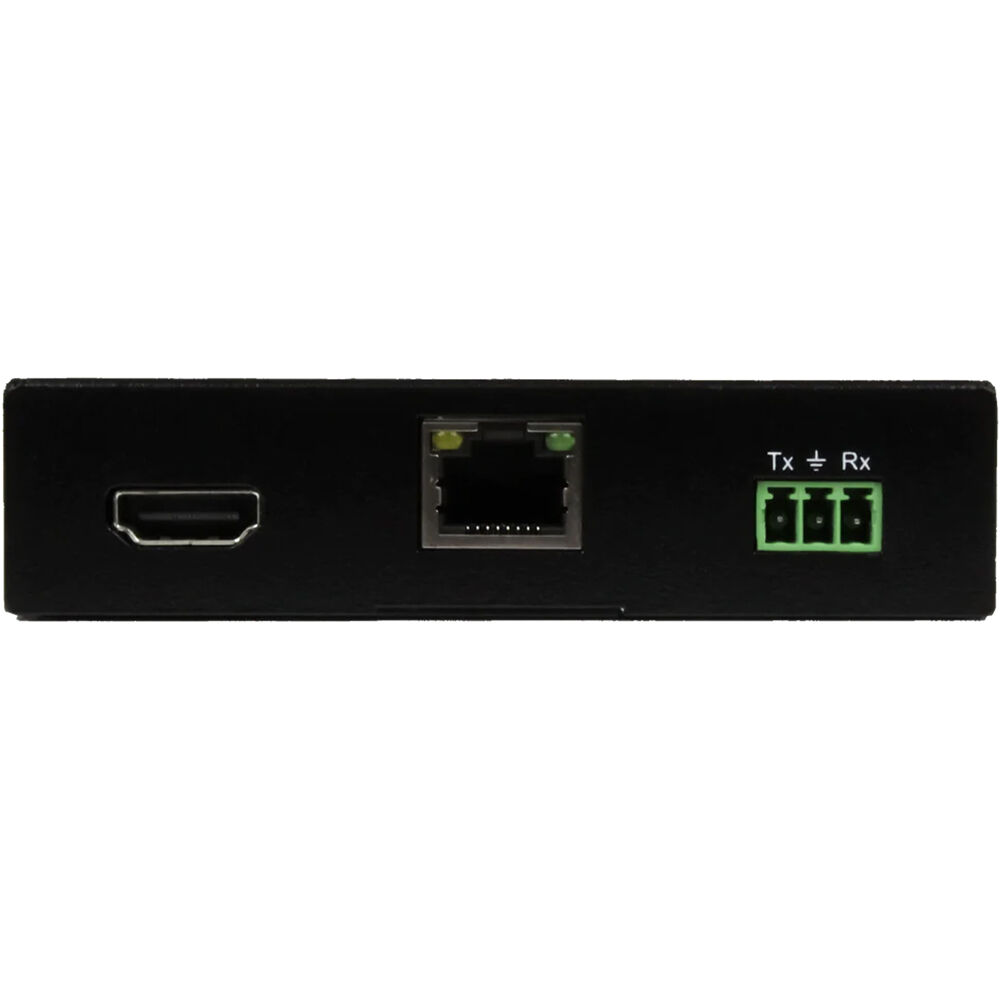

| Receiver Other I/O |
1x 1/8" / 3.5 mm IR
1x 1/8" / 3.5 mm IR 1x Block 3-Pin RS-232 |
Standards
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
Passthrough
|
Transmission
| Max Transmission Distance |
UHD 4K, 1080p at 60 Hz:
328.1' / 100 m (via Cat 6a) |
| Video Format |
HDMI (4:2:2):
3840 x 2160: 25/29.97/30/23.98/24 fps 1920 x 1080p: 25/29.97/30/50/59.94/60/23.98/24 fps 1920 x 1080i: 50/59.94/60 fps 1280 x 720p: 25/29.97/30/50/59.94/60/23.98/24 fps 720 x 480p: 60 fps 720 x 576p: 50 fps HDMI (4:2:0): 3840 x 2160: 60 fps |
| Audio Format |
Unspecified Digital Signal
|
| Supported Cable Types |
Cat 6a or higher
|
Power
| Transmitter Power I/O |
1x Block 2-Pin (12 VDC at 2.5 A) Output
|

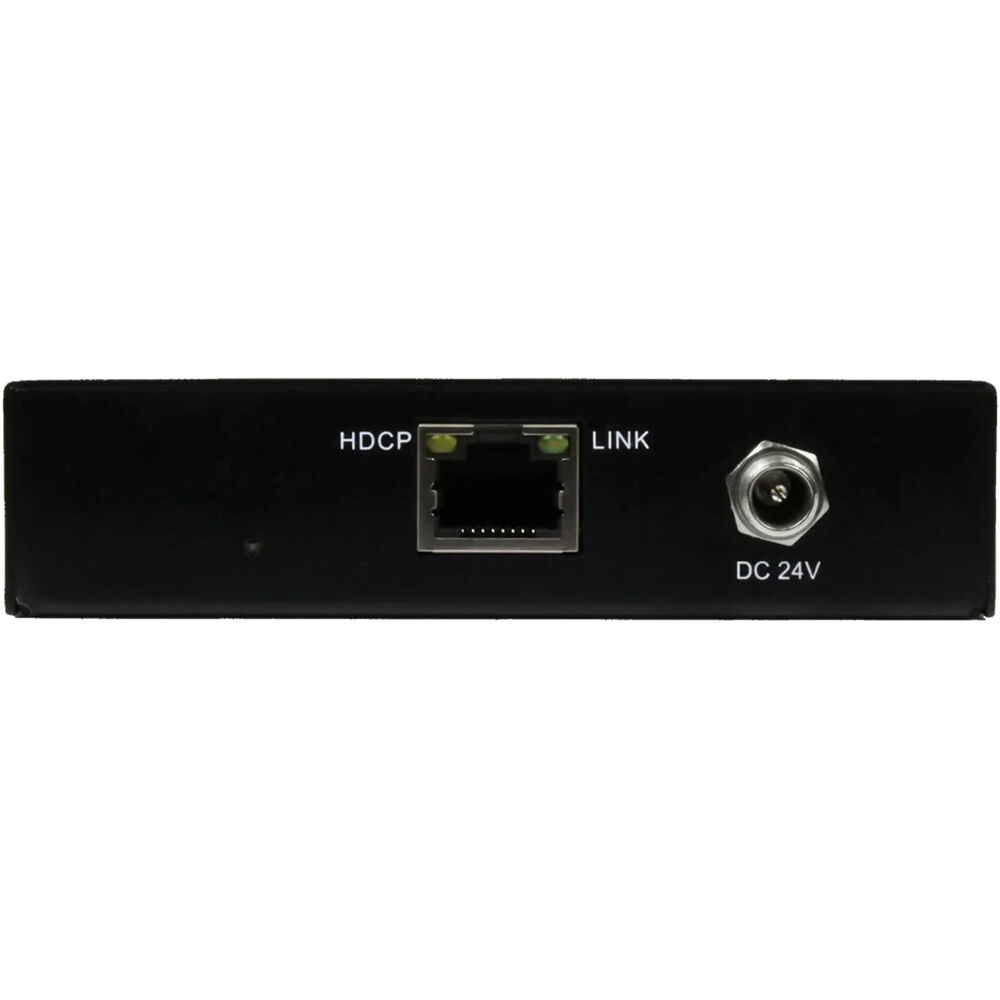

| Receiver Power I/O |
1x Barrel (24 VDC at 2.7 A) Input
|
| PoE Support |
PoE Proprietary
|
| Transmitter Power Consumption |
100 to 240 VAC (62 W)
|
| Receiver Power Consumption |
100 to 240 VAC (62 W)
|
General
| Operating Conditions |
23 to 131?F / -5 to 55?C at 10 to 90% Humidity
|
| Storage Conditions |
-13 to 158?F / -25 to 70?C at 10 to 90% Humidity
|
| Transmitter Dimensions |
6.3 x 3.9 x 0.9" / 160 x 100 x 24 mm
|
| Receiver Dimensions |
6.3 x 3.9 x 0.9" / 160 x 100 x 24 mm
|
| Transmitter Weight |
0.8 lb / 370 g
|
| Receiver Weight |
0.8 lb / 380 g
|
