Description
TEKVOX TPHD451S Overview

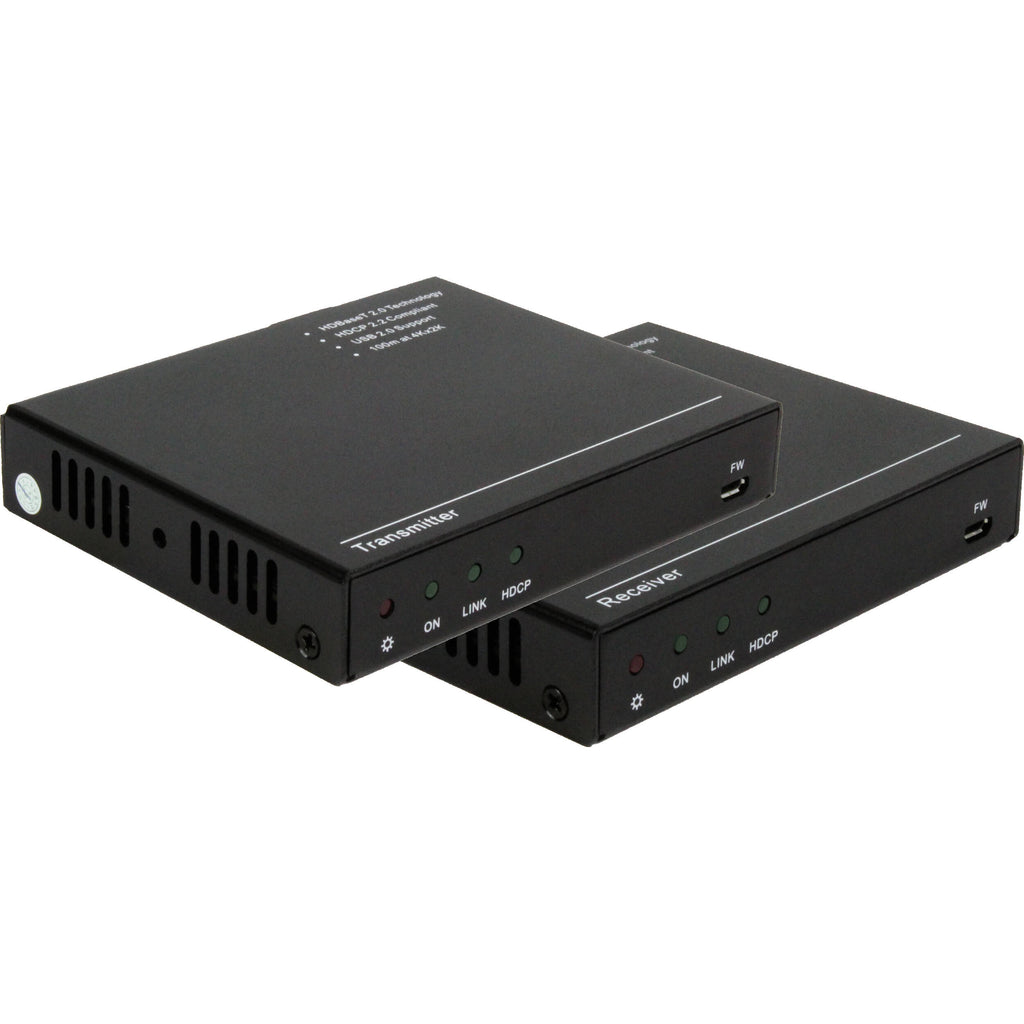

The TPHD451S HDMI over HDBaseT & USB Extender Set from TEKVOX combines a transmitter and receiver that allow you to send 4K and 1080p signal up to 328' over a single Cat 6a cable. Bidirectional RS-232 passthrough control as well as Ethernet extension are also supported. The system can provide up to 30W of power to third-party devices, while the PoC (Power over Cable) functionality allows you to power your transmitter from the receiver, thus needing only one power cable connected to an AC plug and eliminating cable clutter while streamlining connectivity.
At a Glance
- Delivers Full HD video and supports PCM, Dolby Digital, and DTS digital audio
- Transmits 4K or 1080p Signal up to 328'
- High 10.2 Gb/s bandwidth
- HDMI 1.4 and HDCP 2.2 compliant
- Supports unidirectional PoC through HDBaseT connection
UPC: 860013604349
Items Included
- TEKVOX TPHD451S HDMI over HDBaseT & USB Extender Set (328')
- Limited Lifetime Warranty
Additional Resources
No additional resources available
TEKVOX TPHD451S Specs
Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45 (HDBaseT)
|

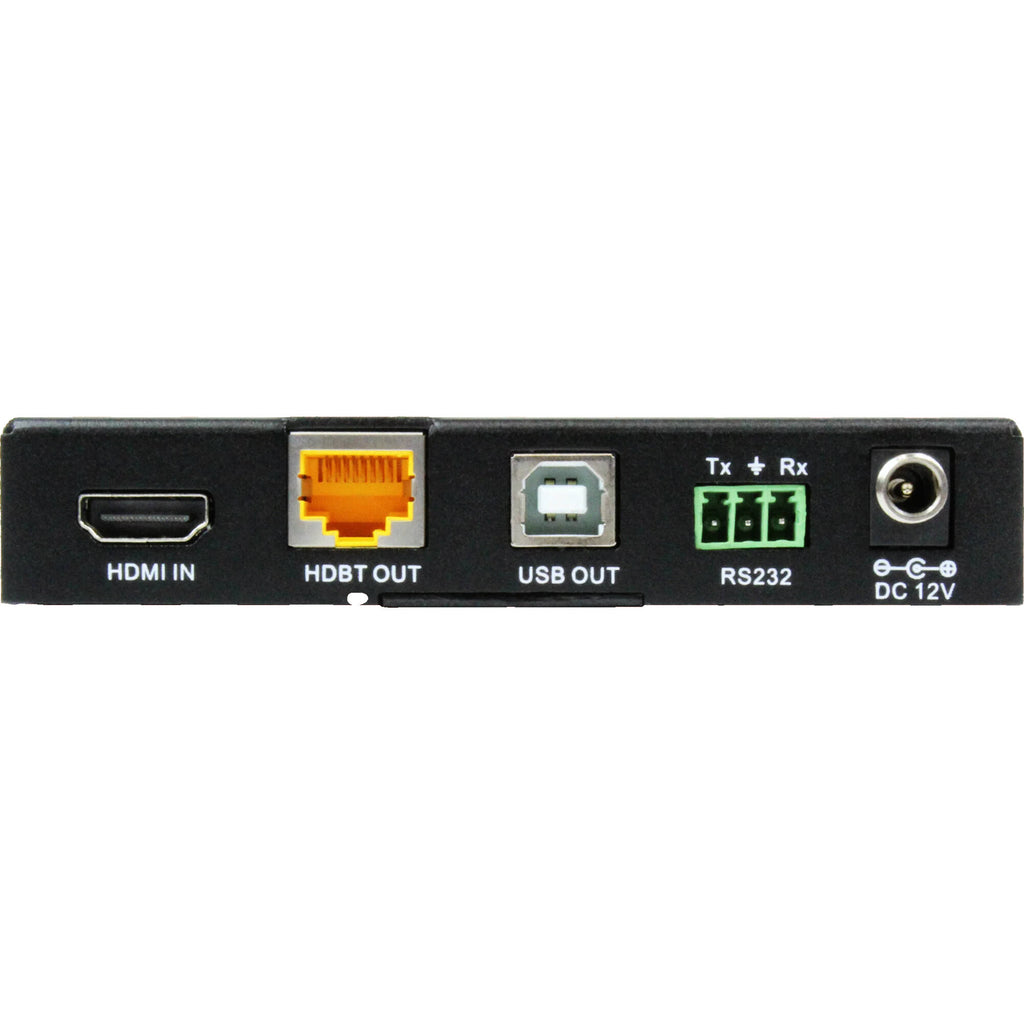

| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output 1x Block 3-Pin RS-232 Input/Output |
Receiver Interfaces
| Inputs |
1x RJ45 (HDBaseT)
|
| Outputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Output |
HDMI
|

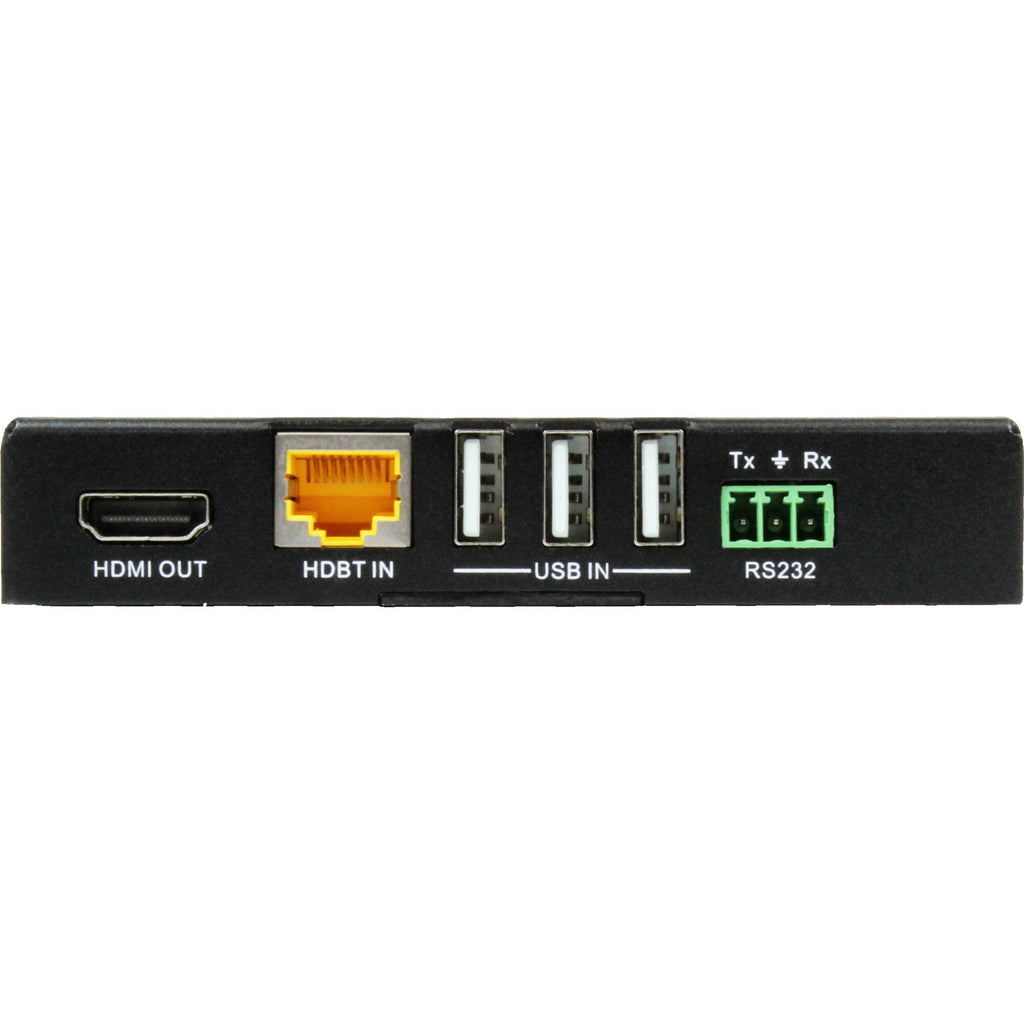

| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
|
Standards
| HDCP Support |
Yes: Version 2.2
|
| EDID Support |
Auto-Detect
|
Transmission
| Max Transmission Distance |
UHD 4K:
229.7' / 70 m (via Cat 6a) 328.1' / 100 m |
| Video Format |
HDMI (4:2:0):
3840 x 2160: 60 fps |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS, DTS-HD High Resolution, Dolby Digital
|
| Supported Cable Types |
Cat 6/6a
|
Power
| Transmitter Power I/O |
1x Barrel Input
|
| PoE Support |
PoH 802.3at, PoE Proprietary
|
| Transmitter Power Consumption |
Power Supply: 100 to 240 VAC
Device: 24 VDC at 1.25 A (10 W) |
General
| Operating Conditions |
32 to 122?F / 0 to 50?C at 0 to 90% Humidity
|
| Transmitter Dimensions |
6 x 4.1 x 0.6" / 0.2 x 0.1 x 0 m
|
| Receiver Dimensions |
6 x 4.1 x 0.6" / 152.4 x 104.1 x 15.2 mm
|
| Transmitter Weight |
8.5 oz / 241 g
|
| Receiver Weight |
8.5 oz / 241 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
