Description
Network Technologies ST-C5USB2VT Overview

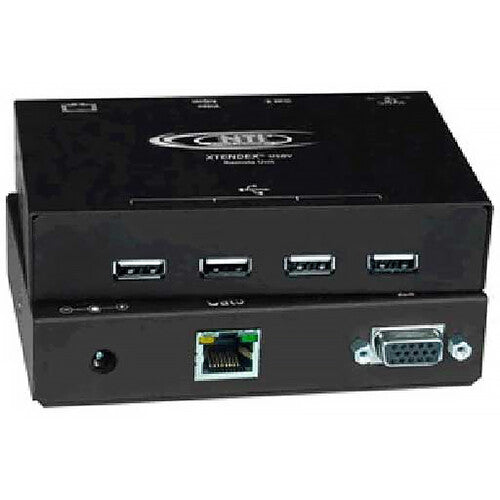

The XTENDEX 4-Port USB Extender with Dual VGA Video from Network Technologies comprises local and remote units that enable you to extend four USB peripherals and two VGA video monitor signals up to 200'. This plug-and-play system supports bus- or self-powered USB 2.0 devices using Cat 5e/6/6a/7 cable. It is compatible with macOS and Windows, and it comes with AC adapters and detachable mounting brackets.
Extension via Cat Cable
- Extends USB 1.1/1.0 devices to 180' and USB 2.0 devices to 150' via Cat 5e/6 cable.
- Extends USB 1.1/1.0 devices to 200' and USB 2.0 devices to 180' via Cat 6a/7 cable.
Additional Details
- Transparent data extension.
- Supports video resolutions up to 2048 x 1536.
- Compliant with full-/low-speed devices.
- DDC2B support for local or remote monitor.
- Meets the ESD immunity requirements of IEC/EN 61000-4-2.
- Plug-and-play setup; no driver required.
Items Included
- Network Technologies XTENDEX 4-Port USB Extender with Dual VGA Video (200')
- Local Unit
- Remote Unit
- 2 x AC Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies ST-C5USB2VT Specs
Transmitter Interfaces
| Embedded Audio Input |
RJ45
|
| Outputs |
2x DE-15/DB-15 Male
|
| Transmitter Other I/O |
1x USB-B Input/Output
|
Receiver Interfaces
| Inputs |
2x DE-15/DB-15 Female
|
| Embedded Audio Output |
RJ45
|
| Receiver Other I/O |
4x USB-A Input/Output
|
Standards
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
150' / 45.7 m (via Cat 5e/6)
180' / 54.9 m (via Cat 6a/7) |
| Video Format |
VGA :
2048 x 1536 |
| Supported Cable Types |
Cat 5e/6/6a/7
|
Power
| Transmitter Power I/O |
1x Barrel Input
|
| Receiver Power I/O |
1x Barrel Input
|
| PoE Support |
No
|
| Transmitter Power Consumption |
(10 W)
|
| Receiver Power Consumption |
(10 W)
|
General
| Certifications |
CE, RoHS, TAA
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Transmitter Dimensions |
5.14 x 3.07 x 1.69" / 130.56 x 77.98 x 42.93 mm
|
| Receiver Dimensions |
5.14 x 3.07 x 1.69" / 130.56 x 77.98 x 42.93 mm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
