Description

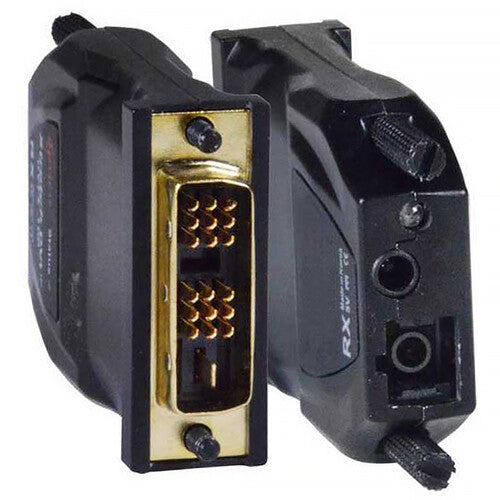

Network Technologies Optical DVI Receiver Overview

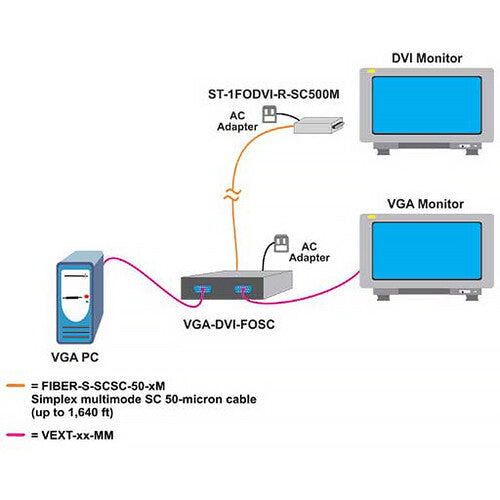

Transmit a DVI signal up to 1640' away using the Optical Fiber to DVI Receiver from Network Technologies. This receiver pairs with the separately available VGA-DVI-FOSC converter/fiber transmitter to transmit a VGA signal over multimode SC fiber optic cable up to 1640' for display on a DVI-D display.
The receiver supports video signals with resolutions up to 1920 x 1200 WUXGA. The compact, all-in-one design features a female SC fiber input and a male DVI-D output to plug directly into a monitor. The unit is powered via a power adapter.
NOTE: Recommended fiber cables include a FIBER-S-SCSC-50-xM simplex multimode SC 50-micron fiber optic cable or a simplex multimode SC 62.5-micron fiber optic cable.
Items Included
- Network Technologies Optical Fiber to DVI Receiver for VGA-DVI-FOSC System
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies Optical DVI Receiver Specs
| Inputs |
1x SC (Fiber) Female
|
| Outputs |
1x DVI-D SL (DVI) Male
|
| Max Transmission Distance |
1640.4' / 500 m (via Multi-Mode Fiber)
|
| Video Format |
DVI :
1920 x 1200 |
| PC Resolutions |
DVI, Fiber: 1920 x 1200
|
| Supported Cable Types |
Multi-Mode Fiber
|
| Power I/O |
1x Barrel Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC
|
| Certifications |
CE, FCC, RoHS
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 0 to 85% Humidity
|
| Storage Conditions |
-22 to 158?F / -30 to 70?C at 0 to 85% Humidity
|
| Dimensions |
2.2 x 1.5 x 0.6" / 56 x 39 x 15 mm
|
