Description
Network Technologies ST-C5USBVT Overview

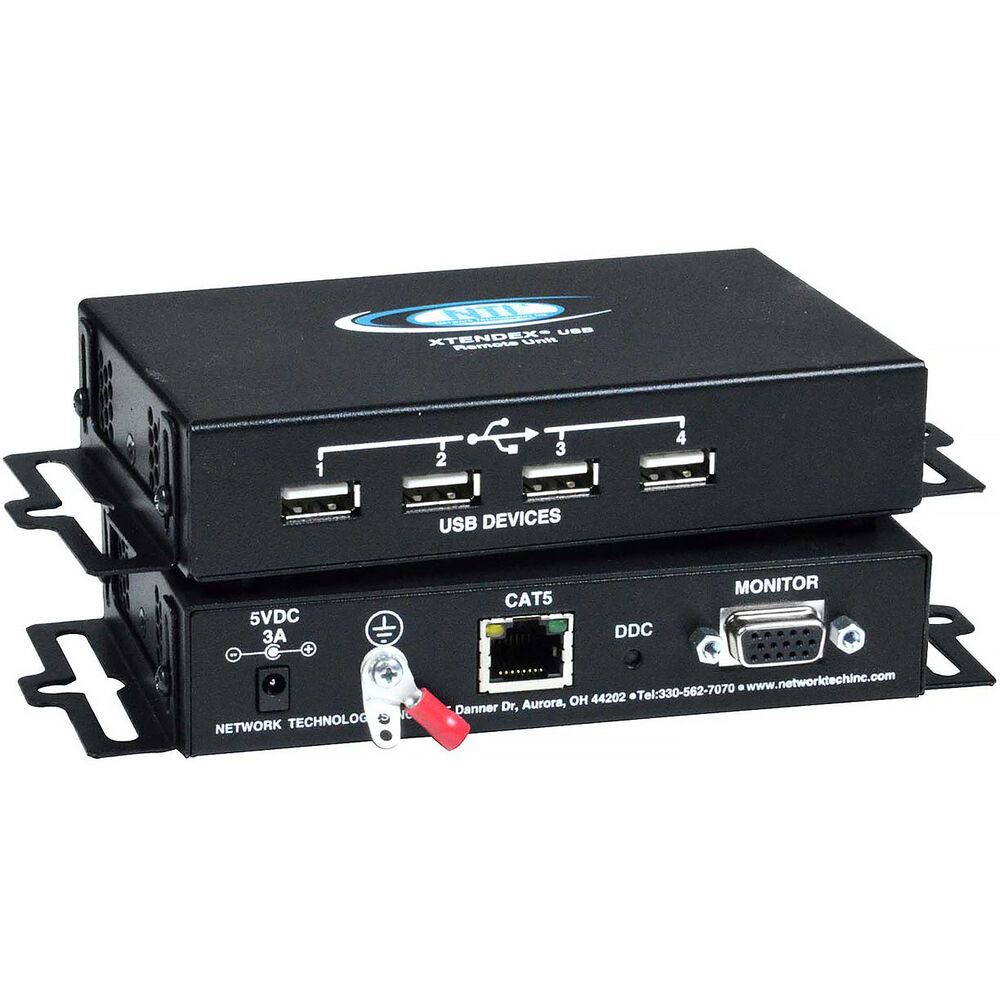

The XTENDEX 4-Port USB Extender with VGA Video from Network Technologies comprises local and remote units that enable you to extend a VGA video monitor and four USB peripherals up to 200'. This plug-and-play system supports bus- or self-powered USB 2.0 devices using Cat 5e/6/6a/7 cable. It is compatible with macOS and Windows, and it comes with AC adapters and detachable mounting brackets.
Extension via Cat Cable
- Extends USB 1.1/1.0 devices to 180' and USB 2.0 devices to 150' via Cat 5e/6 cable.
- Extends USB 1.1/1.0 devices to 200' and USB 2.0 devices to 180' via Cat 6a/7 cable.
Additional Details
- Transparent data extension.
- Supports video resolutions up to 2048 x 1536.
- Compliant with full-/low-speed devices.
- DDC2B support for local or remote monitor.
- Meets the ESD immunity requirements of IEC/EN 61000-4-2.
- Plug-and-play setup, no driver required.
Items Included
- Network Technologies XTENDEX 4-Port USB Extender with VGA Video (200')
- Local Unit
- Remote Unit
- 2 x AC Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies ST-C5USBVT Specs
Transmitter Interfaces
| Embedded Audio Input |
RJ45
|
| Outputs |
1x DE-15/DB-15 Male
|
| Transmitter Other I/O |
1x USB-B Input/Output
|
Receiver Interfaces
| Inputs |
1x DE-15/DB-15 Female
|
| Embedded Audio Output |
RJ45
|
| Receiver Other I/O |
4x USB-A Input/Output
|
Standards
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
150' / 45.7 m (via Cat 5e/6)
180' / 54.9 m (via Cat 6a/7) |
| Video Format |
VGA :
2048 x 1536 |
| Supported Cable Types |
Cat 5e/6/6a/7
|
Power
| Transmitter Power I/O |
1x Barrel Input
|
| Receiver Power I/O |
1x Barrel Input
|
| PoE Support |
No
|
| Transmitter Power Consumption |
(10 W)
|
| Receiver Power Consumption |
(10 W)
|
General
| Certifications |
CE, RoHS, TAA
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Transmitter Dimensions |
5.2 x 3.1 x 1.1" / 131 x 78 x 28 mm
|
| Receiver Dimensions |
5.2 x 3.1 x 1.1" / 131 x 78 x 28 mm
|
