Description
Network Technologies 4K6GB-4LC Overview

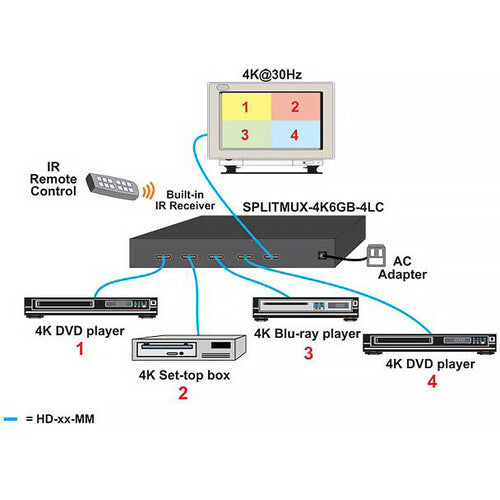

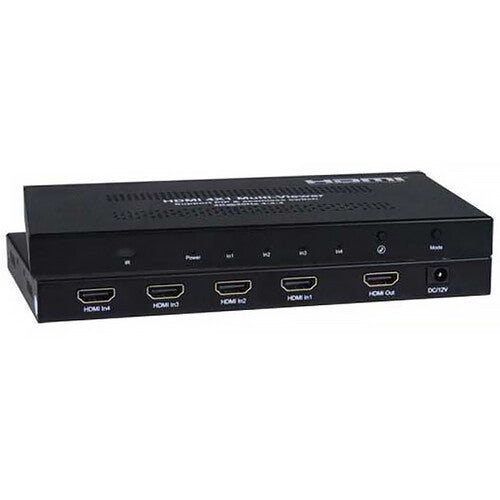

The SPLITMUX HDMI Dual-Screen Splitter/Multiviewer from Network Technologies is designed to simultaneously display video originating from multiple HDMI sources on a single monitor, in real time, and with up to 36-bit Deep Color supported. Equipped with four HDMI inputs and one HDMI output, the versatile device is HDCP 1.4/2.2 compliant, it supports a video bandwidth of 6.75 Gb/s, and it can display these video sources in dual, PiP (Picture in Picture), or full screen mode. The unit comes with mounting ears, a 12 VDC power supply, and an IR remote control.
Additional Details

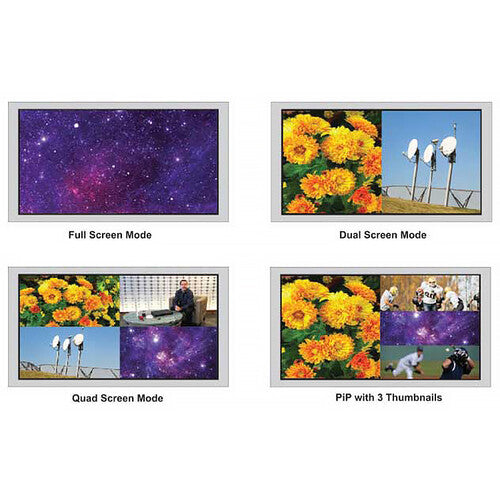

- Dual, Quad, Picture in Picture, and Full-Screen modes
- Supports 4-channel HDMI signal screen segmentation; Four frames can be displayed using thirteen different modes
- Control via front panel buttons and included IR remote
- Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers, and HDTV tuners
- Dolby, DTS, and LPCM digital audio are supported
- Supports maximum audio sampling rate of 48 kHz
- Output resolutions: 2160p, 1080p, 1080i, 720p, 576p, 576i, and 480p
Items Included
- Network Technologies SPLITMUX 4K HDMI Quad-Screen Multiviewer
- 12 VDC Power Supply
- IR Remote
- 2 x Mounting Ear
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies 4K6GB-4LC Specs
Key Specs
| Inputs |
4 x HDMI Female
|
| Embedded Audio |
HDMI Input: 8-Channel
|
| Outputs |
1x HDMI Female
|
| Video Format |
HDMI
3840 x 2160: 24/25/29.97/30 fps 1920 x 1080p: 24/25/29.97/30/59.94/60 fps 1920 x 1080i: 50 fps 1280 x 720p: 24/25/29.97/30/59.94/60 fps 720 x 480p: 59.94/60 fps |
Interfaces
| Inputs |
4 x HDMI Female
|
| Embedded Audio |
HDMI Input: 8-Channel
|
| Outputs |
1x HDMI Female
|
| Other I/O |
No
|
Standards
| HDR Support |
Yes
|
| HDCP Support |
Yes: Version 1.4/2.2
|
| EDID Support |
Yes
|
| Audio Decoding |
DTS Digital Surround, Dolby Digital, LPCM
|
Transmission
| Video Format |
HDMI
3840 x 2160: 24/25/29.97/30 fps 1920 x 1080p: 24/25/29.97/30/59.94/60 fps 1920 x 1080i: 50 fps 1280 x 720p: 24/25/29.97/30/59.94/60 fps 720 x 480p: 59.94/60 fps |
| Audio Format |
Unspecified Digital Signal
|
| Audio Channels |
7.1-Channel
|
Power
| Power I/O |
1x Barrel Output
|
| Power Consumption |
Power Supply: 100 to 240 VAC (8 W)
|
General
| Certifications |
CE, FCC, RoHS
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 5 to 90% Humidity
|
| Dimensions |
7.5 x 4.4 x 0.7" / 190.4 x 113.0 x 17.0 mm
|
| Weight |
1.1 lb / 484 g
|
