Description

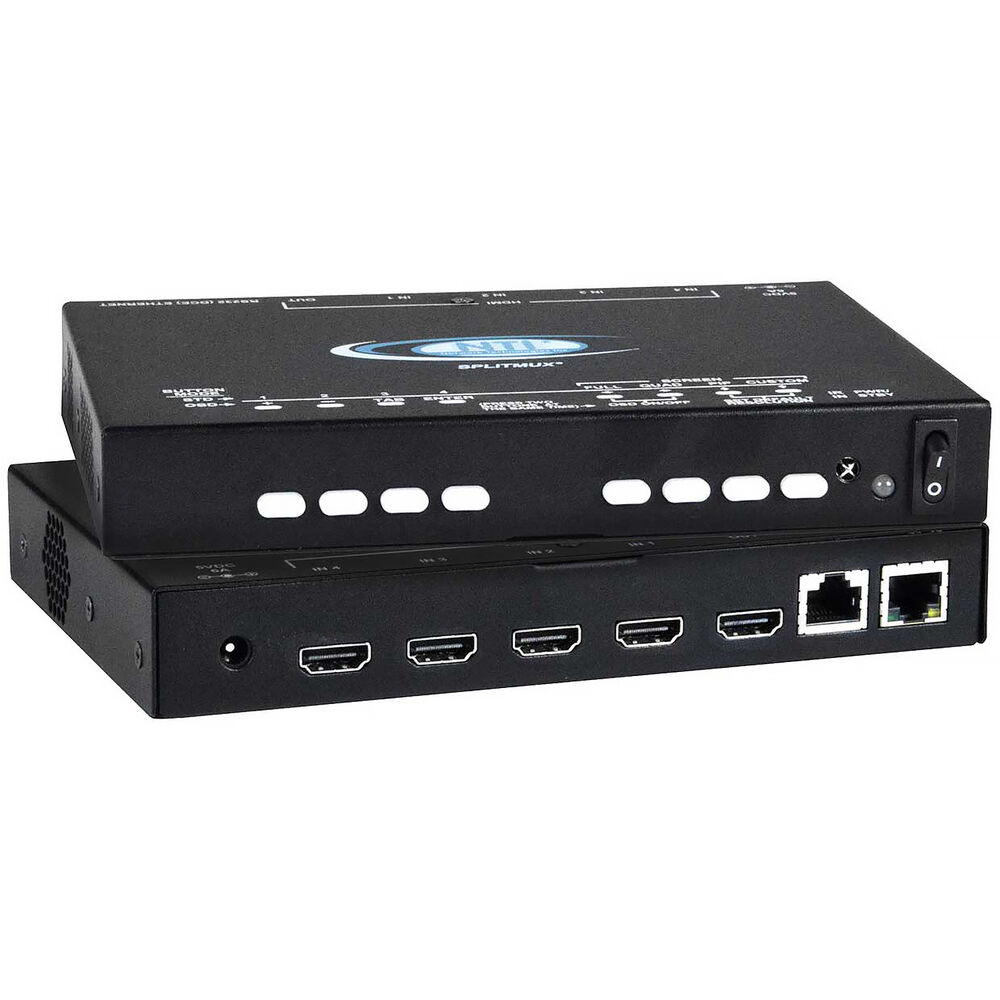

Network Technologies HD-4RT Overview
The SPLITMUX HDMI Quad-Screen Rackmount Multiviewer from Network Technologies is a real-time 1080p video multiviewer encased in a sturdy desktop enclosure. It can display up to four different HDMI/DVI sources on a single monitor, allowing users to arrange and position any of the four quadrants in any desired order. It supports quad, PiP (Picture in Picture), full-screen, and custom modes.
Additional Details
- xvYCC, sRGB, and YCbCr color support
- Four-channel non-mixing or one-channel mixing stereo with 16/20/24-bit uncompressed PCM audio
- Fluid, real-time video performance with 60 fps in all four quadrants
- Zoom, pan, and crop the image from any source to focus on key areas
- Switch audio independently of video from connected HDMI sources
- Multiple audio sources can be simultaneously active in any display mode or preset layout
- Adjustable audio gain with VU level indicators for each input channel
- A customized text label can be added for each video window to provide easy input identification (UMD)
- Any DVI source or display can be connected by using an optional DVI cable
- Control via Ethernet, RS-232 serial port, on-screen display (OSD), front panel buttons, or IR remote
- Cascade multiviewers to display video from any number of video sources on one screen
- Backup and restore multiviewer configurations
- Supported output resolutions can be selected or set to auto-detect optimal resolution from the monitor's EDID
- Supports digital HDMI devices, such as DVD/Blu-ray players, satellite receivers, and HDTV tuners
- Supported protocols: HTTP, HTTPS, TCP/IP, DHCP, UDP, ARP, IPV4
Items Included
- Network Technologies SPLITMUX HDMI Quad-Screen Desktop Multiviewer
- Power Cord
- DB9 Female to RJ45 Female Adapter
- Cat 5e Super-Flat Patch Cable
- IR Remote
- 2 x AAA Battery
- CD with NTI Discovery Tool
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies HD-4RT Specs
Key Specs
| Inputs |
4 x HDMI Female
|
| Embedded Audio |
HDMI
|
| Outputs |
1x HDMI Female
|
| Video Format |
HDMI
2048 x 1080: 60 fps 1920 x 1080p: 60 fps |
Interfaces
| Inputs |
4 x HDMI Female
|
| Embedded Audio |
HDMI
|
| Outputs |
1x HDMI Female
|
| Other I/O |
1x RJ45 (Gigabit Ethernet)
1x RJ45 (RS-232) |
Standards
| HDR Support |
No
|
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
| OS Compatibility |
Windows
macOS Linux |
Transmission
| Video Format |
HDMI
2048 x 1080: 60 fps 1920 x 1080p: 60 fps |
| PC Resolutions |
DVI, HDMI: 1920 x 1200
|
| Audio Format |
Unspecified Digital Signal
|
| Audio Channels |
4.0-Channel
|
Power
| Power I/O |
1x Barrel Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC (10 W)
|
General
| Certifications |
CE, RoHS, TAA
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 17 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 17 to 90% Humidity
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 278805.1 |
| 3-5 | ₹ 275960.15 |
| 5-10 | ₹ 270270.25 |
| 10+ | ₹ 264580.35 |
Bulk discount will be automatically applied during checkout based on quantity.
