Description

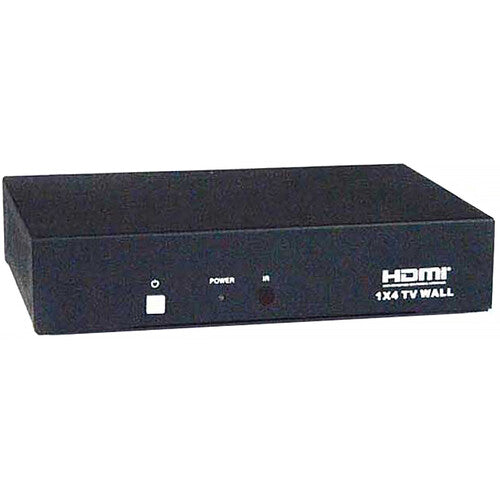

Network Technologies VWC-4HDLC Overview

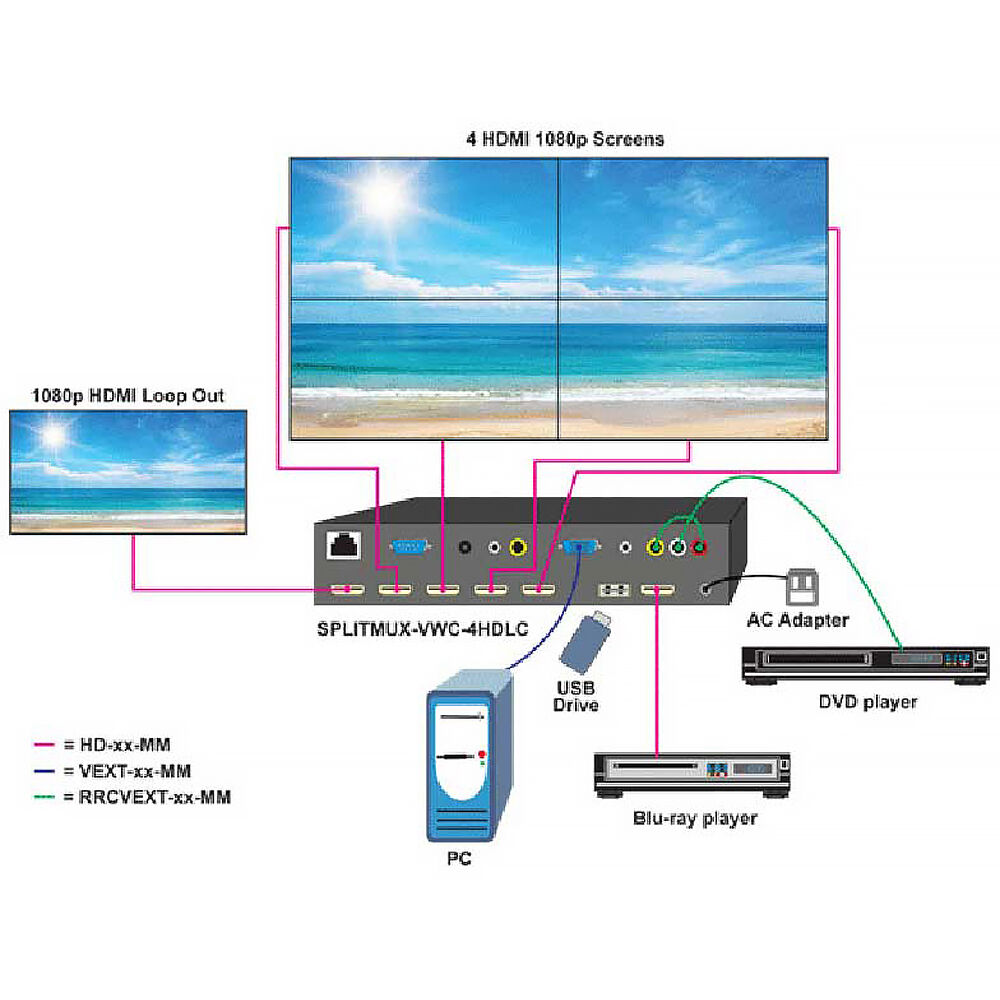

The SPLITMUX 2 x 2 Multi-Format HD Video Wall Controller from Network Technologies facilitates video wall presentations across four 1080p HDMI displays from HDMI, VGA, or composite sources. The versatile device also works as a video splitter, converter, and switch, and a second, optional unit may be cascaded to create a nine-screen 3 x 3 video wall.
Additional Details
- Supports video wall configurations with displays in landscape or portrait orientations
- Landscape (horizontal) orientation: 1 x 2, 1 x 3, 1 x 4, 2 x 1, 3 x 1, 4 x 1, 2 x 2
- Portrait (vertical) orientation: 1 x 2, 1 x 3, 1 x 4
- Cascade two processors to create video walls with up to nine screens: 2 x 3, 3 x 2, 2 x 4, 4 x 2, and 3 x 3
- Versatile bezel compensation ability accommodates any screen frame width
- Independent video in to video out resolution
- Supports HDTV resolutions to 1080p
- HDMI features supported: x.v.Color, sYCC601, Adobe RGB, and Adobe YCC601
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 225 MHz (6.75 Gb/s)
- Lip Sync
- HDCP compatible
- Fluid, real-time video performance at 60 fps
- Integrated USB media player allows playback of content from a portable USB drive
- Control the video wall controller through Ethernet, RS-232 serial port, or IR remote
- Ideal for a wide range of digital signage applications, including retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more
Items Included
- Network Technologies SPLITMUX 2 x 2 Multi-Format HD Video Wall Controller
- 12 VDC, 2A Power Adapter
- IR Receiver Cable
- Video Wall Remote
- RS-232 Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies VWC-4HDLC Specs
Key Specs
| Inputs |
1 x HDMI Female
1 x 3RCA (Composite) Female 1 x DE-15/DB-15 (VGA) Female 1 x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Embedded Audio |
HDMI: 8-Channel
|
| Outputs |
4x HDMI Female
1x HDMI(Looping) Female 1x 1/8" / 3.5 mm TRS (Stereo Analog) Female 1x RCA (S/PDIF) Female |
| Video Format |
HDMI
1920 x 1080p: 50/60 fps 1920 x 1080i: 50/60 fps 1280 x 720p: 50/60 fps 640 x 480p: 60 fps |

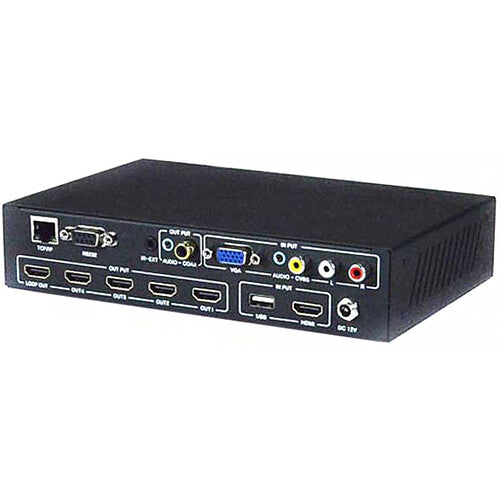

Interfaces
| Inputs |
1 x HDMI Female
1 x 3RCA (Composite) Female 1 x DE-15/DB-15 (VGA) Female 1 x 1/8" / 3.5 mm TRS (Stereo Analog) Female |
| Embedded Audio |
HDMI: 8-Channel
|
| Outputs |
4x HDMI Female
1x HDMI(Looping) Female 1x 1/8" / 3.5 mm TRS (Stereo Analog) Female 1x RCA (S/PDIF) Female |
| Other I/O |
1x USB-A Input
1x RJ45 (10/100 Mbps Ethernet) Input/Output 1x DE-9/DB-9 (RS-232) Input/Output |
Standards
| HDR Support |
Yes
|
| HDCP Support |
Yes
|
| EDID Support |
Yes
|
| Audio Decoding |
DTS Digital Surround, DTS-HD Master Audio, Dolby Digital, Dolby TrueHD
|
Transmission
| Video Format |
HDMI
1920 x 1080p: 50/60 fps 1920 x 1080i: 50/60 fps 1280 x 720p: 50/60 fps 640 x 480p: 60 fps |
| PC Resolutions |
DVI, HDMI: 1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz 1360 x 768 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 720 at 60 Hz 1024 x 768 at 60 Hz 800 x 600 at 60 Hz |
| Maximum Multiple Display Configuration |
2 x 2
|
| Audio Format |
Unspecified Digital Signal
|
| Audio Channels |
7.1-Channel
|
| Bandwidth |
225 MHz
|
| Maximum Data Rate |
6.75 Gb/s
|
Power
| Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| Power Consumption |
(7.5 W)
|
General
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Material of Construction |
Metal
|
| Dimensions |
9.8 x 4.6 x 1.3" / 250.0 x 118.0 x 32.0 mm
|
| Weight |
2.3 lb / 1050 g
|
