Description
Network Technologies USBHD-4RT Overview

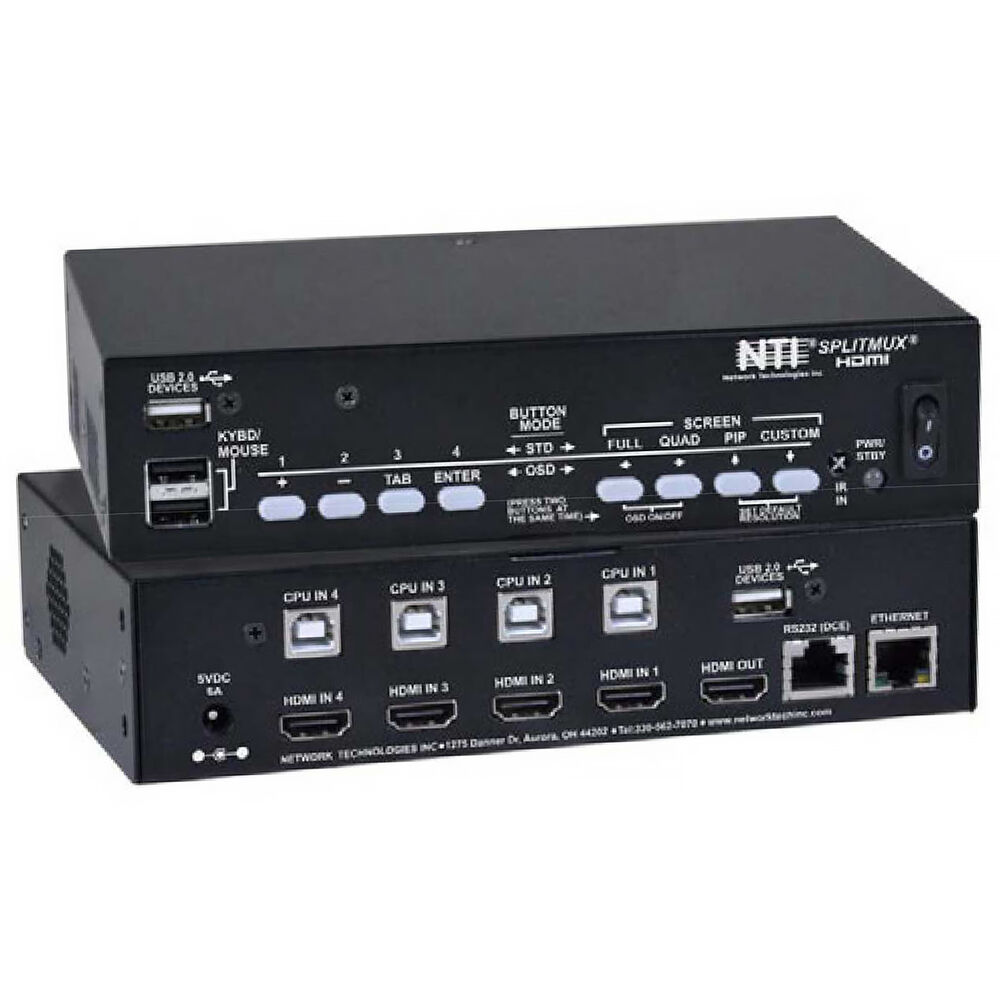

The SPLITMUX HDMI Quad-Screen Multiviewer with Built-In KVM Switch from Network Technologies is a real-time 2K video multiviewer encased in a sturdy desktop enclosure. The HDCP 1.2-compliant device can display up to four different HDMI/DVI sources on a single monitor, allowing users to arrange and position any of the four quadrants in any desired order. It supports quad, PiP (Picture in Picture), full-screen, and custom modes.
Additional Details
- Quad, Picture-in-Picture, Full Screen, and Custom display modes
- The size, position, and selection of any or all windows are customizable
- Two- and three-source viewing is possible
- Maintain input aspect ratio without stretching
- Layer display windows and adjust the transparency of each video source display

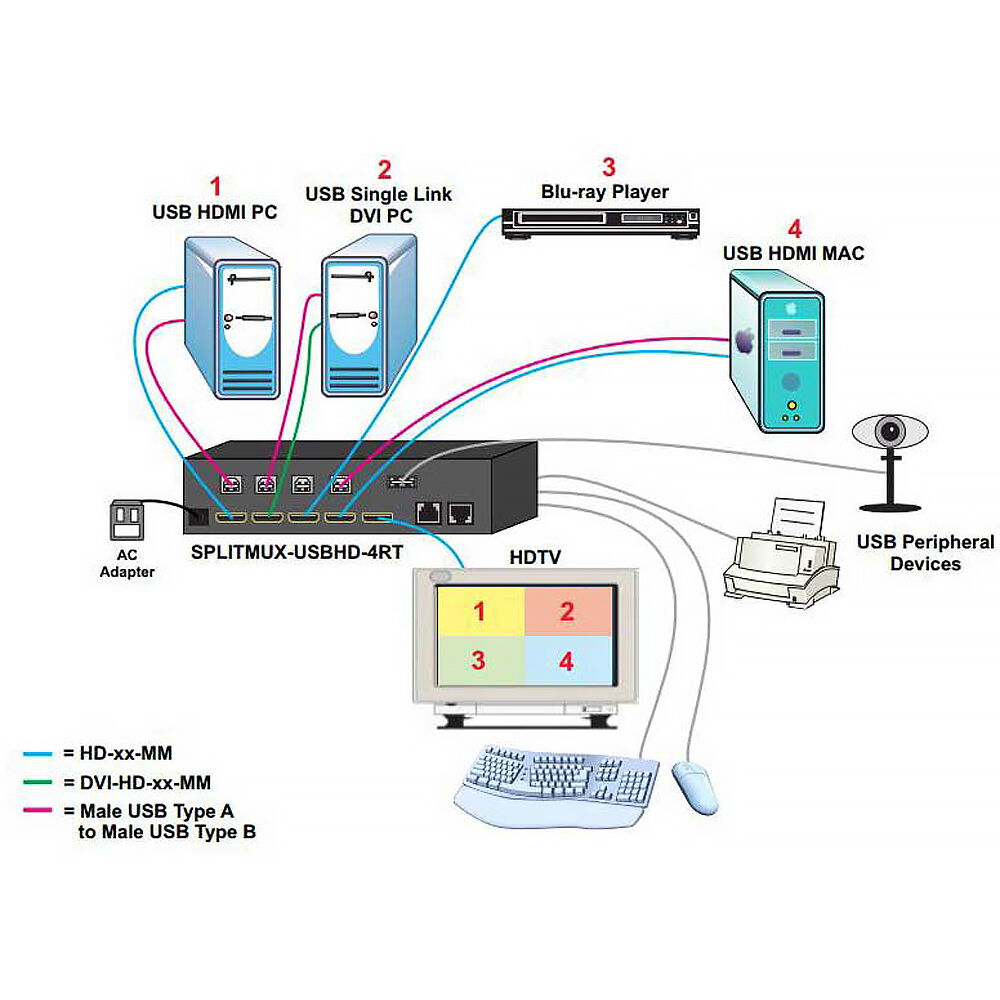

- Switch one of the four attached computers to a shared USB keyboard and mouse for operation
- Supports 2048 x 1080, HDTV resolutions to 1080p, and computer resolutions to 1920 x 1200
- Independent video in to video out resolution
- Four-channel non-mixing or one-channel mixing stereo with 16/20/24-bit uncompressed PCM audio
- Bandwidth up to 165 MHz
- Fluid, real-time video performance with up to 60 fps in all four quadrants
- Zoom, pan, and crop the image from any source to focus on key areas
- Switch audio independently of video from connected HDMI sources
- Multiple audio sources can be simultaneously active in any display mode or preset layout
- Adjustable audio gain with VU level indicators for each input channel
- A customized text label can be added for each video window to provide easy input identification (UMD)
- Control via Ethernet, RS-232, keyboard commands, on-screen display (OSD), front panel buttons, or IR remote
- Built-in two-port USB hub to allow switching devices between connected computers
- Compliant with USB 2.0 (high-speed and low/full-speed) standards
- Cascade multiviewers to display video from any number of video sources on one screen
- Backup and restore multiviewer configurations
- Supported output resolutions can be selected or set to auto-detect optimal resolution from the monitor's EDID
Items Included
- Network Technologies SPLITMUX HDMI Quad-Screen Multiviewer with Built-In KVM Switch
- Power Adapter & Power Cord
- DB9 Female to RJ45 Female Adapter
- Cat 5e Super-Flat Patch Cable
- IR Remote
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies USBHD-4RT Specs
Key Specs
| Inputs |
4 x HDMI Female
|
| Embedded Audio |
HDMI
|
| Outputs |
1x HDMI Female
|
| Video Format |
HDMI
2048 x 1080: 60 fps 1920 x 1080p: 60 fps |
Interfaces
| Inputs |
4 x HDMI Female
|
| Embedded Audio |
HDMI
|
| Outputs |
1x HDMI Female
|
| Other I/O |
1x RJ45 (Gigabit Ethernet)
1x RJ45 (RS-232) 4x USB-B 2.0 4x USB-A 2.0 |
Standards
| HDR Support |
No
|
| HDCP Support |
Yes: Version 1.2
|
| EDID Support |
Yes
|
| OS Compatibility |
Windows
macOS Linux |
Transmission
| Video Format |
HDMI
2048 x 1080: 60 fps 1920 x 1080p: 60 fps |
| PC Resolutions |
DVI, HDMI: 1920 x 1200
|
| Audio Format |
Unspecified Digital Signal
|
| Audio Channels |
4.0-Channel
|
Power
| Power I/O |
1x Barrel Input
|
| Power Consumption |
Power Supply: 110 to 220 VAC (20 W)
|
General
| Certifications |
CE, RoHS, TAA
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 17 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 17 to 90% Humidity
|
| Dimensions |
5.0 x 7.4 x 1.8" / 126.0 x 187.0 x 45.0 mm
|
