Description
- 54 to 860 MHz Output Frequency Range
- Supports EAS and ASP
- Suitable for Security Cameras
The AM-60-860 AM Series Agile Modulator from Blonder Tongue is an RF modulation system for analog CATV applications. It supports an output frequency range of 54 to 860. In addition, it features Emergency Alert System (EAS) and Secondary Audio Programming (SAP).
- Sub Channel capability for Remote Origination applications
- Suitable for school security camera applications
In the Box

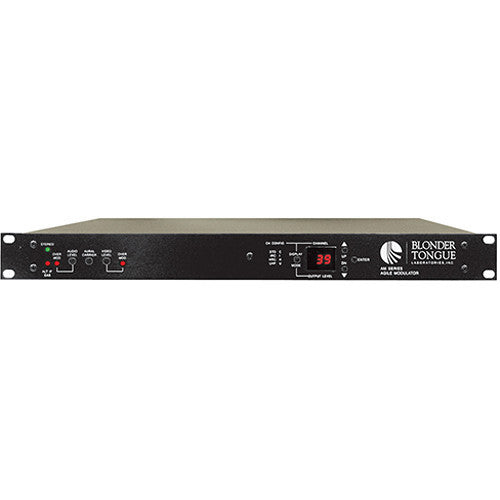

Blonder Tongue AM-60-860 AM Series Agile Modulator
- Limited 3-Year Warranty
| Connectors | |
|---|---|
| Input | RF Connector 1 x F type female Impedance: 75 ohm Return Loss: 18 dB return loss Video Input Level: 0.7 V peak-to-peak - 87.5% depth of modulation Video-to-RMS Hum Ratio: 65 dB peak-to-peak Signal-to-Noise Ratio: 58 dB - weighted at 4 MHz bandwidth Differential Gain: 2% Differential Phase: 1� Over-modulation Indicator: 87 to 92% Mono Audio 1 x Terminal strip Impedance: 600 ohm, balanced Level: 0.5 to 0.4 V peak-to-peak Frequency Range: 50 Hz to 15 kHz Frequency Response: � 0.5 dB Total Harmonic Distortion: 1% at 25 kHz deviation Signal-to-Noise Ratio: 59 dB Over-modulation Threshold: 25 � 2 kHz peak deviation |
| Output | RF Connector 1 x F type female Impedance: 75 ohm Return Loss: 12 dB return loss Frequency Range: 54 to 860 MHz NTSC Channel Modes: UHF, VHF, CATV (standard, HRC, IRC) Power Level: +60 dBmV Power Level Range: +50 to +60 dBmV - in 0.2 dB increments Video Flatness: fv-0.5 to fv+4.2 MHz - 1.0 dB peak-to-valley Carrier-to-Noise: (In Channel): 63 dB Broadband Noise (4 kHz bandwidth): -77 dBc at +45 / 60 dBmV output level Spurious Outputs: -63 dBc Aural / Visual Carrier Ratio: -15 �5 dB 4.5 MHz Aural Inter-carrier Frequency Tolerance: �150 Hz; 32 to 122�F / 0 to 50�C Channel Selectivity: Adjacent Aural and Below: -40 dB Adjacent Picture and Above: -40 dB �5 dB Visual Carrier Frequency Tolerance: Standard Channels: �5.0 kHz; 32 to 122�F / 0 to 50�C FCC Aeronautical Channels: �2.5 kHz; 32 to 122�F 0 to 50�C Intermediate Frequency (IF) Input / Output Connector: F type female / : F type female Aural Frequency: 41.25 MHz Visual Frequency: 45.75 MHz Composite IF Output: Aural Carrier Level: +20 dBmV Visual Carrier Level: +35 dBmV Input / Output Impedance: 75 ohm Input / Output Return Loss: 16 / 15 dB EAS Alternative IF: Connector: F type female Input Level: +38 dBmV at 45.75 MHz Switch Isolation: > 60 dB |
| General | |
|---|---|
| Alarms / Monitoring / Control | Front-Panel Indicators Channel / Mode / RF Output: 3-digit LED display Video Over-modulation: Red LED Audio Over-modulation: Red LED SAP Audio Over-modulation: Red LED EAS / Alternative IF: Red LED Stereo: Green LED Front-Panel Controls Channel / Mode / RF Output: Navigation key-pad Video Level: Potentiometer Audio Level: Potentiometer Aural Carrier Level: Potentiometer SAP Audio Level: Potentiometer |
| Power Requirement | 117 VAC �10% at 60 Hz - fuse: 0.40 A |
| Power Consumption | 28 W maximum |
| Operating Temperature | 32 to 122�F / 0 to 50�C |
| Storage Temperature | -13 to 158�F / -25 to 70�C |
| Humidity | 0 to 95% RH at 95�F (35�C) maximum, non-condensing |
| Dimensions | 19 x 14.3 x 1.8" / 483 x 362 x 44 mm |
| Weight | 7 lb / 3.2 kg |
| Packaging Info | |
|---|---|
| Package Weight | 8.2 lb |
| Box Dimensions (LxWxH) | 20.9 x 20.0 x 2.9" |
