Description
- Encodes to MPEG-2 for QAM Delivery
- 2 HD-SDI and 2 HDMI Digital Inputs
- 4 Component and 4 Composite Inputs
- 4 QAM Outputs and RF Test Port
- Separate Digital and Analog Audio Inputs
- Emergency Alert System Interface
- EIA-708 and EIA-608 Closed Captioning
- Web Server and Ethernet for Browser GUI

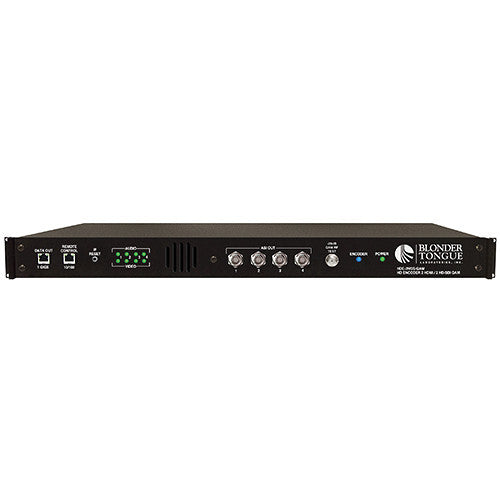

The HDE-2H/2S-QAM MPEG-2 Encoder from Blonder Tongue will encode HDMI, HD-SDI, Component, or Composite video sources along with audio in MPEG-2 D format for delivery over QAM. It features two HDMI, two HD-SDI, four component, and four composite inputs as well as separate digital and analog audio inputs to accompany the analog video inputs. There are four QAM outputs and an additional RF port for testing.
- Multiplexes up to four inputs programs in any of the following combinations:
- 1:1: One program per QAM channel
- 2:1: Two programs per QAM channel, not exceeding 38.8 Mbp/s
- 3:1: Three programs per QAM channel, not exceeding 38.8 Mbp/s
- 4:1 Four programs per QAM channel, not exceeding 38.8 Mbp/s
- Supports EIA-708 closed captioning through SDI and HDMI, and EIA-608 closed-captioning through the analog inputs
- Provides +52 dBmV QAM output level for four combined channels
- Equipped with an Emergency Alert System (EAS) interface
- Front-panel RF test port for testing and monitoring of QAM output without service interruption
- Ethernet and Web server connection allows the system to be operated remotely using a Web browser
- Supports real-time Dolby Digital audio encoding
- Supports user-defined PSIP configuration
| Input | |
|---|---|
| HDMI | Connectors: 2 x HMDI Supported Resolutions: 480i, 720p, and 1080i HDCP Support: No Audio Support: Embedded PCM and pass-through Dolby Digital only |
| HD-SDI | Connectors: 2 x BNC female Standard: SMPTE 292M Supported Resolutions: 480i, 720p, and 1080i Audio Support: Embedded PCM and pass-through Dolby Digital only |
| Component | Video Connectors: 4 x Sets of 3 x RCA female Supported Resolutions: 480i, 720p, and 1080i Aspect Ratios: 4:3 and 16:9 Analog Audio Connectors: 4 x Sets of 2 x RCA female stereo pairs - shared with Composite Digital Audio Connectors: 4 x RCA female - shared with Composite |
| Composite | Video Connectors: 4 x RCA female Analog Audio Connectors: 4 x Sets of 2 x RCA female stereo pairs - shared with Component Digital Audio Connectors: 4 x RCA female - shared with Component |
| Emergency Alert System (EAS) | Connectors: 3x RCA female (Composite video and stereo analog audio) Trigger Mechanism: 5 to 12 VDC and dry contact closure (terminal strip) |
| Encoding Profile - Video | Output Format: MPEG-2 HD MP@ML; ISO 13818-2 Chroma Sub-sampling: 4:2:0 Supported Resolutions: 480i, 720p, and 1080i Supported Frame Rates: 29.97, 59.97 (720p only) Aspect Ratios: 4:3 and 16:9 GOP Structure: I and P frames (user selectable) Transport Rate: Variable (user selectable) Video Rate: Variable (user selectable) Video Pre-filter: Variable (user selectable) Color Space: YCbCr and RGB |
| Encoding Profile - Audio | Output Format: Dolby Digital Sampling Rate: 48 kHz Bit Rate: Vaiable: 96 to 448 Kbps (user selectable) |
| Closed Captioning | HD-SDI: EIA-708 - embedded in HD-SDI input Component: EIA-608 Composite: EIA-608 |
| Output | |
|---|---|
| QAM | Connector: 1 x F type female(rear panel; up to 4 x QAM channels combined) Modulation: QAM 16, 32, 64, 128, and 256 Standards: ITU-T J.83; Annex A and B DVM Symbol Rate: Variable; up to 7 MS/Symbol/sec (MBaud) Frequency Range: 54 to 1002 MHz Tuning: CATV channel selectable (channel 2 to 158) Channel's Bandwidth: 24 MHz(4 x adjacent 6 MHz) RF Level (4 channel combined): +42 to +52 dBmV, 1 dB increment RF Level (2 channel combined): +42 to +56 dBmV, 1 dB increment RF Level Accuracy: � +1 dB Frequency Tolerance: �0.5 kHz at 77�F (25�C) Frequency Stability: �5 kHz over 32 to 122�F (0 to 50 �C) Amplitude Flatness: �0.25 dB (over 6 MHz) Phase Noise: -98 dBc at 10 kHz Spurious: -57 dBc Broadband Noise: -70 dBc at +52 dBmV output level, 5.5 MHz bandwidth Impedance: 75 ohm Spectral Inversion: Auto Recognition Carrier Suppression: 45 dB Return Loss: 14 bB typical Signal-to-Noise Ratio: 40 dB typical MER: 40 dB typical I/Q Phase Error: < 1� I/Q Amplitude Imbalance: < 1% |
| ASI | Connectors: 4 x BNC female Format: DVB-ASI Standard: ETSI EN 50083-9 |
| Ethernet | Connector: 1 x RJ-45 Standard: 1000Base-T UDP/RTP: Supported (user selectable) Address Assignment: 4 x IPv4 addresses and port numbers (user selectable) |
| Alarms/Monitoring/Control | |
|---|---|
| Local Monitoring | 8 x Input status LEDs (video 1 to 4 and audio 1 to 4) 1 x Encoder LED 1 x Power LED 1 x F type female RF test port |
| Local Control | 1 x IP reset button |
| Remote Monitoring/Control | GUI-based menu via Web browser |
| General | |
|---|---|
| Power Requirements | 115 to 230 VAC, 50 or 60 Hz (Fuse: 3 A, 250 VDC, Slo Blo) |
| Power Consumption | 60 W |
| Operating Temperature | 32 to 122�F (0 to 50�C) |
| Storage Temperature | -13 to 158�F (-25 to 70�C) |
| Humidity | 0 to 95% relative humidity at 95�F (35�C) maximum, non-condensing |
| Rack Height | 1 RU |
| Dimensions | 19 x 18.1 x 1.8" (483 x 460 x 44 mm) |
| Weight | 8 lb (3.6 kg) |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 20.0 x 20.0 x 3.0" |
