Description

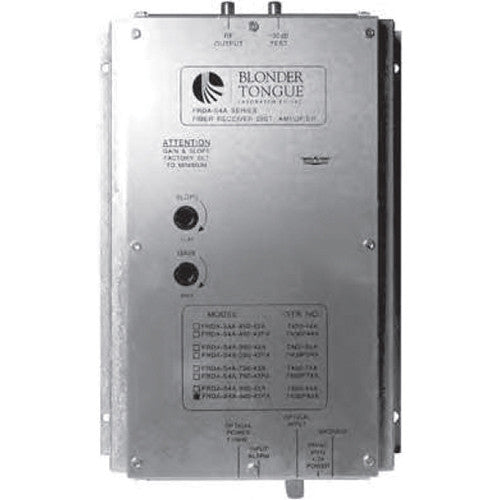

The FRDA-S4A-860-SA Fiber Optic Receiver and RF Distribution Amplifier from Blonder Tongue is a fiber optic receiver module integrated with a broadband distribution amplifier (BIDA). This wall-mount single mode Fiber Receiver has a bandwidth of 47 to 860 MHz and has an operating wavelength of 1310/1550 nm. Fiber connections are made via SC/APC connectors. The FRDA is used as a launch amplifier in a coaxial distribution sub-system fed from a single mode broadband fiber network. The FRDA's optical receiver section provides high quality CNR performance at low optical input levels. This feature permits the use of lower power optical transmitters. The FRDA has an 860 MHz RF bandwidth and power-doubling hybrid amplifier technology to provide high RF output levels with low distortion. The FRDA operates with the FIBT Series of transmitters as well as those from other leading manufacturers.
- LED optical input status indicator
- Gain and slope controls
- High quality CNR performance at low optical input levels
- 860 MHz power-doubling hybrid
- Optical input jack scaled 1V/mW provides measurement capability using DC voltmeter
- Limited 1-Year Warranty
| LED Indicators | 1 x Tri-colored, optical input alarm 1 x Green, power |
| Bandwidth | Optical: 47 to 860 MHz |
| Optical Input | Bandpass Flatness: 1.0 dB P-V |
| Optical Wavelength | 1310/1550 nm |
| Optical Range | -6.0 to +3.0 dBm |
| Carrier to Noise Ratio | @ -1 dBm Input, 40 Ch. Load: 54 dB @ -1 dBm Input, 79 Ch.+ Data: 53 dB @ -1 dBm Input, 110 Ch. Load: 52 dB |
| Input Connector | SC/APC |
| Impedance | All Ports: 75 ? |
| Output Return Loss | 16 dB |
| RF | Gain: 43 dB |
| Test Port | -30, �2 dB |
| Gain Control Range | 10 dB |
| Slope Control Range | 8 dB |
| Channel Loading | 110 |
| Output Level | Low/High: 34/42 dBmV |
| Composite Triple Beat | -60 dB |
| Composite Second Order | -58 dB |
| Hum Modulation | -70 |
| Flatness | � 0.75 dB |
| Hybrid Technology | Power doubling |
| Number of Hybrids | 2 |
| Operating Temperature | -4 to 113�F (-20 to 45�C) |
| Power | 117 VAC, 60 Hz, 28 W |
| Dimensions (W x H x D) | 7.25 x 3.25 x 10.25" (18.42 x 8.26 x 26.04 cm) |
| Weight | 5.75 lb (2.61 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 7.75 lb |
| Box Dimensions (LxWxH) | 17.3 x 10.4 x 3.9" |
