Description
Product Overview

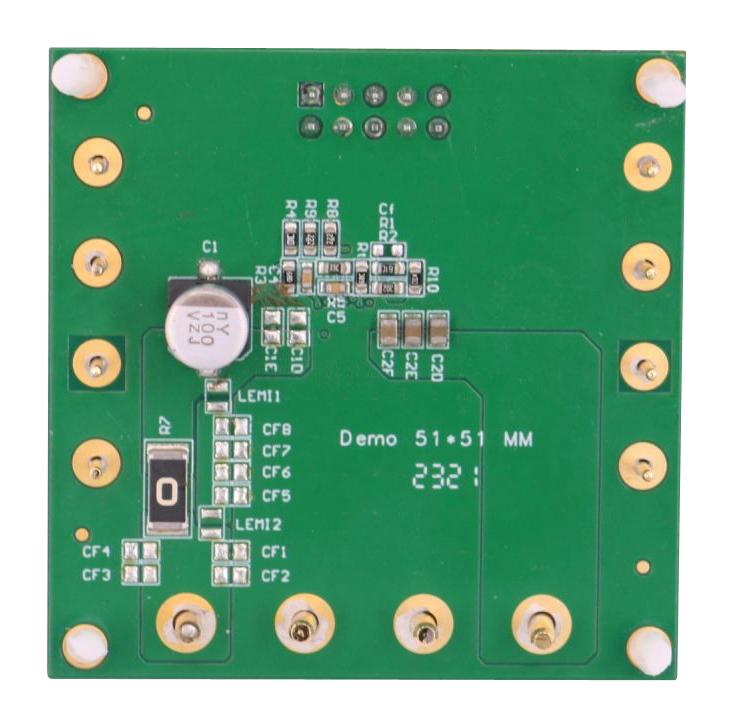

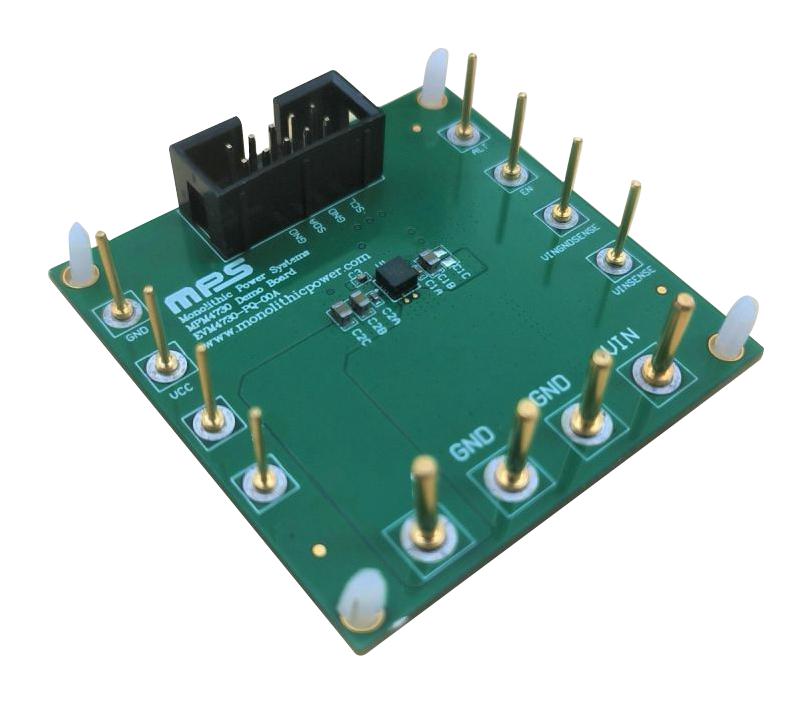

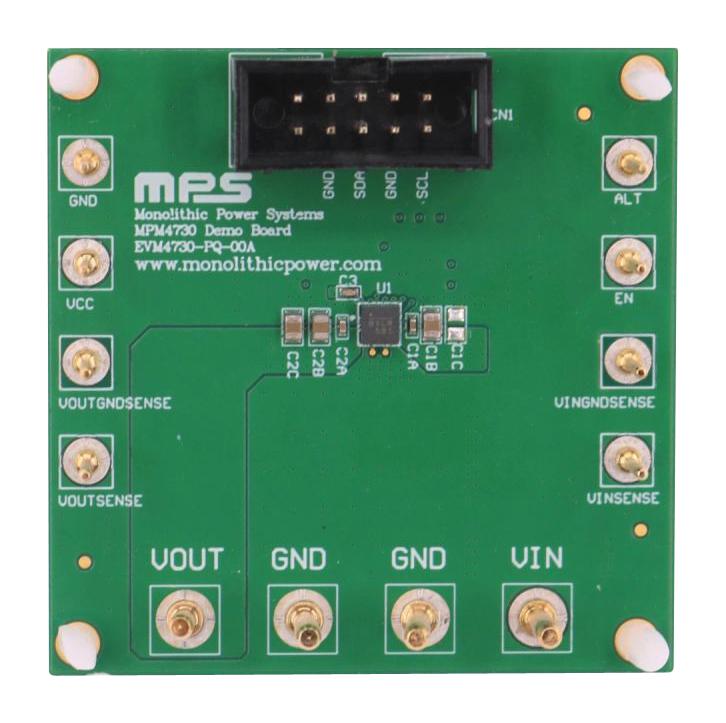

EVM4730-PQ-00A is an evaluation board designed to demonstrate the capabilities of the MPM4730, a 2.8V to 22V input voltage (VIN) range, synchronous, four-switch integrated buck-boost module, with regulated output voltage (VOUT) and high efficiency. The MPM4730 provides automatic pulse frequency modulation (PFM)/pulse-width modulation (PWM) mode or forced PWM mode. The device also provides selectable switching frequency (fSW) and configurable soft start (SS). Full protection features include over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.
- Input voltage (VIN) range from 2.8V to 22V at default configuration
- 15V output voltage (VOUT) at default configuration
- 1A maximum output current (IOUT) at VIN = 2.8V to 22V
- 95.7% typical efficiency at VIN = 12V, VOUT = 15V, IOUT = 1A, fSW = 500KHz
- 500KHz switching frequency (fSW) at default configuration
Notes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | EVM4730-PQ-00A |
| Quantity | Each |
| Technical Data Sheet EN |  |
