MONOLITHIC POWER SYSTEMS (MPS) EVKT-MPM3593 Evaluation Kit, MPM3593GQY-0001-T, Synchronous Step-Down Module, Interface Device, USB Cable

EVKT-MPM3593 is an evaluation kit for the single-phase configuration of the MPM3593. The MPM3593 is a high-frequency synchronous rectified, step-down module with I2C control interface and a multipage one-time programmable memory. It can achieve up to 3A continuous output current with excellent load and line regulation over a wide input supply range. This kit allows for quick evaluation and module configurations through the I2C interface.

• Input voltage range from 3.5 to 45V (EVM3593-QY-00B)
• Output voltage 0.6V to 12V (default: 5V) (EVM3593-QY-00B)
• 3A continuous maximum output current (EVM3593-QY-00B)
• Minimum requirement must be met to use EVKT-MPM3593: Windows XP, 7 or later OS
• Minimum requirement must be met to use EVKT-MPM3593: Net Framework 4.0
• Minimum requirement must be met to use EVKT-MPM3593: PC with a minimum of one available USB port
• Minimum requirement must be met to use EVKT-MPM3593: At least 22.2MB of free space

Contents

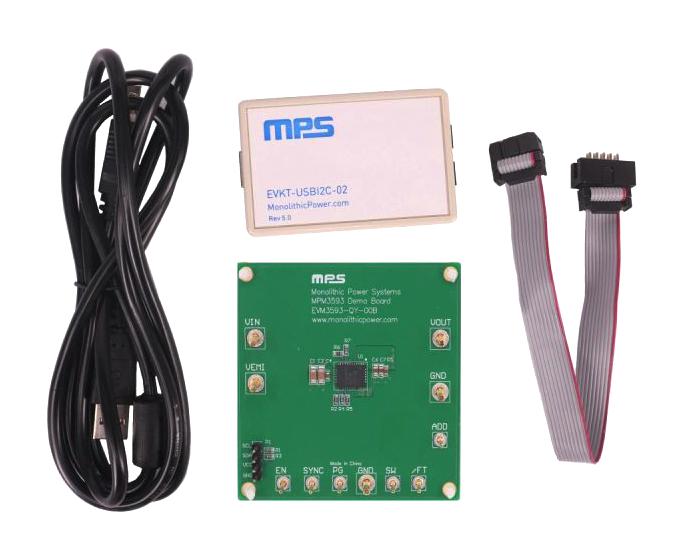

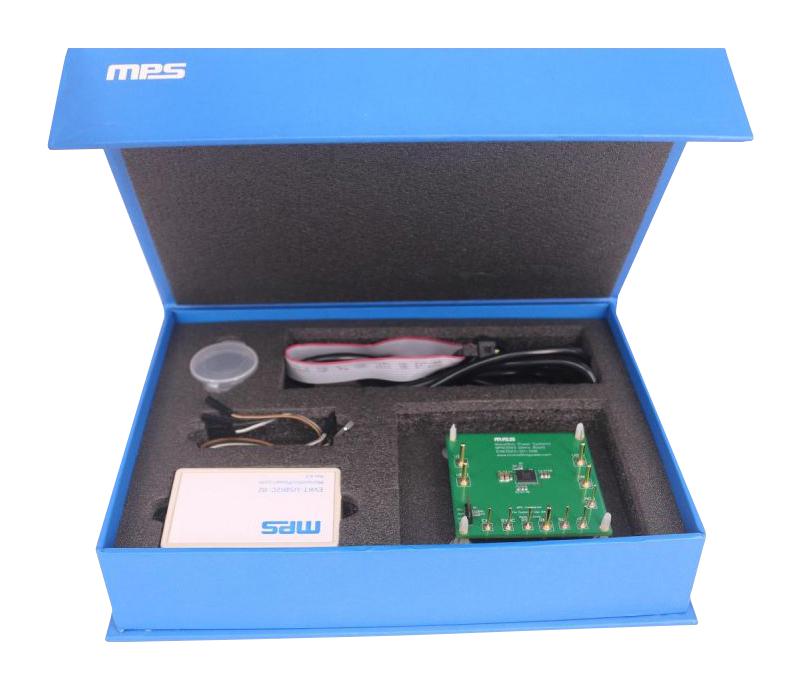

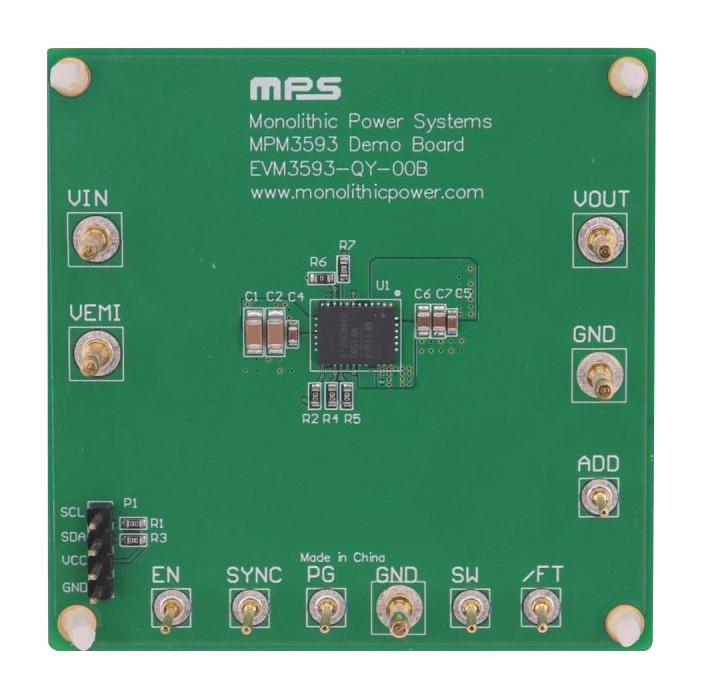

EVM3593-QY-00B (MPM3593GQ evaluation board), EVKT-USBI2C-02-BAG (Includes one USB to I2C communication interface device, one USB cable, and one ribbon cable), MPM3593GQY-0001 x 2, Tdrive-MPM3593 (USB Flash drive that stores the GUI installation file and supplemental documents).

Notes

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
