Description
Product Overview

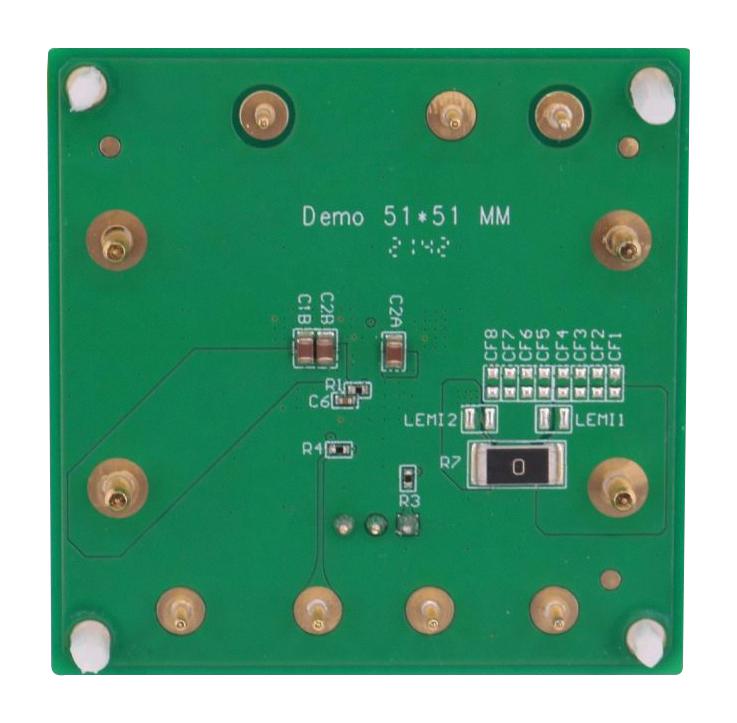

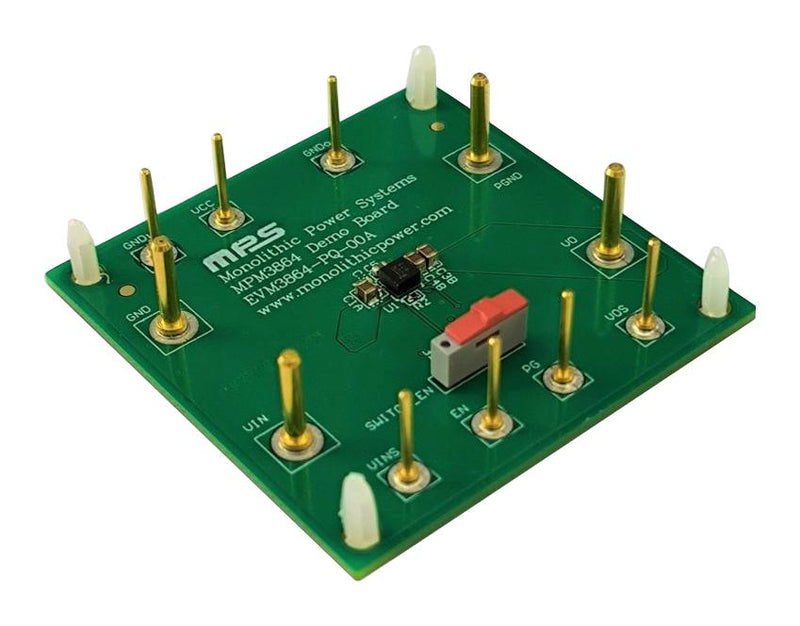

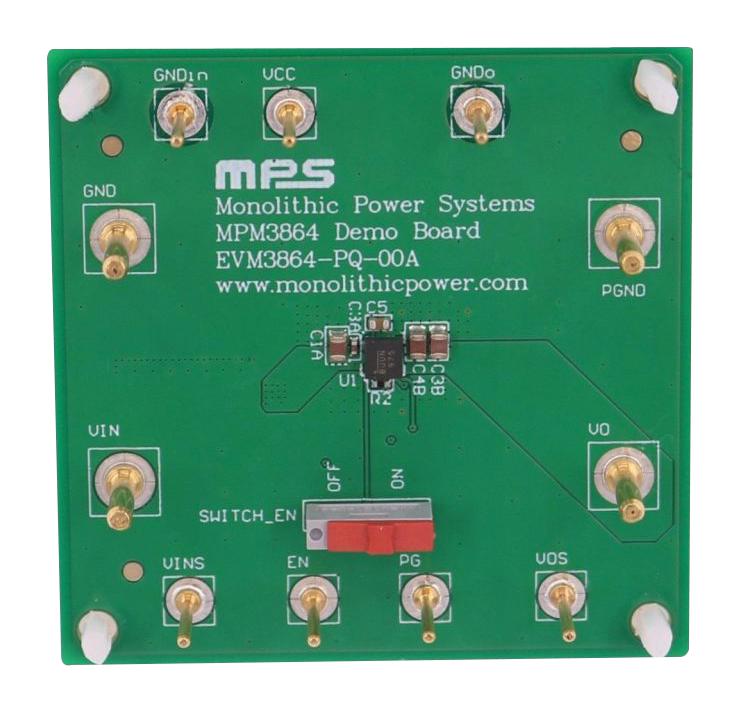

EVM3864-PQ-00A is an evaluation board designed to demonstrate the capabilities of the MPM3864, a fully integrated, synchronous rectified, step-down, DC/DC power module with up to 6A of continuous current. The MPM3864 adopts constant-on-time (COT) control to provide fast transient response, easy loop design, and tight output regulation. Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.
- Input voltage (VIN) range from 2.75V to 7V
- 1.2V output voltage (VOUT)
- 6A maximum output current (IOUT) at VIN = 2.75V to 7V
- 83.4% typical efficiency at VIN = 5V, VOUT = 1.2V, IOUT = 6A, fSW = 1.2MHz
- 1.2MHz switching frequency (fSW) at default configuration
Notes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | EVM3864-PQ-00A |
| Quantity | Each |
| Technical Data Sheet EN |  |
