Description
Product Overview

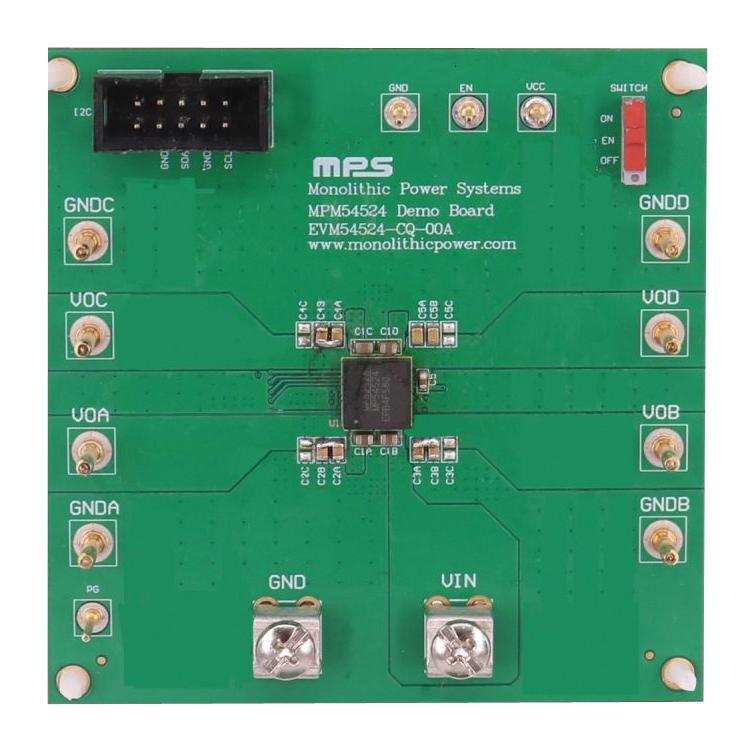

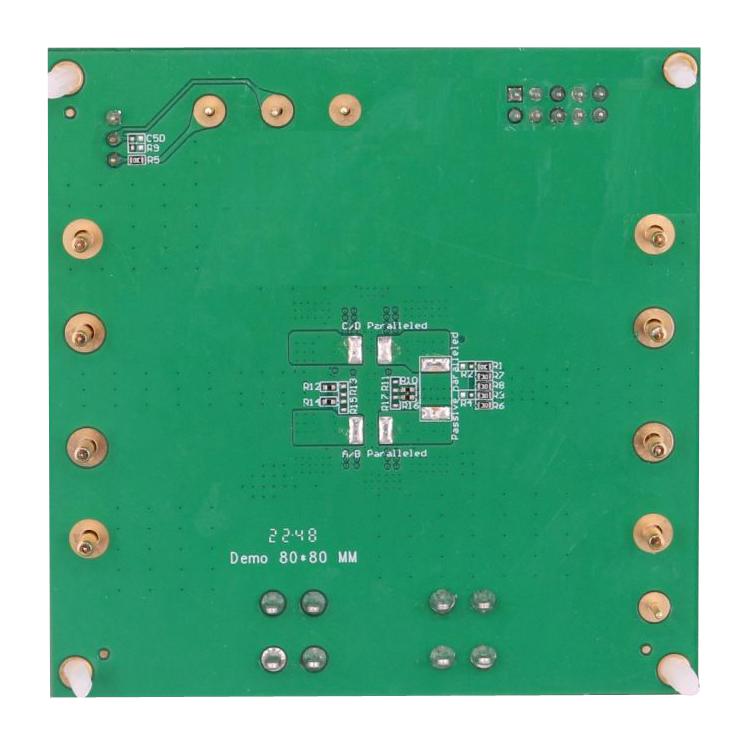

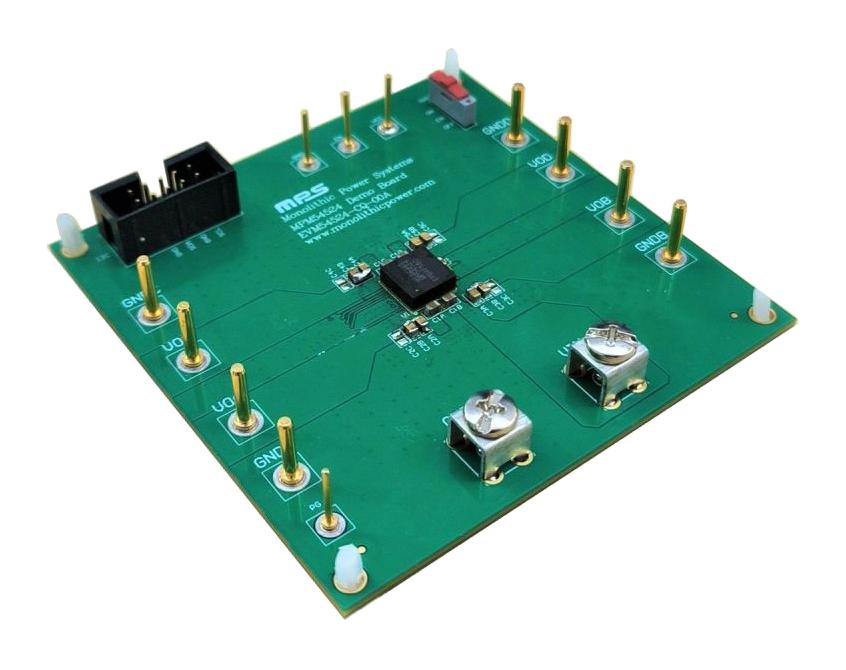

EVM54524-CQ-00A is an evaluation board designed to demonstrate the capabilities of the MPM54524, a 5A quad-output, integrated power module with an I2C interface. The MPM54524 offers a complete power solution with built-in, on/off sequencing control, configurable soft start (SS), compensation, and various protection thresholds. The MPM54524 offers configurable active voltage positioning (AVP) to generate a droop voltage that allows on-demand parallel operation, where four outputs, three outputs paralleled, or two outputs can operate in parallel in any combination without pre-setting the registers. The paralleled channels� current is inherently balanced by the AVP droop voltage. Full protection features include undervoltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), undervoltage protection (UVP), and thermal shutdown.
- Input voltage (VIN) range from 4V to 16V
- 3.34V output voltage (VOUT) at default configuration
- 20A maximum output current (IOUT) at VIN = 4V to 16V
- 92.20% typical efficiency at VIN = 12V, VOUT = 3.34V, IOUT = 5A, fSW = 1MHz, independent channel
- 1MHz switching frequency (fSW) at default configuration
Notes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | EVM54524-CQ-00A |
| Quantity | Each |
| Technical Data Sheet EN |  |
