Description

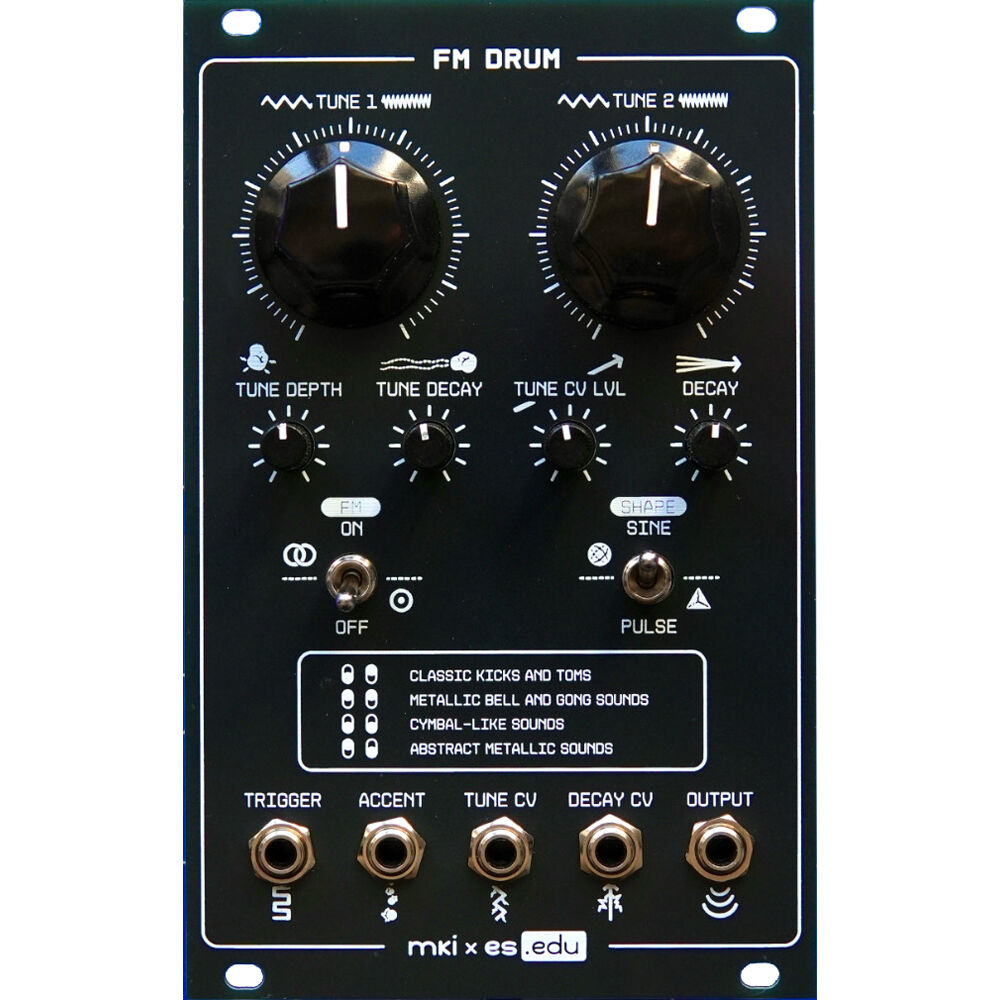

Erica Synths FM DRUM Overview
The Erica Synths EDU DIY FM Drum is a 16 HP build-it-yourself modular Eurorack drum synthesizer, incorporating the fullness and punch of analog synthesis with the futuristic, aggressive style of FM (frequency modulation) synthesis. The kit can create kicks, toms, snares, and many more percussive sounds, both of this world and of undiscovered origins.
Under the name mki x es.EDU, Erica Synths and Moritz Klein created this and other educational DIY kits to teach those with no synth-building experience how to make their own instruments. The instruction manual is a step-by-step guide that not only shows you how to build the module, but also teaches you the fundamental electronics knowledge that makes music synthesis (and many other electronic processes) possible.
Items Included
- Erica Synths EDU DIY FM Drum Eurorack Module (16 HP)
- Power Cord
- Mounting Screws
- Limited 2-Year Manufacturer Warranty (As this is a self-build/DIY kit, manufacturer support is limited)
Additional Resources
Erica Synths FM DRUM Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm Gate Input
2x 1/8" / 3.5 mm CV Input 1x 1/8" / 3.5 mm Trigger Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
35 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
16 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
2x Variable (FM)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm Unbalanced Mono Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm Gate Input
2x 1/8" / 3.5 mm CV Input 1x 1/8" / 3.5 mm Trigger Input |
| Patch Points |
No
|
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
35 mA on +12 V Rail
20 mA on -12 V Rail |
| AC/DC Power Adapter |
Included
|
| Horizontal Pitch |
16 HP
|
| Included Accessories |
Power Cord
|
| Dimensions |
5.1 x 3.2 x 1.4" / 128.5 x 81.2 x 35 mm
|
| Package Weight |
0.435 lb
|
| Box Dimensions (LxWxH) |
8.1 x 4.7 x 1.9"
|
