Description

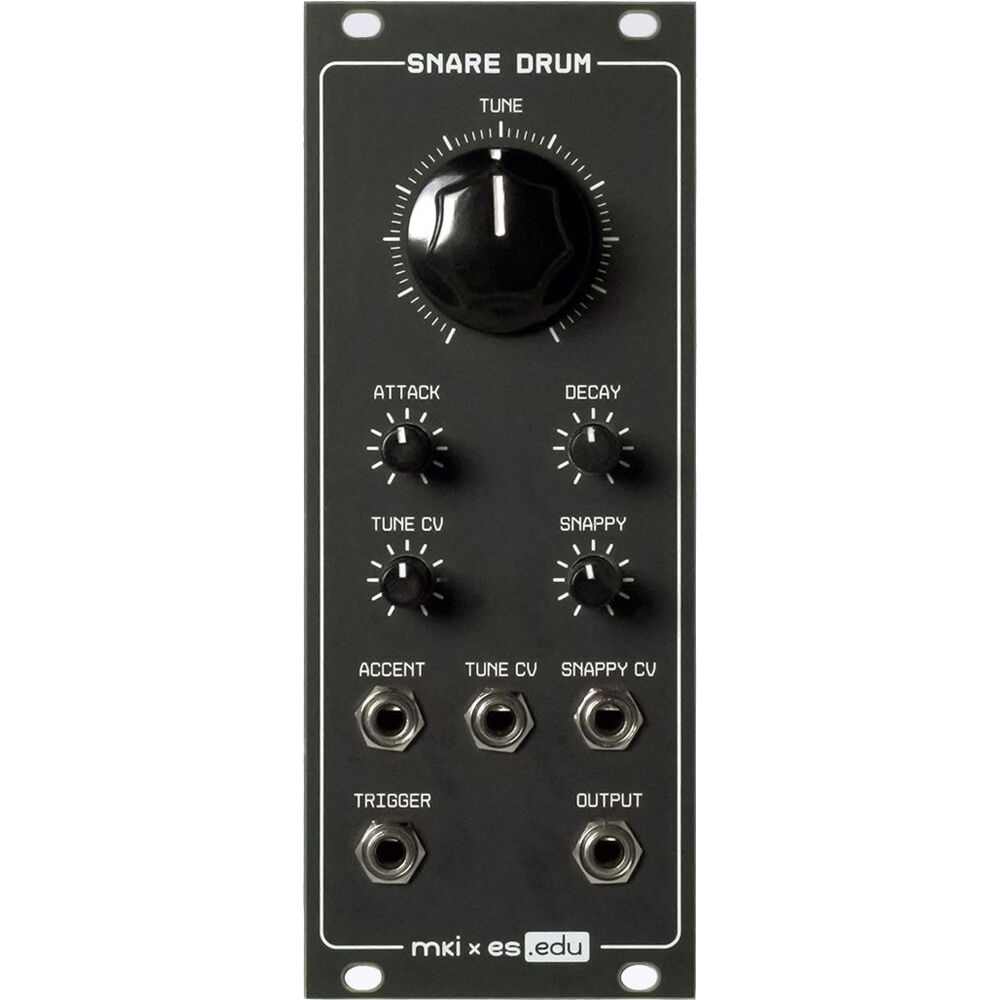

Erica Synths SNARE DRUM Overview
The Erica Synths DIY Snare Drum extends the company's line of percussion-focused educational DIY kits. As a complement to Erica Synths' kick drum and hi-hat kits, this 10 HP Eurorack module is designed to deliver the attention-getting, groove-holding, and dancefloor-conducting impact of a solid snare.
Under the name mki x es.EDU, Erica Synths and Moritz Klein created this and other educational DIY kits to teach those with no synth-building experience how to make their own instruments. The manual is a painstaking, step-by-step guide, not only on how to build the module, but also on the fundamentals of electrical knowledge that makes music synthesis (and many other electronic processes) possible.
- Manual and CV-controlled Tune
- Tune CV depth attenuator
- Manual attack and decay control
- Manual and CV Snappy (noise and tone crossfade) control
- Accent input
- In-depth and extensive build instructions
- Electronics principals and fundamentals education
- Knowledge can be applied to other modular synthesizer builds and electronics applications
Items Included
- Erica Synths EDU DIY Snare Drum Eurorack Module (10 HP)
- Power Cable
- Mounting Screws
- Limited 2-Year Manufacturer Warranty (As this is a self-build/DIY kit, manufacturer support is limited)
Additional Resources
Erica Synths SNARE DRUM Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm Gate Input
1x 1/8" / 3.5 mm CV Input 1x 1/8" / 3.5 mm Trigger Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
11 mA on +12 V Rail
12 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm Unbalanced Mono Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
1x 1/8" / 3.5 mm Gate Input
1x 1/8" / 3.5 mm CV Input 1x 1/8" / 3.5 mm Trigger Input |
| Patch Points |
No
|
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
11 mA on +12 V Rail
12 mA on -12 V Rail |
| AC/DC Power Adapter |
Included
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
Power Cord
|
| Dimensions |
5.1 x 2 x 1" / 128.5 x 50.8 x 25 mm (Bench)
|
| Package Weight |
0.265 lb
|
| Box Dimensions (LxWxH) |
6.3 x 3.6 x 1.5"
|
