Description
Erica Synths BBD Overview
Add a classic BBD-style delay to your Eurorack setup and learn the fundamentals of hardware synth building with the Erica Synths EDU DIY BBD Delay. Under the name mki x es.EDU, Erica Synths and Moritz Klein created this and other educational DIY kits to teach those with no synth-building experience how to make their own instruments. The manual is a meticulous step-by-step guide not only on how to build the module but also on the fundamentals of the electrical knowledge that makes music synthesis (and many other electronic processes) possible.

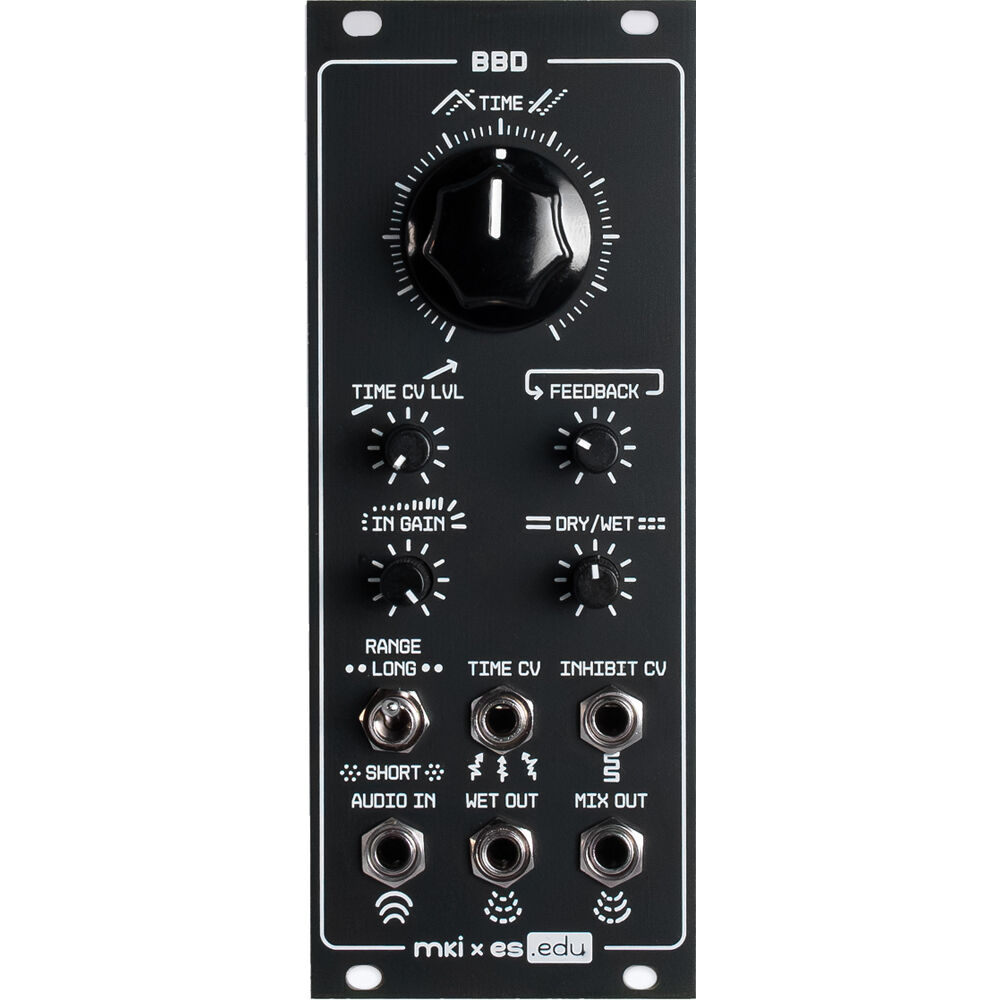

The finished 10 HP module features an oversized Time knob, joined by controls wielding the input gain, feedback level, and dry/wet mix. A toggle switch provides short and long delay ranges, while the audio input is joined by Mix and Wet-only outputs and Time and Inhibit CV inputs to further versatility. In building this module, the user will reverse-engineer the architecture of a classic Bucket Brigade Delay, recreate a bare-bones version on the breadboard, and then use a BBD chip to implement a classic audio delay effect.
Items Included
- Erica Synths EDU DIY BBD Delay Eurorack Module (10 HP)
- Mounting Screws
- Limited 2-Year Manufacturer Warranty (As this is a self-build/DIY kit, manufacturer support is limited)
Additional Resources
Erica Synths BBD Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm Modular/Eurorack Input
2x 1/8" / 3.5 mm Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm Modulation CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
Delay: Delay
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm Unbalanced Mono Modular/Eurorack Input
2x 1/8" / 3.5 mm Unbalanced Mono Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm Modulation CV Input
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
Not Specified by Manufacturer
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Dimensions |
5 x 2 x 1.2" / 127 x 50.8 x 30 mm
|
| Package Weight |
0.285 lb
|
| Box Dimensions (LxWxH) |
6.2 x 3.7 x 1.5"
|
