| ₹ 11240.0 includes GST and import duties. | |
| B2B customers can avail ₹ 1714.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

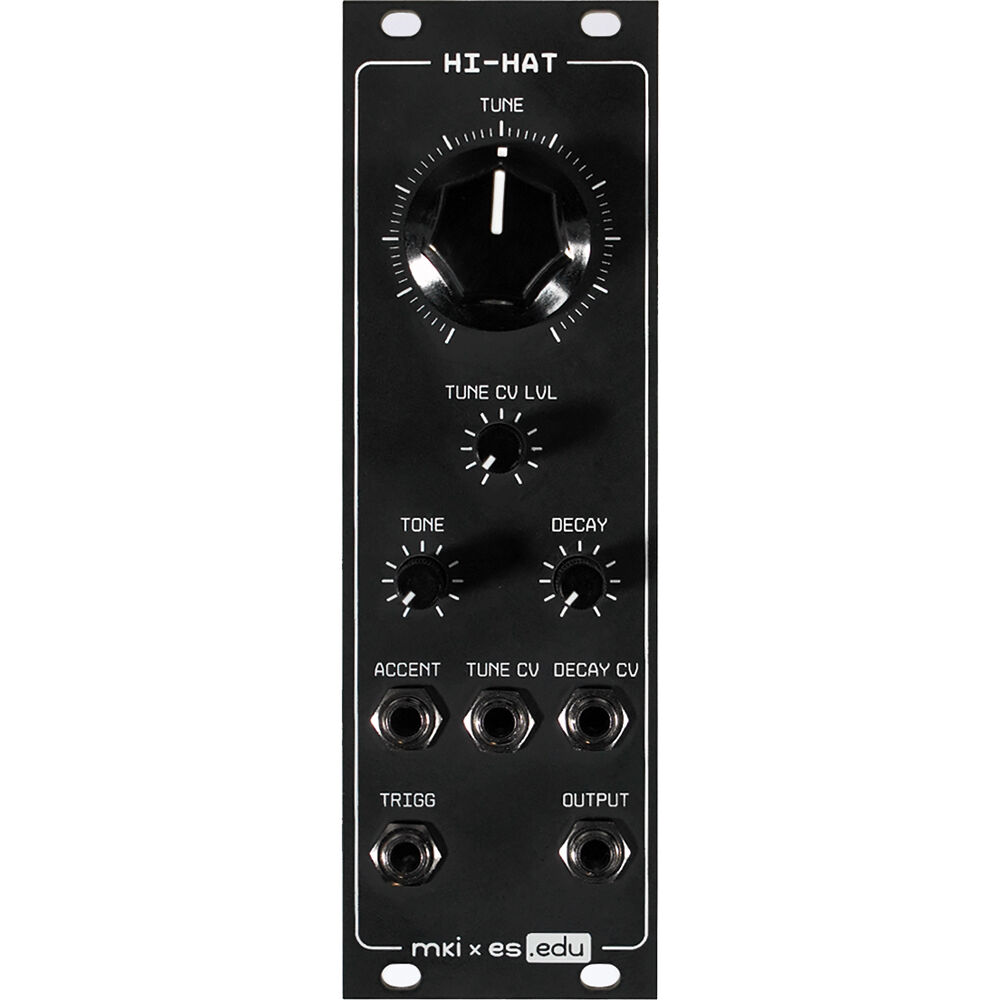

Erica Synths HI-HAT Overview
Create a versatile hi-hat sound module while educating yourself on how to build modular synthesizer components with the Erica Synths EDU DIY Hi-Hat. This 8 HP Eurorack module achieves what challenged early synth designers?the hybrid of air pressure and ambient noise that defines the sound of a hi-hat cymbal. Despite the difficulty of recreation, the hats of classic drum machines gave some of the most memorable accents to early electronic music compositions.
Under the name mki x es.EDU, Erica Synths and Moritz Klein created this and other educational DIY kits to teach those with no synth-building experience how to make their own instruments. The manual is a step-by-step guide not only on how to build the module but also on the fundamentals of the electrical knowledge that makes music synthesis (and many other electronic processes) possible.
- 808-inspired circuit
- Manual tune, decay, and tone controls
- CV-controlled tune and decay
- Accent input
Items Included
- Erica Synths EDU DIY Hi-Hat Eurorack Module (8 HP)
- Power Cable
- Mounting Screws
- Limited 2-Year Manufacturer Warranty
Additional Resources
Erica Synths HI-HAT Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm Modulation CV Input
1x 1/8" / 3.5 mm Modulation Trigger Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
7 mA on +12 V Rail
7 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm Modulation CV Input
1x 1/8" / 3.5 mm Modulation Trigger Input |
| Control Voltage Level |
-5 to +5 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
7 mA on +12 V Rail
7 mA on -12 V Rail |
| AC/DC Power Adapter |
Included
|
| Horizontal Pitch |
8 HP
|
| Included Accessories |
Power Cord
|
| Dimensions |
5.1 x 1.6 x 1.2" / 128.5 x 40.6 x 30 mm
|
| Package Weight |
0.255 lb
|
| Box Dimensions (LxWxH) |
6.6 x 3 x 1.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11015.2 |
| 3-5 | ₹ 10902.8 |
| 5-10 | ₹ 10678.0 |
| 10+ | ₹ 10453.2 |
Bulk discount will be automatically applied during checkout based on quantity.
