Description
RTW SW20003 Overview

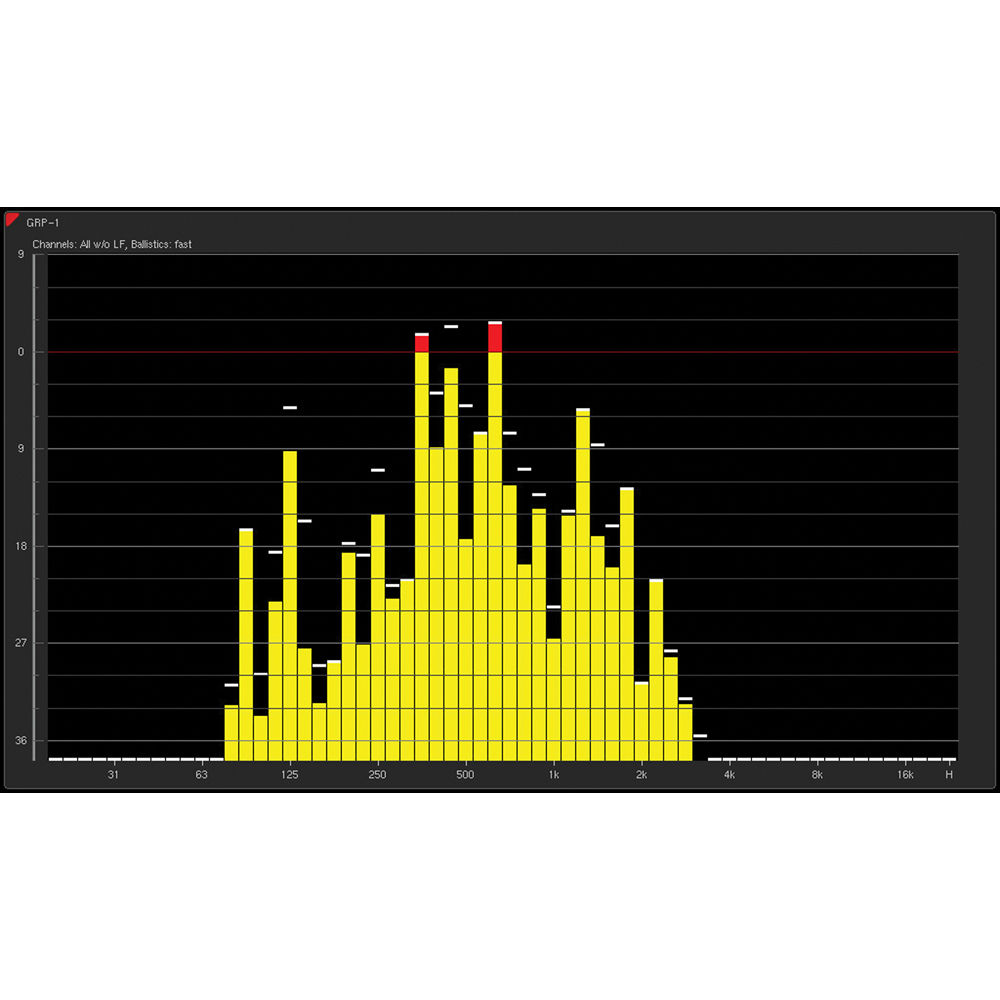

The RTW SW20003 RTA - Real Time Analyzer Module Software functions with the TM7, TM9 and TMR7 TouchMonitor models. It provides on 31 bands a spectral distribution display of the frequency range of single channels, channel pairs or groups plus HP HF band. For the display of signals with more than two channels the SW20001 software module is required.
Items Included
- RTW SW20003 RTA - Real Time Analyzer Software Module
Additional Resources
No additional resources available
RTW SW20003 Specs
RTA Real Time Analyzer
| Input Source |
Selectable: all channels without LF, all channels, Front, Rear, L/R, single channels, Stereo pairs, depending on selected mode
|
| Frequency Range |
Norm: 20 Hz to 20 kHz, additional band > 20 kHz switchable
LF: 5 Hz to 5 kHz |
| Number of Bands |
1/3-octave: 31 bands, filter acc. to IEC 225 class 2
1/6-octave: 61 bands |
| Weighting Filter |
Linear; Linear, A, C selectable
|
| Peak Hold Indicator |
1 s, 2 s, 4 s, 10 s, 20 s, 30 s, manual reset or off
|
| Measuring Range |
45 dB maximum
|
| Scaling |
3, 6, 9 dB
|
| Functions |
Input selection
Peak hold on/off A, C, Linear weighting Integration time Set reference Scaling Frequency range Bargraph arrangement Display-Hold |
| Integration Time |
Impulse, Fast, Slow, Peak (10 ms) (Ballistics)
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
