RTW SW20002 Overview

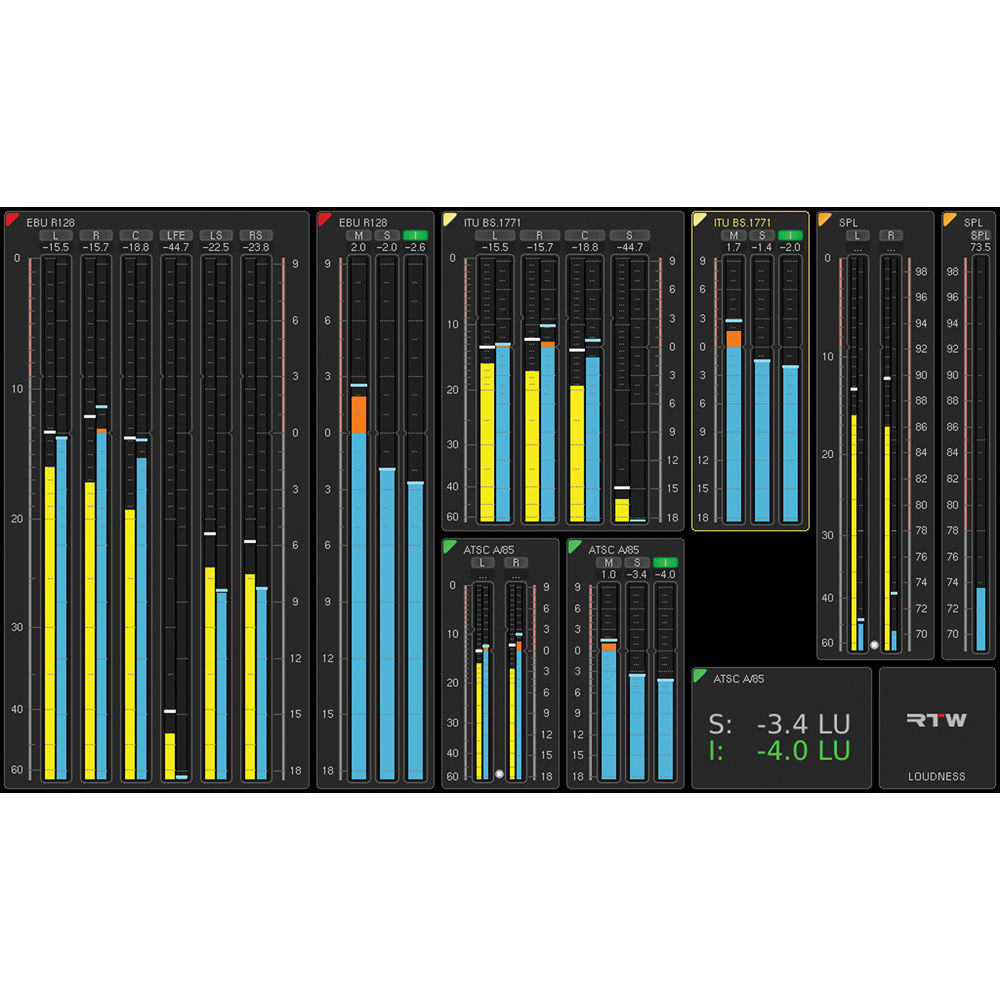

The RTW SW20002 Loudness and SPL Display Module software works with the TM7,TM9 and TMR7 TouchMonitor models. It expands the basic stereo PPM with Loudness measuring functions as described in current guidelines (EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59), and the LRA instrument for the graphical display of the Loudness Range. A customer-specific mode allows the user to modify parameters. In addition the module provides the SPL display mode with various weighting filters and integration times as well as reference level adjust to calculate an SPL value from an electrical signal.
For signals with more than two channels software module SW20001 is required.
Items Included
- RTW SW20002 Loudness and SPL Display Module
Additional Resources
No additional resources available
RTW SW20002 Specs
| Loudness Mode |
EBU R128 ITU BS.1771 ATSC A/85 ARIB OP-59 - programmable AGCOM - programmable Customer Specific |
| Displays |
Bargraphs for each single channel (can be combined with PPM bargraphs)
M bargraph (Momentary - summation of momentary loudness values of all channels for a short span of time) S bargraph (Short - loudness summation value of an adjustable dynamic time frame) I-Bargraph (Integrated - long term loudness value infinite or manual control) Adjustable tolerance range for M, S, I |
| Numerical Display |
For M, S, I values (labeling adjustable)
For LRA, TPmax, Mmax, Smax values |
| Scale |
Loudness Scale:
EBU+9: +9 .. -18 LU EBU+18: +18 .. -36 LU EBU+9a: 14 .. -41 LUFS EBU+18a: -5 .. -59 LUFS EBU0: 0 .. -60 LUFS ITU+9: +9 .. -18 LU (Loudness Units) ITU0: 0 .. -30 LKFS ATSC0: 0 .. -60 LKFS ATSC0a: 0 .. -30 LKFS |
| Weighting Filter |
K filter acc. to ITU BS.1770
|
| Target |
Level: -23 LUFS; adjustable from -10 to -30 LUFS
|
| Time & Gate |
Momentary:
Window Time: adjustable from 200 ms to 1000 ms in steps of 100 ms Integration Time: IEC 125 ms Fast, 250 ms (IRT), 500 ms, 750ms, IEC 1000 ms Slow, 1500 ms, 2000 msselectable Short: Integration Time: 3 s; time window adjustable from 1 to 20 s insteps of 1 s Integrated: Silence Gate: -70,0 LUFS; adjustable from -80,0 LUFS to-40,0 LUFS in steps of 0.5 LUFS, switchable Relative Gate: -10,0 LU; adjustable from -40,0 LU to 0 LU insteps of 0.5 LUFS, switchable |
| Leveling Adjustment |
For the Summation:
0.0 dB (L, R, C), adjustable between -3 and+3 dB in steps of 0.5 dB +1.5 dB (LS, RS, LSR, RSR), adjustablebetween -3 and +3 dB in steps of 0.5 dB Off (LFE), selectable: Off, 0 dB, 10 dB |
| Loudness Test Time Control |
Start
Functions: Autostart after preset load, autostart with gate,autostart with gate and autoreset, manually via keys or GPI Level for Gate: -70,0 LUFS/LKFS; adjustable from -85 to-10 LUFS/LKFS in steps of 0.5 LUFS/LKFS Stop Functions: manually via keys or GPI, autostop with gate,autostop with gate and time Level for Gate: -70,0 LUFS/LKFS; adjustable from -85 to -10 LUFS/LKFS in steps of 0.5 LUFS/LKFS Time for Gate: 1 s; adjustable from 1 to 15 s in steps of 1 s |
| Loudness Range Instrument (LRA) |
Display: Graphical display of the Loudness Range
Mode: Selectable: LRA Bar, MagicLRA, MagicLRA + I,MagicLRA + I + Num Scale Range: Selectable: 6 LU, 10 LU, 20 LU, 30 LU LRA Low Range: 2 LU; adjustable from 1 to 20 LU in steps of 1 LU Comfort Zone: 4 LU; adjustable from 1 to 20 LU in steps of 1 LU LRA High Range: Depends on the selected scale range and the spread of the comfort zone Colors: Selectable for each range |
| SPL Meter Mode |
Display: Bargraphs for each single channel(can be combined with PPM bargraphs)
Summation bargraph Reference Point: Adjustable from 68 to 88 dB in steps of 1 dB Weighting: Linear, A (Leq(A)), C, CCIR (Leq(M)), k Integration Time: Fast (125 ms), Slow (1 s) |
