Description
American DJ VS1C Overview

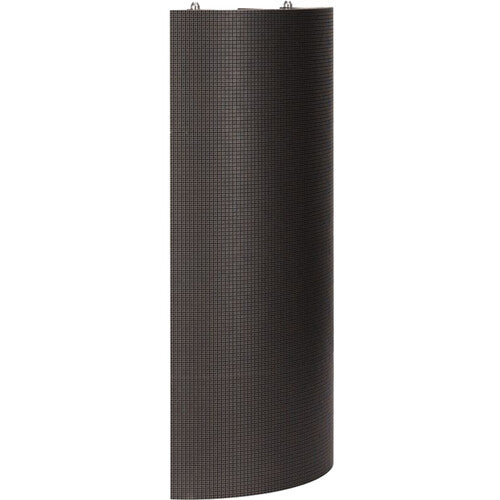

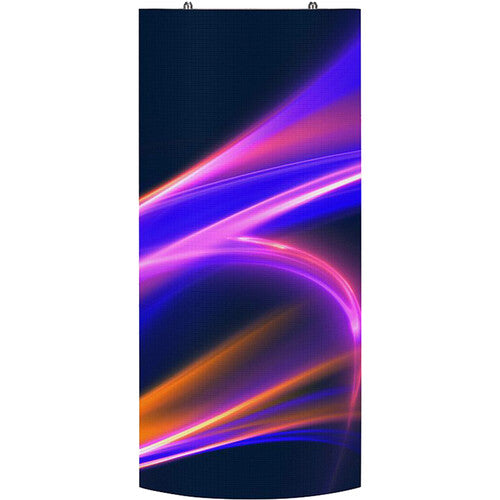

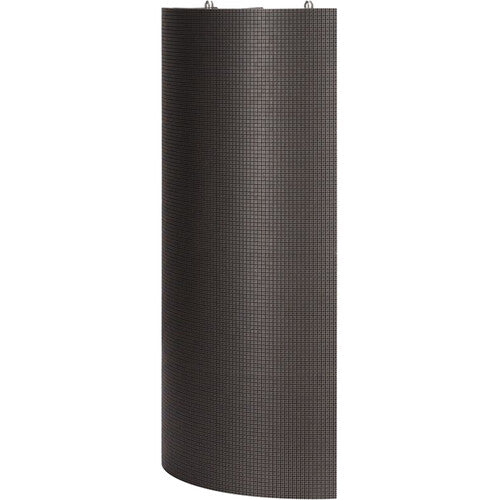

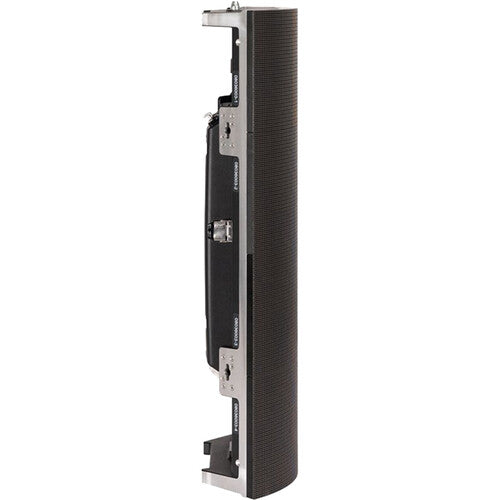

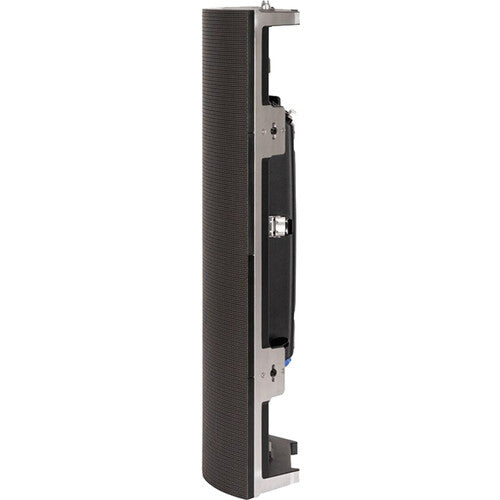

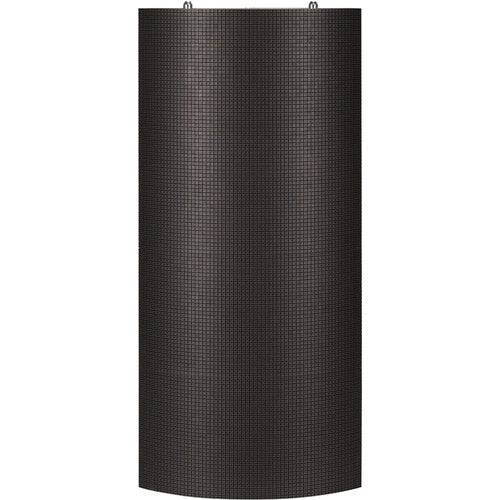

Create large LED video wall displays with 90° corners using the American DJ VS1C LED Video Wall Panel. The VS1C is designed to sit between two VS1 cabinets to create a seamless 90° corner and features the same miniLED configuration with a 1.95mm pixel pitch. These panels are sold individually and are compatible with Novastar video processors. The VS1C includes four individual modules and rear serviceability.
Additional Features
- 4-in-1 miniLED configuration
- 124 x 256 panel resolution
- Equipped with quick locks on the top, bottom, left, and right sides, enabling quick assembly with the VS1 panels
- Locking Power and Data in and out

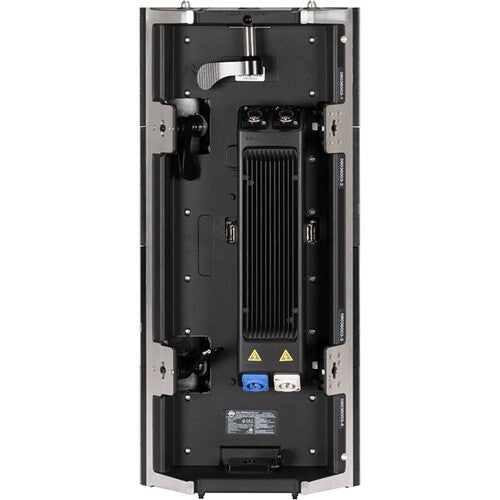

- The power box can be disassembled and assembled independently, ensuring simple and convenient installation and maintenance
- IP20 rated dust resistance (front and back)
UPC: 810087374389
Items Included
- American DJ VS1C 1.95mm Pixel Pitch 90° Curved Corner Section LED Video Wall Panel
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
American DJ VS1C Specs
Key Specs
| Display Size |
27.84"
|
| Native Resolution |
128 x 256
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Inputs |
No
|
| Outputs |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
Display
| Display Size |
27.84"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
1:2
|
| Native Resolution |
128 x 256
|
| Maximum Brightness |
1500 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
5000:1
|
| Refresh Rate |
60 Hz
|
| Color Support |
Grayscale
|
| Viewing Angle (H x V) |
110 x 110°
|
Connectivity
| Inputs |
No
|
| Outputs |
No
|
| HDCP Support |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
| Other I/O |
No
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
No
|
| OS Compatibility |
Windows / Linux
|
Electrical
| Power Consumption |
Maximum: 75.0 W
Typical: 30.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 176°F / -40 to 80°C at 10 to 90% Humidity
|
| Certifications |
cETLus
|
| VESA Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Bezel Thickness |
Bezel Less
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
19.7 x 9.8 x 3.9" / 500 x 250 x 98 mm
|
| Weight |
9.5 lb / 4.3 kg
|
