Description
American DJ WMS1 Overview

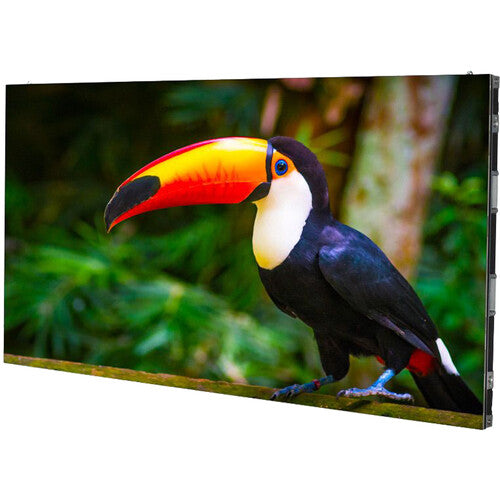

The American DJ WMS1 44" 1.95 Pixel Pitch LED Video Wall Panel is a compact, high-resolution LED cabinet, with 700 nits brightness, and integrated Novastar A8s-N receiving card for creating temporary hangable or wall mountable indoor video wall displays. The WMS1 can be hung in horizontal or vertical configurations and is front serviceable, making it well suited for projects of all types, including use in shop window displays, museums, boardrooms, digital signage, and entertainment venues.
Simple Installation

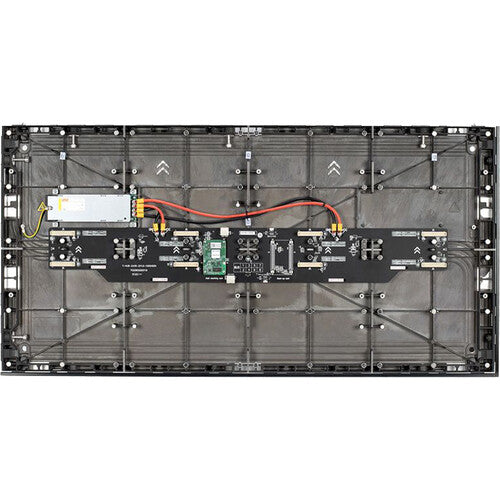

With a slim 1.3" thickness and a weight of 21 lb, the WMS1 is a lightweight and compact solution. The panel's frame assembly features a secure locking mechanism, allowing for the seamless joining of adjacent panels. Installation is simplified with mounting points for direct wall installation. The front-serviceable design enables easy module replacement, ensuring uninterrupted operation.
Additional Features
- RGB SMD1212 color mixing LEDs

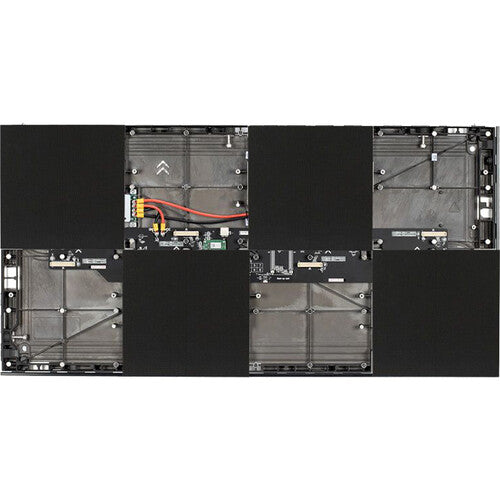

- Consists of eight individual modules, each with 128 x 128 pixels
- Installation options include wall-mounting, hanging, or stacking, horizontally or vertically
- 50,000 hour expected life span
- IP20 dust protection
UPC: 810087373726
Items Included
- American DJ WMS1 44" 1.95 Pixel Pitch LED Video Wall Panel
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
American DJ WMS1 Specs
Key Specs
| Display Size |
44"
|
| Native Resolution |
512 x 256
|
| Maximum Brightness |
700 nits / cd/m2
|
| Inputs |
No
|
| Outputs |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
Display
| Display Size |
44"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
2:1
|
| Native Resolution |
512 x 256
|
| Maximum Brightness |
700 nits / cd/m2
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Color Support |
Grayscale
|
| Viewing Angle (H x V) |
160 x 140°
|
Connectivity
| Inputs |
No
|
| Outputs |
No
|
| HDCP Support |
Yes
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
| Other I/O |
No
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
No
|
| OS Compatibility |
Windows / macOS / Linux
|
Electrical
| Power Consumption |
Typical: 140.0 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 176°F / -40 to 80°C at 10 to 90% Humidity
|
| Certifications |
cETLus
|
| VESA Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Bezel Thickness |
Bezel Less
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
39.4 x 19.7" / 1000 x 500 mm
|
| Weight |
20.9 lb / 9.5 kg
|
