| ₹ 316640.0 includes GST and import duties. | |
| B2B customers can avail ₹ 48287.6 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
American DJ VS1 Overview

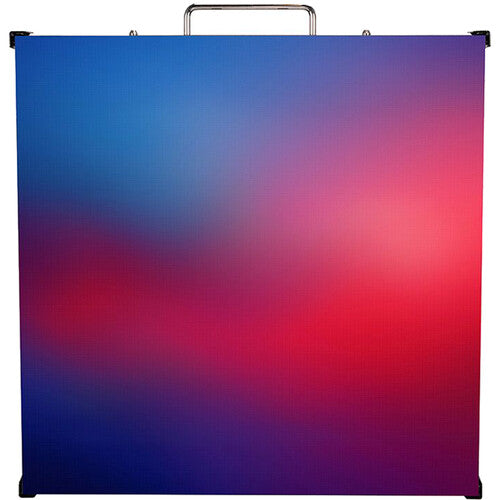

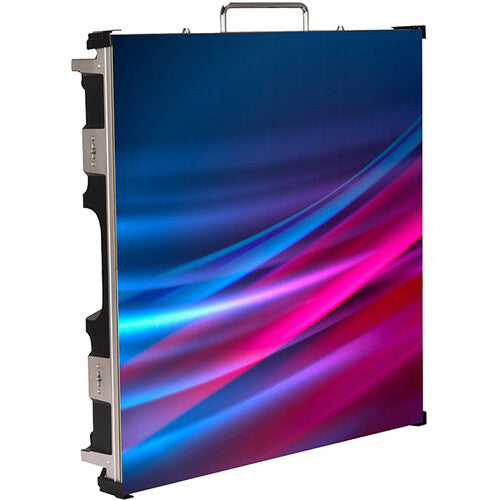

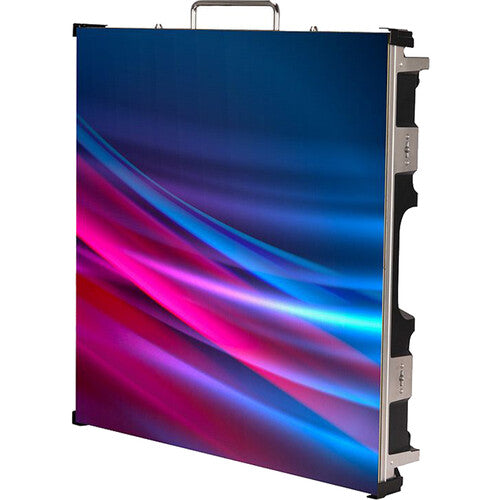

Create large, curved LED video wall displays with the American DJ VS1 LED Video Wall Panel. The VS1 features a miniLED panel with a 1.95mm pixel pitch. These panels are sold individually and are compatible with Novastar video processors.

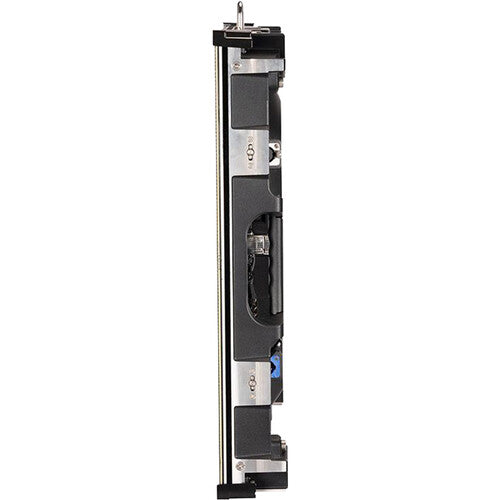

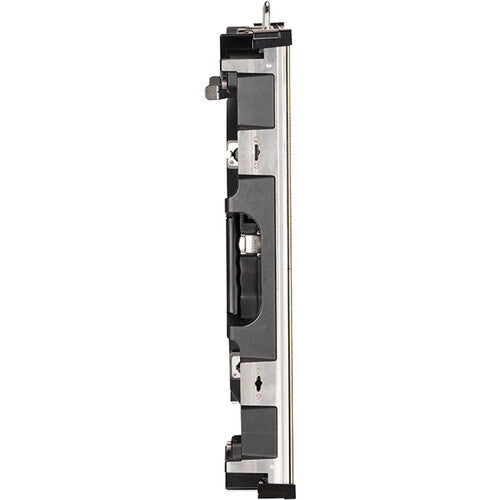

The VS1 includes four individual modules and rear serviceability. Conveniently, up to eight panels can snugly fit within the VSFC8 flight case (sold separately). Additionally, the VSRB1 rigging bar (sold separately) enables the hanging of up to twenty VS1 panels vertically.
Additional Features
- 4-in-1 MiniLED configuration
- 256 x 256 panel resolution
- Locking Power and Data in and out
- Seamless operation with Memory on Module functionality

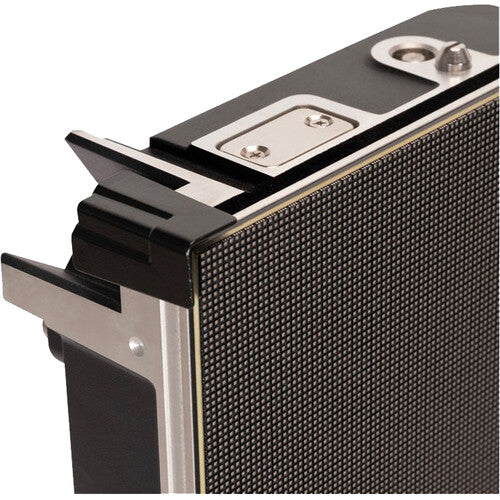

- Corner protectors provided to safeguard corners during transport
- Magnets on top and bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
UPC: 810087374372
Items Included
- American DJ VS1 1.95mm Pixel Pitch LED Video Wall Panel
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
American DJ VS1 Specs
Key Specs
| Display Size |
27.84"
|
| Native Resolution |
256 x 256
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Inputs |
No
|
| Outputs |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
Display
| Display Size |
27.84"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
1:1
|
| Native Resolution |
256 x 256
|
| Maximum Brightness |
1500 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
10,000:1
|
| Refresh Rate |
60 Hz
|
| Color Support |
Grayscale
|
| Viewing Angle (H x V) |
160 x 140°
|
Connectivity
| Inputs |
No
|
| Outputs |
No
|
| HDCP Support |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
| Other I/O |
No
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
No
|
| OS Compatibility |
Windows / Linux
|
Electrical
| Power Consumption |
Maximum: 150.0 W
Typical: 60.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 176°F / -40 to 80°C at 10 to 90% Humidity
|
| Certifications |
cETLus
|
| VESA Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Dust-Resistant (Unrated)
|
| Bezel Thickness |
Bezel Less
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
19.7 x 19.7 x 2.8" / 500 x 500 x 70 mm
|
| Weight |
17.6 lb / 8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 310307.2 |
| 3-5 | ₹ 307140.8 |
| 5-10 | ₹ 300808.0 |
| 10+ | ₹ 294475.2 |
Bulk discount will be automatically applied during checkout based on quantity.
