Description
Core SWX JP-A-XLR Overview

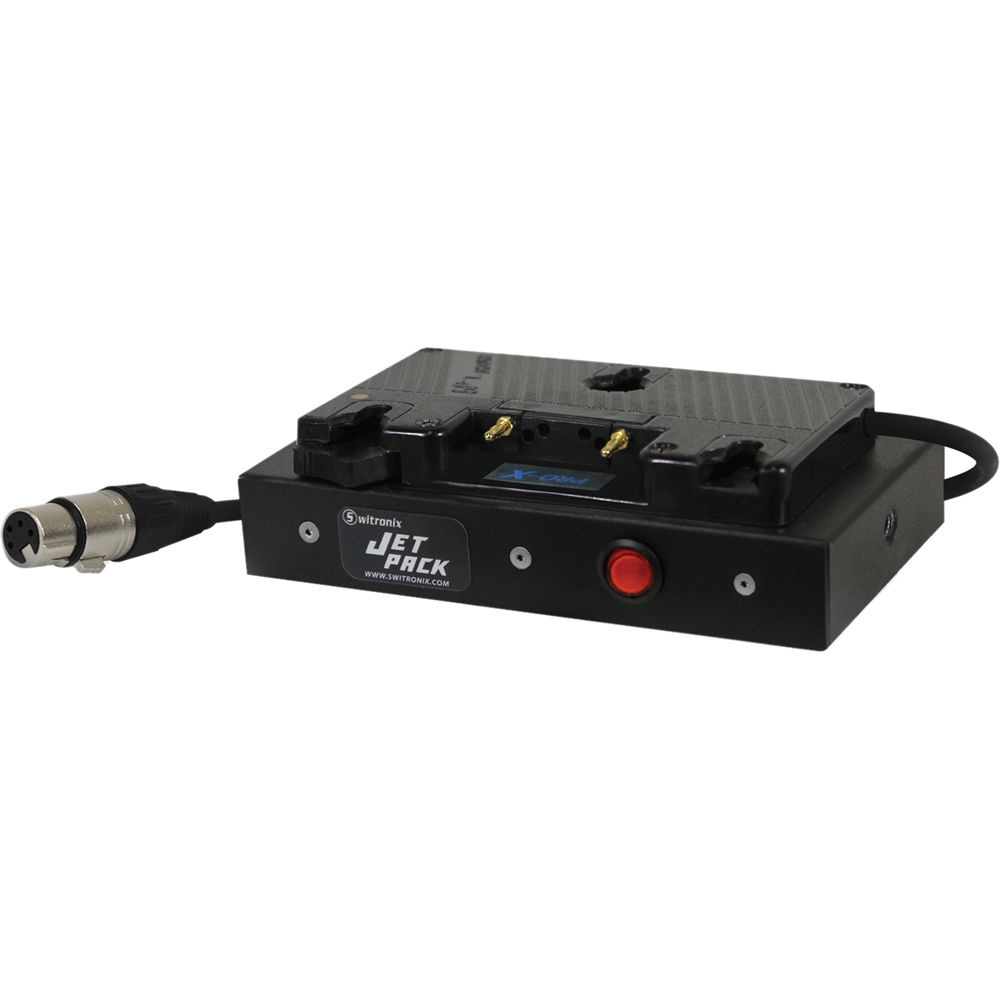

The Core SWX JetPack Gold Mount Power Adapter Plate with 4-Pin XLR is a battery and power output adapter for cameras with 4-pin XLR power inputs, like the Sony F3. The JetPack features a Gold Mount for a battery and six outputs for powering various accessories. Specifically, the outputs include two D-Taps, one 5V LEMO, one 7.2V LEMO, a 12V LEMO, and one USB output. You can use the D-Tap ports, for example, to power compatible monitors and lights.
Three 1/4"-20 threads are available for mounting. You would need to use a plate that configures well with your rig. An optional JetPack cheese plate can be attached to additionally provide thirteen 1/4"-20 and ten 3/8"-16 threads.
Items Included
- Core SWX JetPack Gold Mount Power Adapter Plate with 4-Pin XLR
- Limited 1-Year Warranty
Additional Resources
No additional resources available
Core SWX JP-A-XLR Specs
| Input |
1 x Gold Mount battery power input, 11-17 VDC
|
| Output |
1 x 4-pin XLR output for camera, 11-17 VDC, unregulated
2 x D-Tap, 11-17 VDC, unregulated Controlled by JetPack Power Switch: 1 x LEMO 2-pin (0B): 5 V, 2.5 A 1 x LEMO 3-pin (0B): 7.2 V, 2.5 A 1 x LEMO 4-pin (0B): 12 V, 2.5 A 1 x USB: 5 V, 1 A |
| Mount Type |
3 x 1/4"-20 threads
M3 screw pattern on back |
| Material |
Aluminum
|
| Dimensions |
6 x 3.5 x 1.9" (15.2 x 8.9 x 4.8 cm)
|
| Weight |
1.2 lb (.54 kg)
|
| Package Weight |
1.15 lb
|
| Box Dimensions (LxWxH) |
7.8 x 5.3 x 3.4"
|
