Description
Core SWX JP-V-BASE Overview

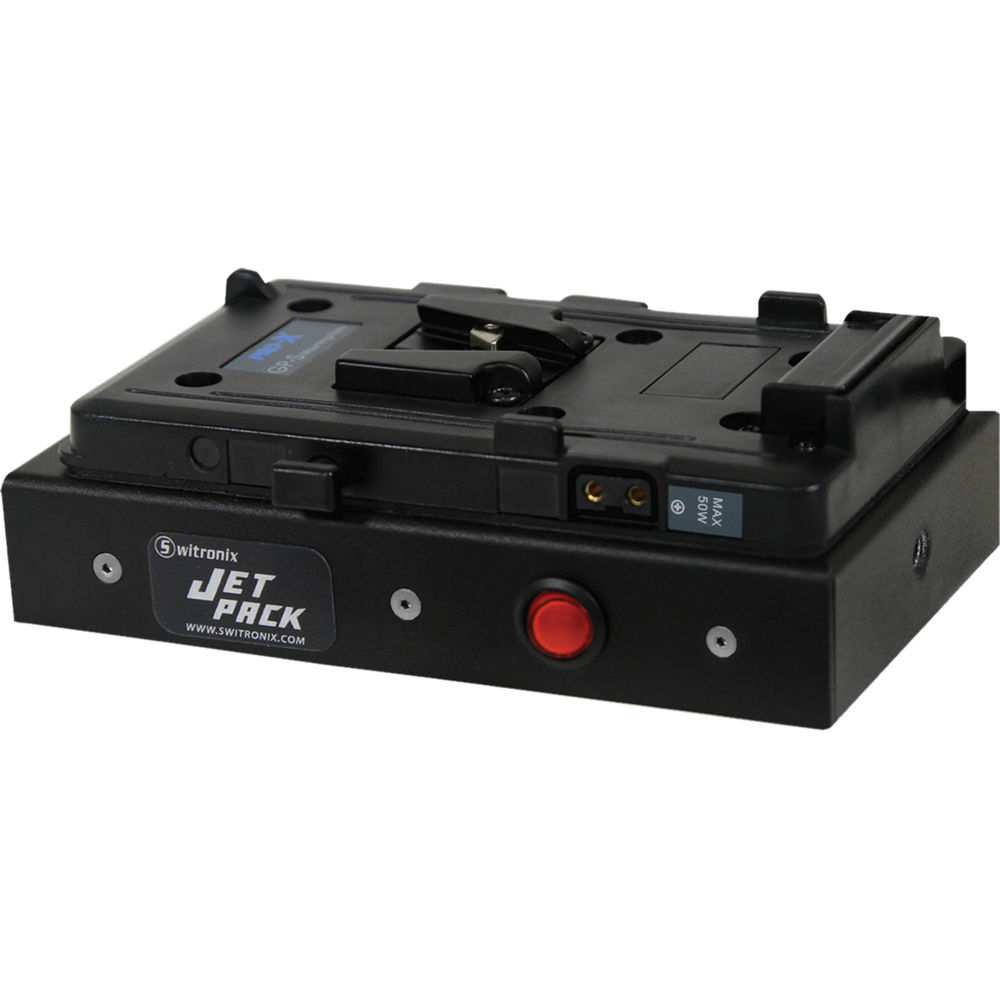

The Core SWX JetPack A Base V-Mount is a battery and power output adapter, featuring a V-mount for a battery and six outputs for powering various accessories. Specifically, the outputs include two D-taps, one 5V Lemo, a 7.2V Lemo, a 12V Lemo, and one USB output. You can use the D-taps, for example, to power compatible monitors and lights.
Three 1/4" threads and an M3 screw pattern are available for mounting. You would need to use a plate that configures well with your camera or rig.
UPC: 184323001699
Items Included
- Core SWX JetPack A Base V-Mount Battery and Output Adapter
- 1-Year Limited Warranty
Additional Resources
No additional resources available
Core SWX JP-V-BASE Specs
| Input |
1 x V-mount battery power input: DC 11-17 V
|
| Outputs |
2 x D-tap: DC 11-17 V, unregulated
The below outputs are controlled by the JetPack's power switch: 1x Lemo 2-pin (0B): 5V, 2.5a 1x Lemo 3-pin (0B): 7.2V, 2.5a 1x Lemo 4-pin (0B): 12V, 2.5a 1x USB: 5V, 1a |
| Mount Type |
3 x 1/4"-20 threads
M3 cheese plate screw pattern |
Packaging Info
| Package Weight |
1.2 lb
|
| Box Dimensions (LxWxH) |
8 x 5.5 x 3.5"
|
