Description

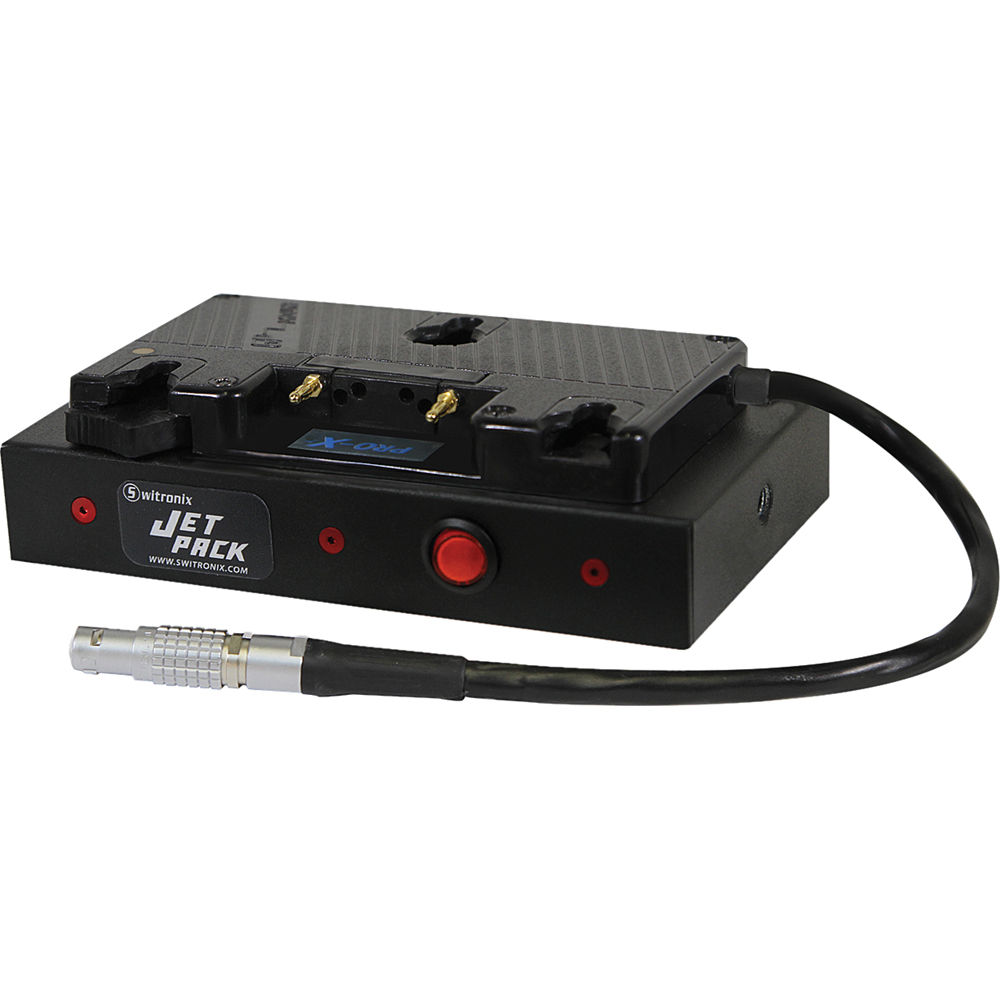

Core SWX JP-A-EPIC Overview
The Core SWX Gold Mount JetPack for Epic and Scarlet is a battery and power output adapter, featuring a Gold for a battery and six outputs for powering various accessories. Specifically, the outputs include two D-taps, one 5V Lemo, two 12V Lemos, and one USB output. You can use the D-taps, for example, to power compatible monitors and lights and the USB out to power Redmote. Please note: JetPack passes battery data to the Epic/Scarlet if you're using batteries with communication protocol.
Three 1/4" threads are available for mounting. You would need to use a plate that configures well with your rig. An M3 screw pattern is also available for attaching a Wooden Camera Quick Back plate, which allows mounting directly to the camera. An optional JetPack cheese plate can be attached to additionally provide thirteen 1/4" and ten 3/8" threads.
Items Included
- Core SWX Gold Mount JetPack for Epic and Scarlet
- 1-Year Limited Warranty
Additional Resources
No additional resources available
Core SWX JP-A-EPIC Specs
| Input |
1x Gold battery power input: DC 11-17 V
|
| Outputs |
1x Lemo (1B) output for camera: DC 11-17 V, unregulated
2x D-Tap: DC 11-17 V, unregulated The below outputs are controlled by the JetPack's power switch: 1x Lemo 2-pin (0B): 5 V, 2.5a 2x Lemo 4-pin (0B): 12 V, 2.5a 1x USB: 5V, 1a |
| Mount Type |
3x 1/4"-20 threads
M3 screw pattern on back for optional Wooden Camera Quick Back plate |
| Material |
Aluminum
|
| Dimensions |
6 x 3.5 x 1.9" (15.2 x 8.9 x 4.8 cm)
|
| Weight |
1.2 lb (.54 kg)
|
| Package Weight |
1 lb
|
| Box Dimensions (LxWxH) |
8 x 5.5 x 3.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 74435.9 |
| 3-5 | ₹ 73676.35 |
| 5-10 | ₹ 72157.25 |
| 10+ | ₹ 70638.15 |
Bulk discount will be automatically applied during checkout based on quantity.
