| ₹ 1562.36 includes GST and import duties. | |
| B2B customers can avail ₹ 238.26 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

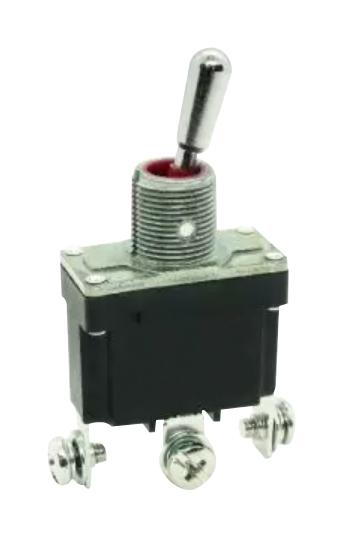

MP1HAS5T1B1M2N1S-5 is a sealed SPDT, quick disconnect terminal, ON-OFF-(ON) toggle switch.
- 30,000 make-and-break cycles mechanical life
- Contact resistance is 20mohm maximum initial at 2 to 4VDC
- 1,000Mohm minimum insulation resistance
- 1,500Vrms min at sea level dielectric strength, 12Amps at 125/250VAC rating
- Silver contact plating, nickel terminal plating
- Diallyl phthalate (nylon) (UL94V-0) case, chrome plated brass actuator
- Zin+silicon bushing, copper terminal/contact
- Operating temperature range from -30°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP1HAS5T1B1M2N1S-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1531.11 |
| 3-5 | ₹ 1515.49 |
| 5-10 | ₹ 1484.24 |
| 10+ | ₹ 1452.99 |
Bulk discount will be automatically applied during checkout based on quantity.
