Description
Product Overview

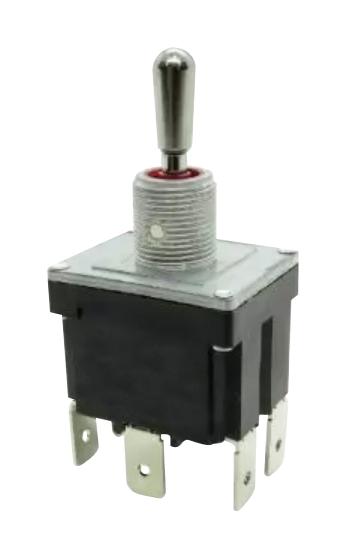

MP1HAS3T1B1M2N1S-5 is a sealed SPDT, quick disconnect terminal, ON-OFF-ON toggle switch.
- 30,000 make-and-break cycles mechanical life
- Contact resistance is 20mohm maximum initial at 2 to 4VDC
- 1,000Mohm minimum insulation resistance
- 1,500Vrms min at sea level dielectric strength, 12Amps at 125/250VAC rating
- Silver contact plating, nickel terminal plating
- Diallyl phthalate (nylon) (UL94V-0) case, chrome plated brass actuator
- Zin+silicon bushing, copper terminal/contact
- Operating temperature range from -30°C to 85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP1HAS3T1B1M2N1S-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
