| ₹ 135361.0 includes GST and import duties. | |
| B2B customers can avail ₹ 20642.55 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

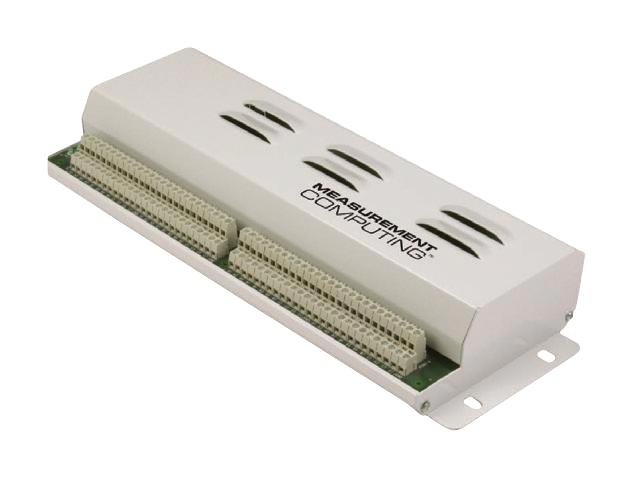

USB-DIO96H is a 96 channel digital I/O USB device. The USB-DIO96H is ideal for high-channel count digital I/O requirements. The device provides high current, logic-level, bidirectional digital I/O and counter operation, and is designed with a heavy-duty chassis for rugged applications. Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW�, MATLAB®, Linux®, and Python�.
- 5.5V input voltage, 64 mA sink and 24mA source
- One 32-bit event counter
- USB interface
- Externally powered with included 5 VDC power supply
- Screw terminals for signal I/O connections
- 50-pin mass termination connectors for OEM applications
- Rugged metal enclosure that can mount on a DIN rail or on a bench
USB-DIO96H, USB cable, Power Supply, 5 VDC Output, AC Input Cord USA style, Printed insert: DAQami Quick Start, MCC packaging assembly/foam, etc.
Other details
| Brand | DIGILENT |
| Part Number | 6069-410-032 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 132653.78 |
| 3-5 | ₹ 131300.17 |
| 5-10 | ₹ 128592.95 |
| 10+ | ₹ 125885.73 |
Bulk discount will be automatically applied during checkout based on quantity.
