Description

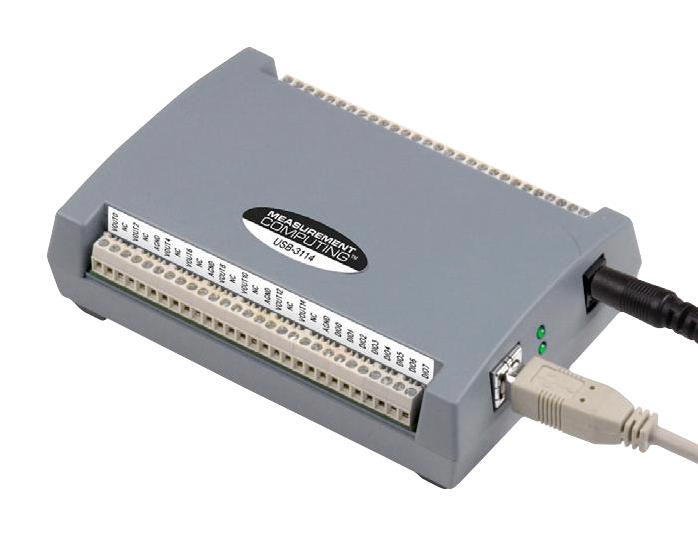

USB-3114 is a voltage output USB device. It features 16 channels of high-drive analogue voltage output, high output current, eight digital I/O, and one counter input. Each channel is software-selectable for either a bipolar voltage output range of ±10 V or a unipolar range of 0 V to 10 V. Channel outputs can be updated individually or simultaneously. Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW�, MATLAB®, Linux®, and Python�.
- USB 2.0 full-speed, high-drive device
- Quad (4-channel) 16-bit digital-to-analogue converters (DAC)
- Eight bidirectional digital I/O connections
- 32bit counter can count TTL pulses
- Powered by a 5V, 2A AC power adapter
USB-3114, USB cable, Power supply, Field changeable AC input plug, Printed insert: DAQami quick start, MCC packaging assembly/foam.
Other details
| Brand | DIGILENT |
| Part Number | 6069-410-029 |
| Quantity | Each |
| Technical Data Sheet EN |  |
