Description
Product Overview

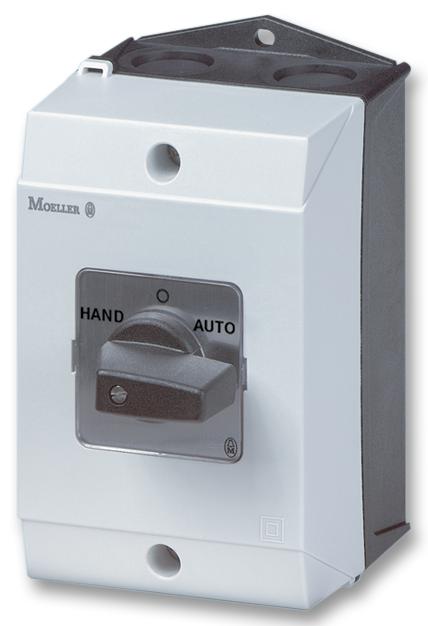

T3-3-8222/I2 is a 32A, 3 pole, T3 changeover switch. It is certified by UL File No.: E36332, VDE 0660, IEC/EN 60204, UL 60947-4-1, IEC/EN 60947, CSA File No.: 012528, CSA-C22.2 No. 94, CSA, UL, CSA-C22.2 No. 60947-4-1-14, UL Category Control No.: NLRV, IEC/EN 60947-3, CSA Class No.: 3211-05.
- Black thumb grip and front plate
- Rated operational voltage (Ue) at AC - max is 690V
- Rated operational current (Ie) at AC-3, 220V, 230V, 240V is 23.7A
- Rated operational power at AC-3, 415V, 50Hz is 11KW
- Number of contact units are 3, surface mounting
- Switching angle is 90°, M4 terminal screw size
- Degree of protection is IP65, NEMA 12
- Rated conditional short-circuit current (Iq) is 1KA
- Ambient operating temperature range from -25°C to 40°C
- Product dimension is 181mm length/depth x 127mm height x 100mm width
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | T3-3-8222/I2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
