| ₹ 10815.91 includes GST and import duties. | |
| B2B customers can avail ₹ 1649.43 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

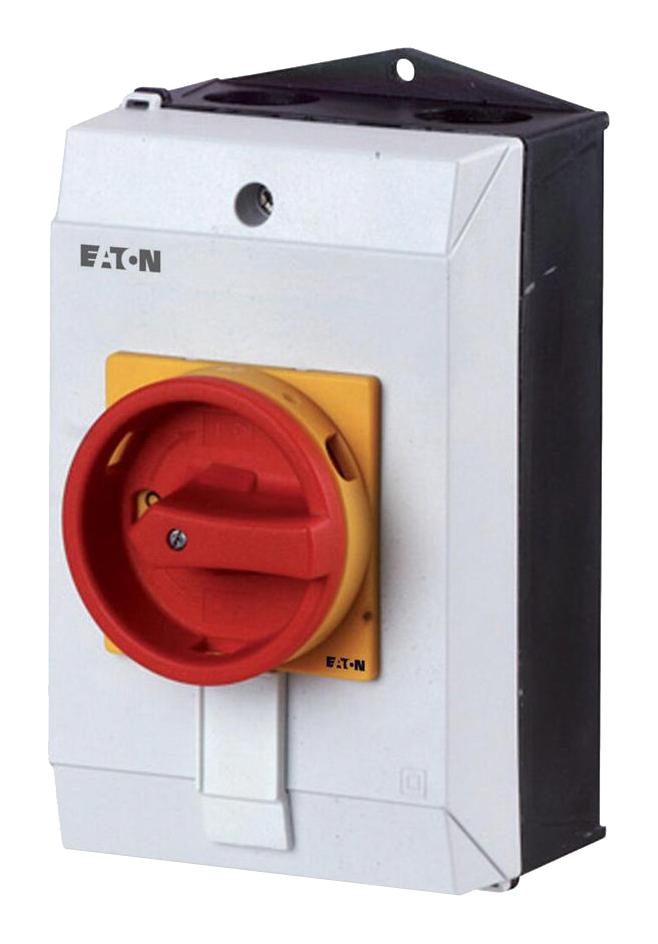

T0-4-15682/I1/SVB is an Eaton Moeller® series T0 main switch. It includes short-circuit protection. It features version as main switch, version as maintenance-/service switch, version as emergency stop installation. Safety certification are VDE 0660, IEC/EN 60947, IEC/EN 60947-3, IEC/EN 60204.
- Fitted with red rotary handle and yellow locking ring
- Interlockable, emergency switching off function interlockable
- 6 number of poles, NEMA 12 degree of protection
- 400,000 operations lifespan, mechanical, suitable for ground mounting
- 1200 operations/h operating frequency, 3 pollution degree
- 6000VAC rated impulse withstand voltage (Uimp)
- 440VAC, between the contacts, according to EN 61140 safe isolation
- 1.6Nm, screw terminals tightening torque
- 150mm product length/depth, 140mm product height, 84mm product width
- Ambient operating temperature range from -25°C to 40°C
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | T0-4-15682/I1/SVB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10599.59 |
| 3-5 | ₹ 10491.43 |
| 5-10 | ₹ 10275.11 |
| 10+ | ₹ 10058.8 |
Bulk discount will be automatically applied during checkout based on quantity.
