Description
Product Overview

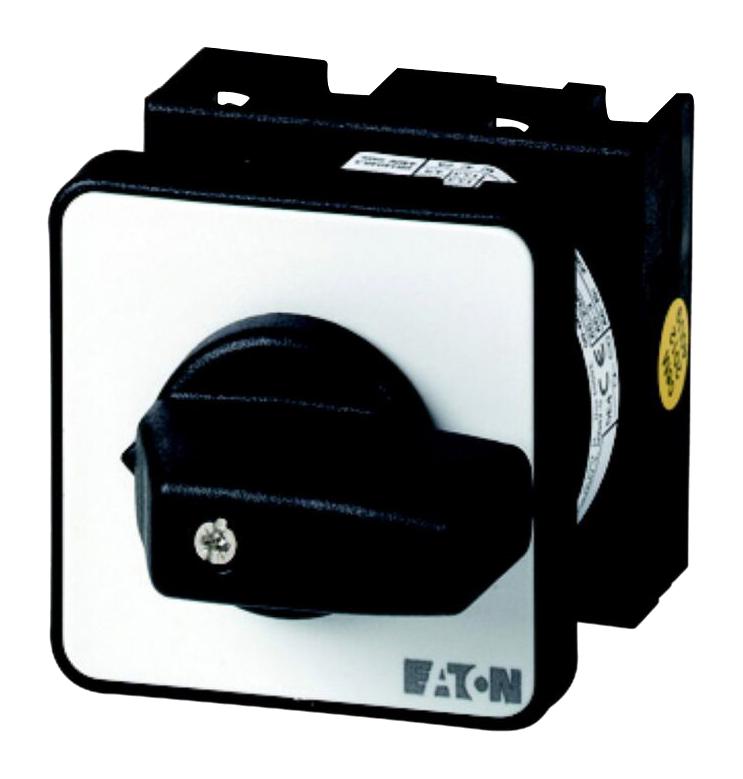

T0-1-8220/E is an Eaton Moeller® series T0 changeover switch. It includes short-circuit protection. Safety certification are UL File No.: E36332, CE, CSA Class No.: 3211-05, CSA-C22.2 No. 60947-4-1-14, IEC/EN 60204, VDE 0660, UL IEC/EN 60947-3, UL Category Control No.: NLRV, CSA-C22.2 No. 94, UL 60947-4-1, CSA, IEC/EN 60947, CSA File No.: 012528.
- Plastic enclosure material, fitted with black thumb grip and front plate

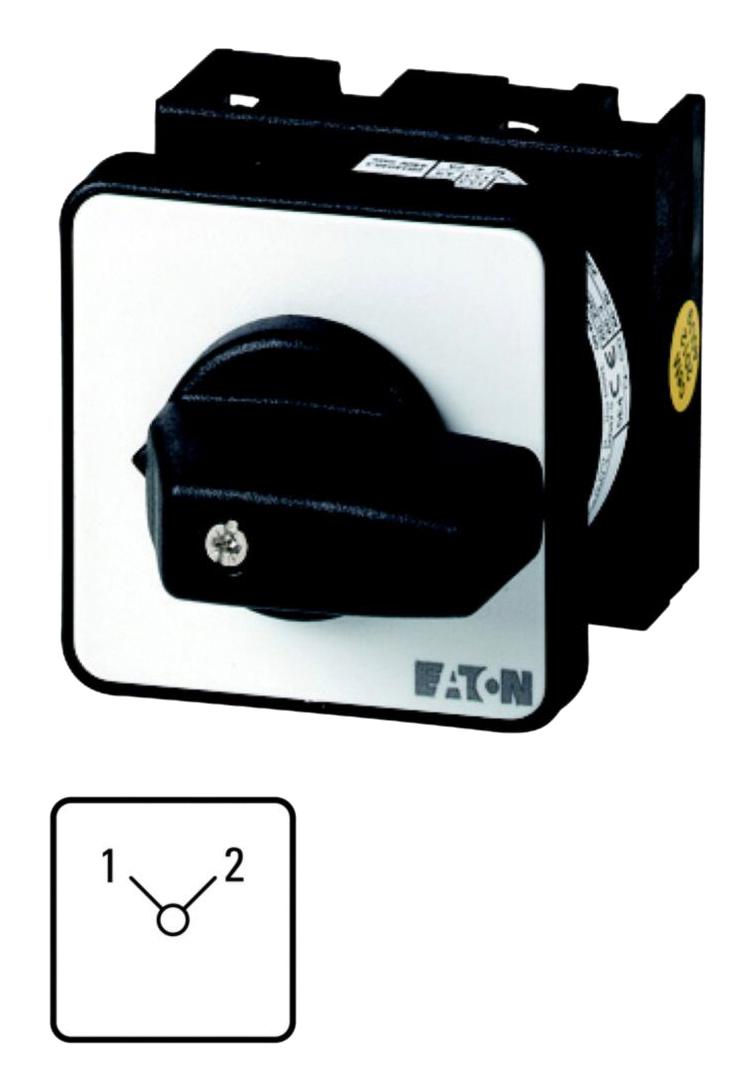

- 1-2 inscription, 1 number of poles
- IP65, NEMA 1, NEMA 12 degree of protection, 400,000 operations lifespan, mechanical
- Flush mounting method, 1 number of contact units, suitable for ground mounting
- 1200 operations/h operating frequency, 3 pollution degree
- 6000VAC rated impulse withstand voltage (Uimp)
- 440VAC, between the contacts, according to EN 61140 safe isolation
- 1Nm, screw terminals tightening torque
- 76mm product length/depth, 48mm product height, 48mm product width
- Ambient operating temperature range from -25°C to 50°C
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | T0-1-8220/E |
| Quantity | Each |
| Technical Data Sheet EN |  |
