Description
Product Overview

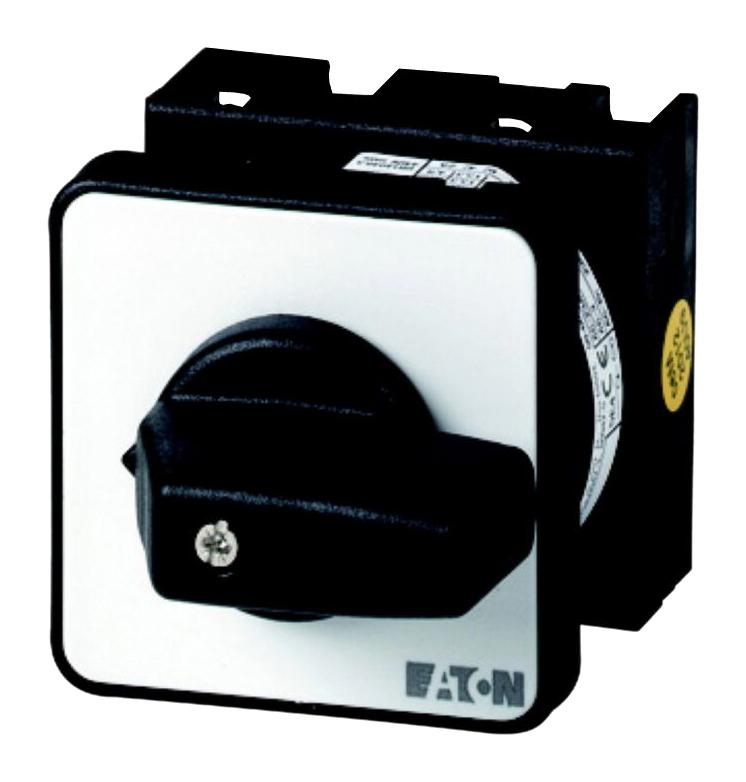

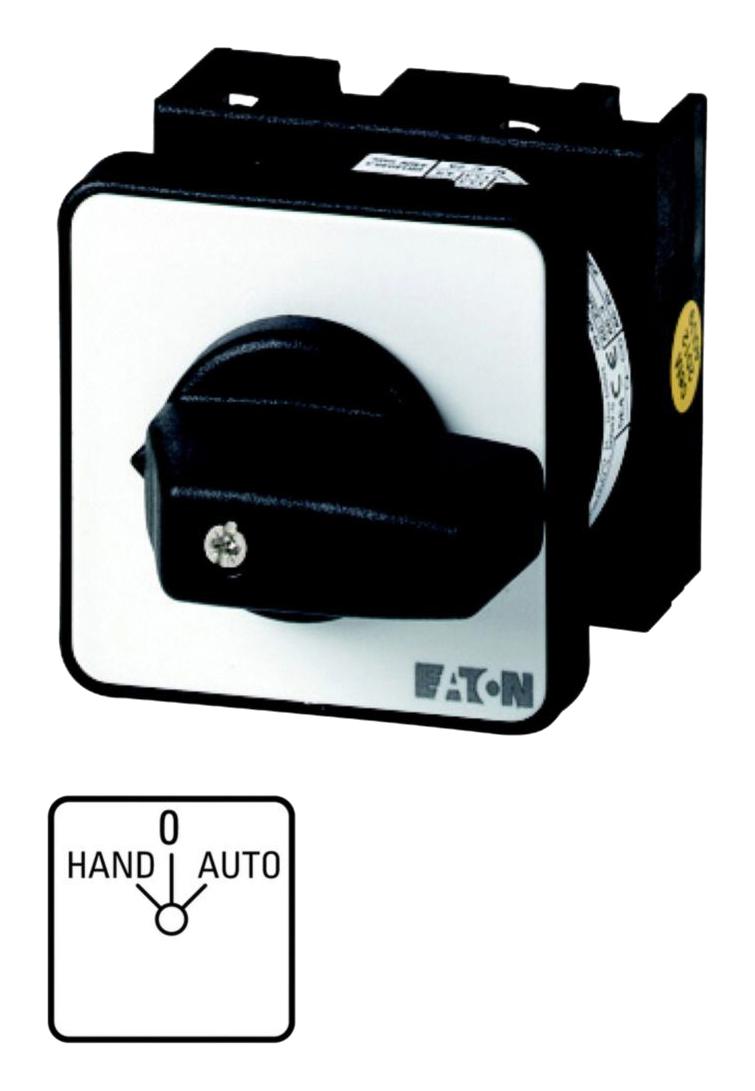

T0-3-15433/EZ is a HAND-0-AUTO, 20A, 3 pole, T0 changeover switch. It is certified by UL Category Control No.: NLRV, CSA-C22.2 No. 94, IEC/EN 60204, CSA-C22.2 No. 60947-4-1-14, VDE 0660, UL File No.: E36332, CSA Class No.: 3211-05, CSA, UL 60947-4-1, CSA File No.: 012528, IEC/EN 60947-3, IEC/EN 60947, UL.
- Fitted with 0 (off) position, black thumb grip and front plate
- Maximum rated operation voltage Ue AC is 690V
- Rated operational current (Ie) at AC-3, 220V, 230V, 240V is 11.5A
- Rated operational power at AC-3, 415V, 50Hz is 5.5KW
- Number of switch positions are 3, centre mounting
- Front shield size is 48 x 48mm, switching angle is 45°, M3.5 terminal screw size
- Degree of protection is IP65, NEMA 12, NEMA 1
- Rated conditional short-circuit current (Iq) is 6KA
- Ambient operating temperature range from -25°C to 50°C
- Product dimension is 115mm length/depth x 48mm height x 48mm width
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | T0-3-15433/EZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
