Description

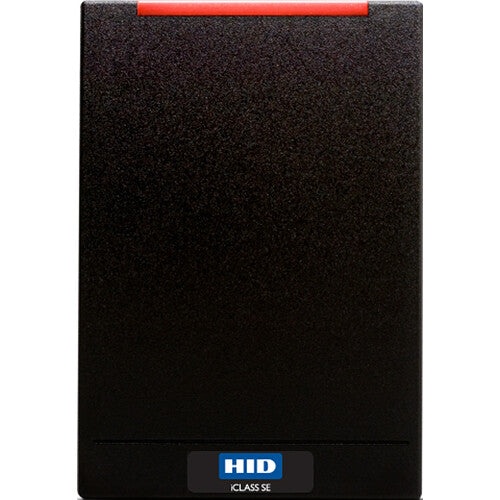

HID R40 Overview
Implement access control, security, and authentication at an entryway with the Prox Premier Wall Switch Mount Reader from HID. This reader utilizes a Wiegand communication protocol to provide a read range up to 2.8". Technologies supported include 125 kHz HID Prox, AWID, EM4102, 13.56 MHz, and NFC credentials. It is housed in an IP55-rated enclosure for protection from water and dust.
Intelligent Power Management (IPM) reduces power consumption by up to 43%
HID Mobile Access enables users to use their mobile phone as an access credential
HID Reader Manager for device management
Designed to be mounted in a single-gang switch box with a slotted mounting plate
Unit can be IP65 rated for additional protection from water and dust when it is installed with optional IP65GSKT gasket (available separately)
Pigtail termination
UPC: 639399172816
Items Included
- HID Prox Premier Wall Switch Mount Reader
- Limited Lifetime Warranty
Additional Resources
No additional resources available
HID R40 Specs
General
| Compatibility |
Various HID Proximity, AWID, EM4102, Seos, NFC
|
| Range |
Read Range
HID Prox, ID-1 Cards: 2.8" / 7 cm HID Prox, Tag/Fobs: 2.0" / 5 cm Seos: 1.2" / 3 cm |
Wireless
| Wireless |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: HID Mobile Access |
| Communication |
Wiegand, Clock-and-Data
|
Power
| Power Source |
DC Input
|
| DC Input Power |
5 to 16 VDC
|
| Power Consumption |
1.4 W (Standby)
|
| Operating Current |
85 mA (Typical)
200 mA (Maximum) |
Physical
| Mounting |
1x Wall
|
| Color |
Black
|
| Material of Construction |
Polycarbonate
|
| Environmental Resistance |
Dust/Water-Resistant (IP55)
|
| Certifications |
FCC, IC, UL, cUL
|
| Operating Conditions |
-31 to 150°F / -35 to 65°C at 5 to 95% Humidity
|
| Storage Conditions |
-67 to 185°F / -55 to 85°C
|
| Dimensions |
4.8 x 3.3 x 1" / 12.2 x 8.4 x 2.5 cm
|
| Weight |
7.8 oz / 222 g
|
Packaging Info
| Package Weight |
0.655 lb
|
| Box Dimensions (LxWxH) |
7.1 x 4.85 x 1.8"
|
