Description

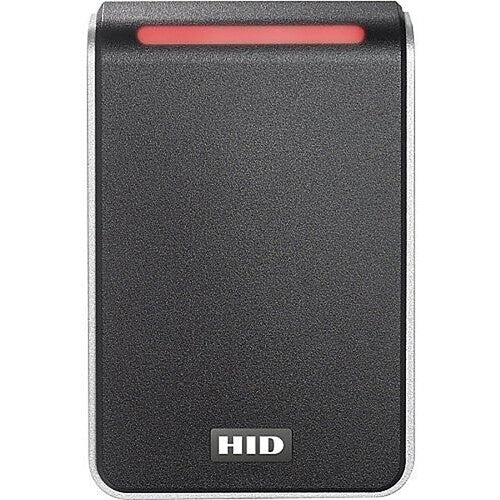

HID Signo 40 Overview
Implement access control, security, and authentication at an entryway with the Signo 40 Contactless Smart Card Reader from HID. This reader utilizes an OSDP and Wiegand protocol to provide a read range up to 4". Featuring multifactor authentication for security, the Signo 40 supports a myriad of technologies that include 125 kHz proximity, 13.56 MHz MIFARE, and NFC credentials. It is housed in an IP65-rated enclosure for protection from water and dust.
Supports OSDP (Open Supervised Device Protocol) for bidirectional communication
Intelligent Power Management (IPM) can reduce power consumption by up to 43%
HID Mobile Access for enabling users to use their mobile phone as an access credential
Integrates into the HID Origo ecosystem
HID Reader Manager for device management
Designed to be mounted in a single-gang switch box with a slotted mounting plate
Terminal termination
UPC: 639399130854
Items Included
- HID Signo 40 Contactless Smart Card Reader (Terminal Connection)
- Limited Lifetime Warranty
Additional Resources
No additional resources available
HID Signo 40 Specs
General
| Compatibility |
Various 13.56 MHz (NFC) Credentials Seos, iCLASS SE, iCLASS SR, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa, CEPAS, Mobile Credentials via HID Mobile Access / 125 kHz Credentials HID Proximity, Indala Proximity, AWID Proximity, and EM Proximity
|
| Range |
Read Range
13.56 MHz: 1.6 to 4" / 4 to 10 cm 125 kHz: 2.4 to 4" / 6 to 10 cm |
Inputs/Outputs
| Other I/O |
Device I/O
Input: Tri-Color LED, Buzzer, Hold at Active Low Output: Tamper Relay, 0 to 60 VDC at 100 mA Maximum (Dry Contact) |
Wireless
| Wireless |
Bluetooth
*Built-In |
| Mobile App Compatible |
Yes: Android & iOS
App Name: HID Mobile Access |
| Communication |
Wiegand, Clock-and-Data, RS-485 Half Duplex (OSDP)
|
Power
| Power Source |
DC Input
|
| DC Input Power |
12 VDC
|
| Operating Current |
250 mA (Maximum)
75 mA (Typical) 65 mA (Standby) |
Physical
| Mounting |
Multiple Wall, Surface, Single-Gang Box
|
| Color |
Black / Silver
|
| Material of Construction |
Polycarbonate
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP65)
|
| Certifications |
UL294
|
| Operating Conditions |
-31 to 150°F / -35 to 65°C at 0 to 95% Humidity
|
| Storage Conditions |
-40 to 185°F / -40 to 85°C
|
| Dimensions |
4.8 x 3.1 x 0.8" / 121.5 x 80 x 19.5 mm
|
| Weight |
4.2 oz / 120 g
|
Packaging Info
| Package Weight |
0.41 lb
|
| Box Dimensions (LxWxH) |
7.3 x 5.4 x 1.7"
|
