Description

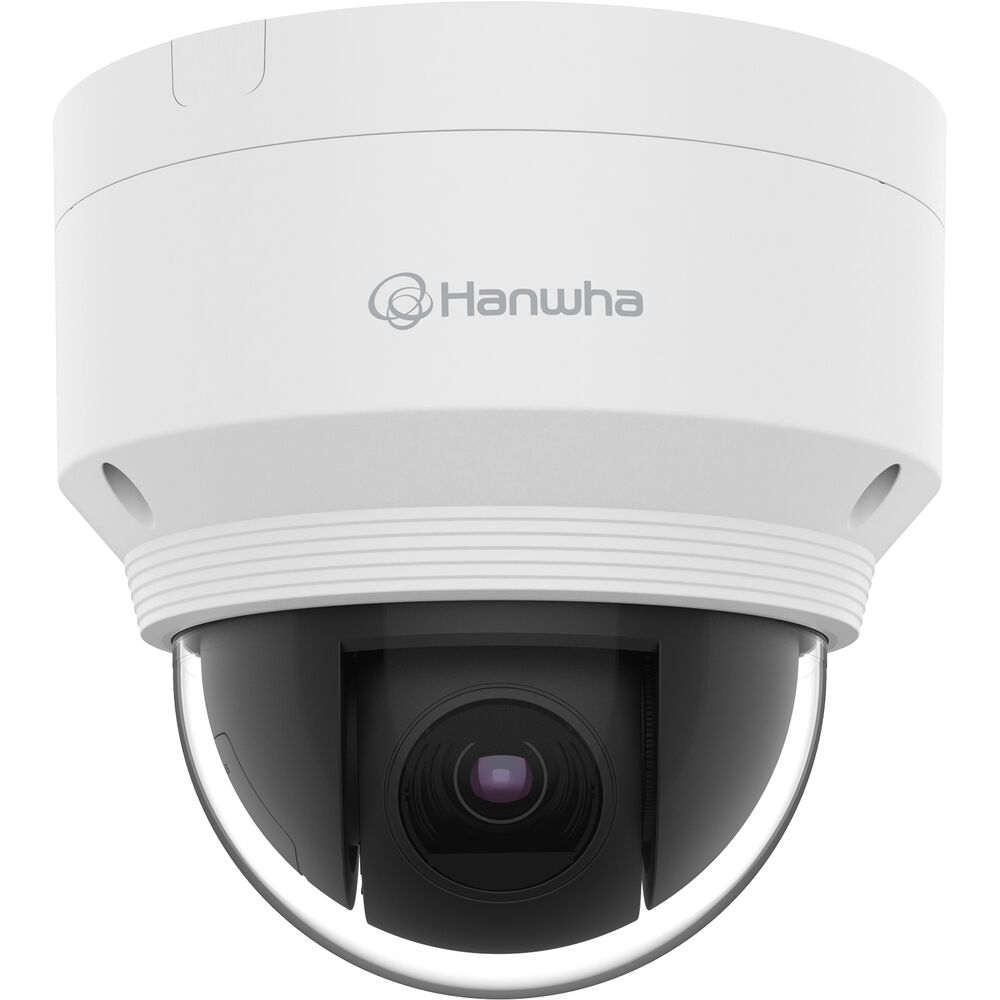

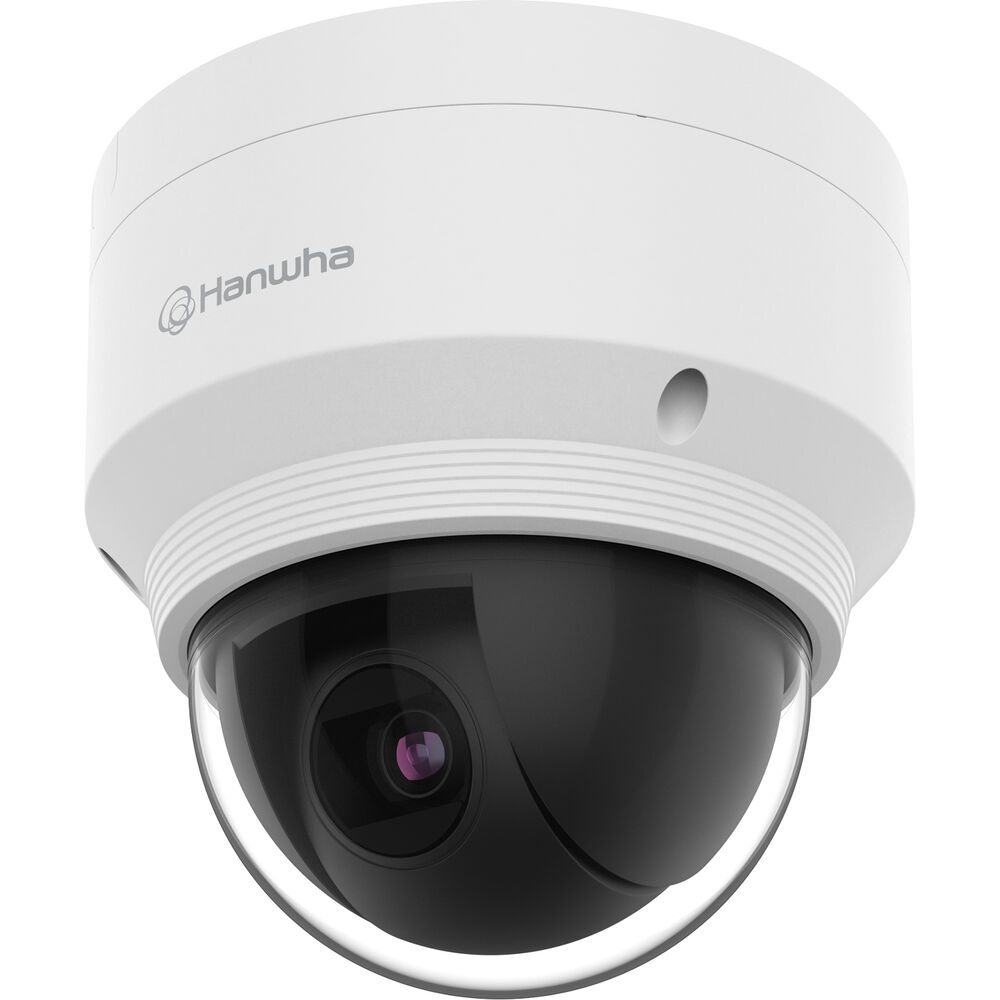

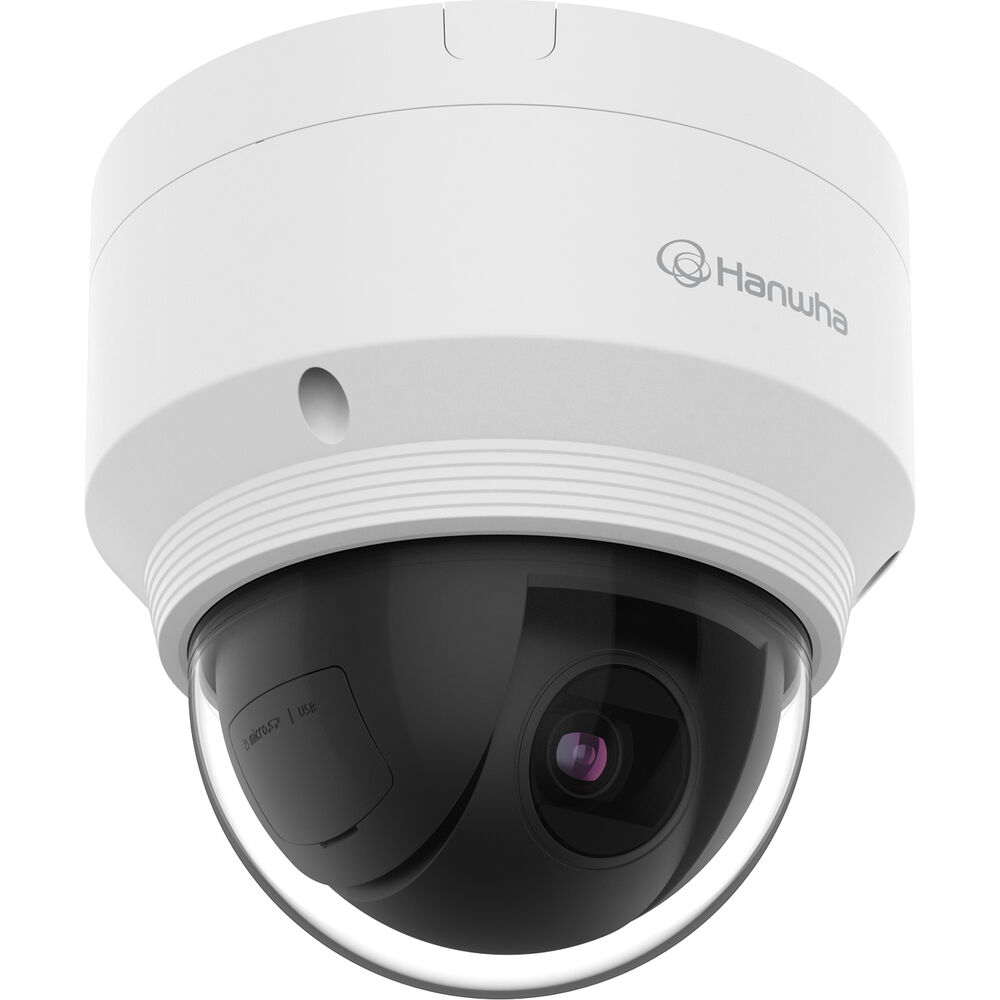

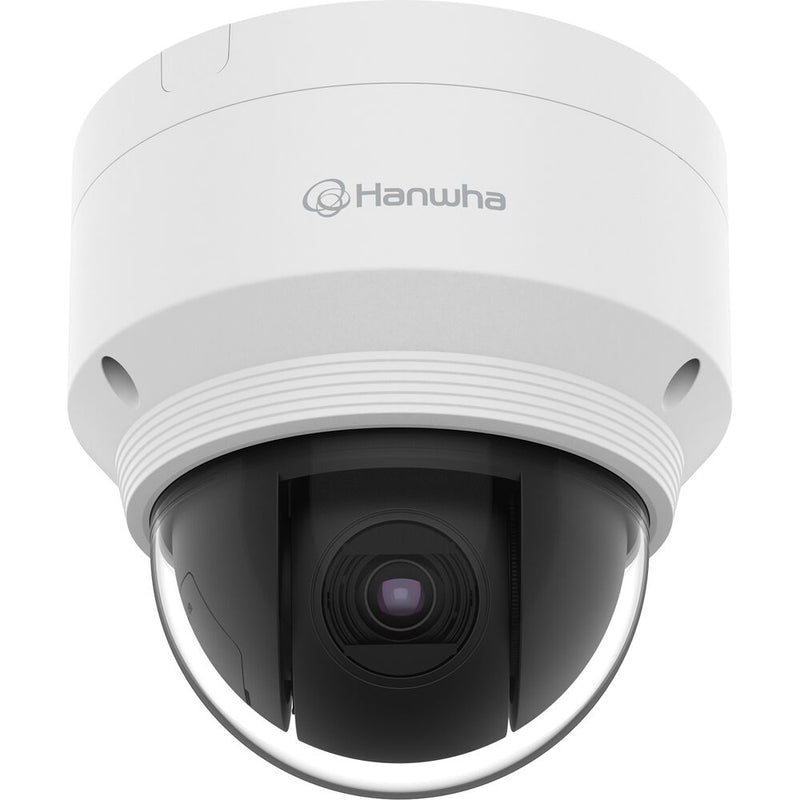

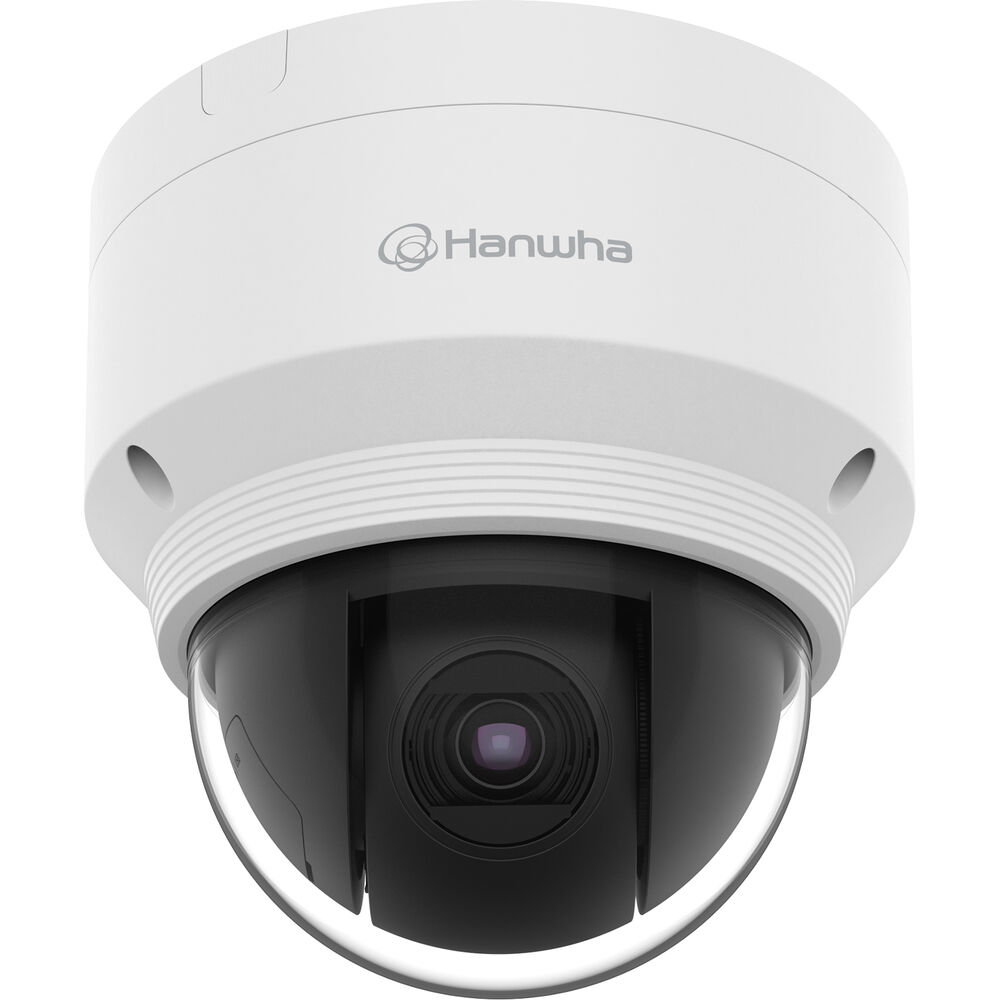

Hanwha Vision XNP-6120HW Overview
Securely monitor your surroundings with the XNP-6120HW 2MP Outdoor PTZ Network Dome Camera from Hanwha Vision. This unit uses a 1/2.8" CMOS sensor to capture 1080p resolution video at 60 fps. A 5.2-62.4mm varifocal lens delivers a 54.58 to 5.3° horizontal angle of view. The camera features endless panning, a -5 to 185° tilt range, and 12x optical zoom. Two-way audio is possible thanks to an audio input and output. Dual memory card slots each accept microSD/SDHC/SDXC cards (available separately) up to 512GB for 1TB of total storage. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
IR cut filter for day and night functionality
CBR and VBR
WiseStream II support
Unicast and multicast streaming
PTZ features include auto tracking, up to 300 presets, swing, up to six groups, trace, tour, auto run, and schedule
Analytics include directional detection, fog detection, face detection, motion detection, appear/disappear, enter/exit, loitering, tampering, virtual line, audio detection, and sound classification
Additional features include digital image stabilization (built-in gyro sensor), backlight compensation, highlight compensation, dynamic range (150 dB WDR and SSDR), digital noise reduction (SSNR V), defogging, gain control, white balance, privacy masking for up to 32 quadrangular zones, and flip/mirror video rotations
Items Included
- Hanwha Vision XNP-6120HW 2MP Outdoor PTZ Network Dome Camera
- Monitor Test Cable
- Template
- Power Terminal Block
- L Wrench
- Power Cable
- Audio/RS-485 Cable
- Alarm Cable
- Cable Bush
- 3 x Tapping Screws
- 3 x Plastic Anchors
Additional Resources
Hanwha Vision XNP-6120HW Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
5.2 to 62.4mm
|
| Field of View |
Horizontal: 54.58 to 5.3°
Vertical: 32.19 to 3° |
| Output Formats |
Composite:
720 x 480 Micro-USB: 1280 x 720 |
| Pan/Tilt |
Programmed
Pan: 360° at 350°/s Tilt: 190° (-5 to 185°) at 350°/s Manual Pan: 360° at 0.024 to 200°/s Tilt: 190° (-5 to 185°) at 0.024 to 200°/s |
| Video I/O |
1x Micro-USB (Unspecified Signal) Output
1x BNC (Unspecified SDI) Output |
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45
1x DC (12VDC) |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 5.2 to 62.4mm Lens:
Detect: 244.1 to 2722.1' / 74.4 to 829.7 m Observe: 97.8 to 1088.9' / 29.8 to 331.9 m Recognize: 48.9 to 544.3' / 14.9 to 165.9 m Identify: 24.3 to 272.3' / 7.4 to 83 m |
Exposure Control
| Shutter Speed |
1/12000 to 2 Second
|
| Minimum Illumination |
0.03 Lux (Color)
0.003 Lux (Black and White) |
Lens
| Focal Length |
5.2 to 62.4mm
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
32x
|
| Field of View |
Horizontal: 54.58 to 5.3°
Vertical: 32.19 to 3° |
| Maximum Aperture |
f/1.6 to 3
|
Video
| Output Formats |
Composite:
720 x 480 Micro-USB: 1280 x 720 |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080 up to 60.00 fps |
| Multi-View Streaming |
Yes
|
Control
| Pan/Tilt |
Programmed
Pan: 360° at 350°/s Tilt: 190° (-5 to 185°) at 350°/s Manual Pan: 360° at 0.024 to 200°/s Tilt: 190° (-5 to 185°) at 0.024 to 200°/s |
| Supported Control Protocols |
Bosch
Honeywell Panasonic Pelco-D Pelco-P RS-485 Samsung Vicon |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTCIP, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, SUNAPI (HTTP API), TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Dual Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
|
| Video I/O |
1x Micro-USB (Unspecified Signal) Output
1x BNC (Unspecified SDI) Output |
| Other I/O |
1x RJ45
1x 9-Pin (RS-485, Serial) |
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
AAC-LC, G.711, G.726
|
| Built-In Microphone |
No
|
| Memory |
1 GB RAM / 256 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Audio Detection, Camera Sabotage/Tampering, Directional Detection, Entering/Exiting, Face Detection, Fog Detection, Loitering, Motion Detection, Motion Detection (8-Zones), Sound Classification, Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
1x DC (12VDC) |
| Power Consumption |
12 W
|
Environmental
| Operating Conditions |
-22 to 131°F / -30 to 55°C up to 90% Humidity
|
| Storage Conditions |
-22 to 131°F / -30 to 55°C up to 90% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
General
| Material of Construction |
Aluminum
|
| Certifications |
CE, EAC, FCC, NDAA, TAA, cUL
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Dimensions (W x H x D) |
6.6 x 6.4 x 6.6" / 168 x 161.5 x 168 mm
|
| Weight |
4.2 lb / 1.9 kg (Body Only)
|
Packaging Info
| Package Weight |
6.01 lb
|
| Box Dimensions (LxWxH) |
12.5 x 10.2 x 9.8"
|
