Description

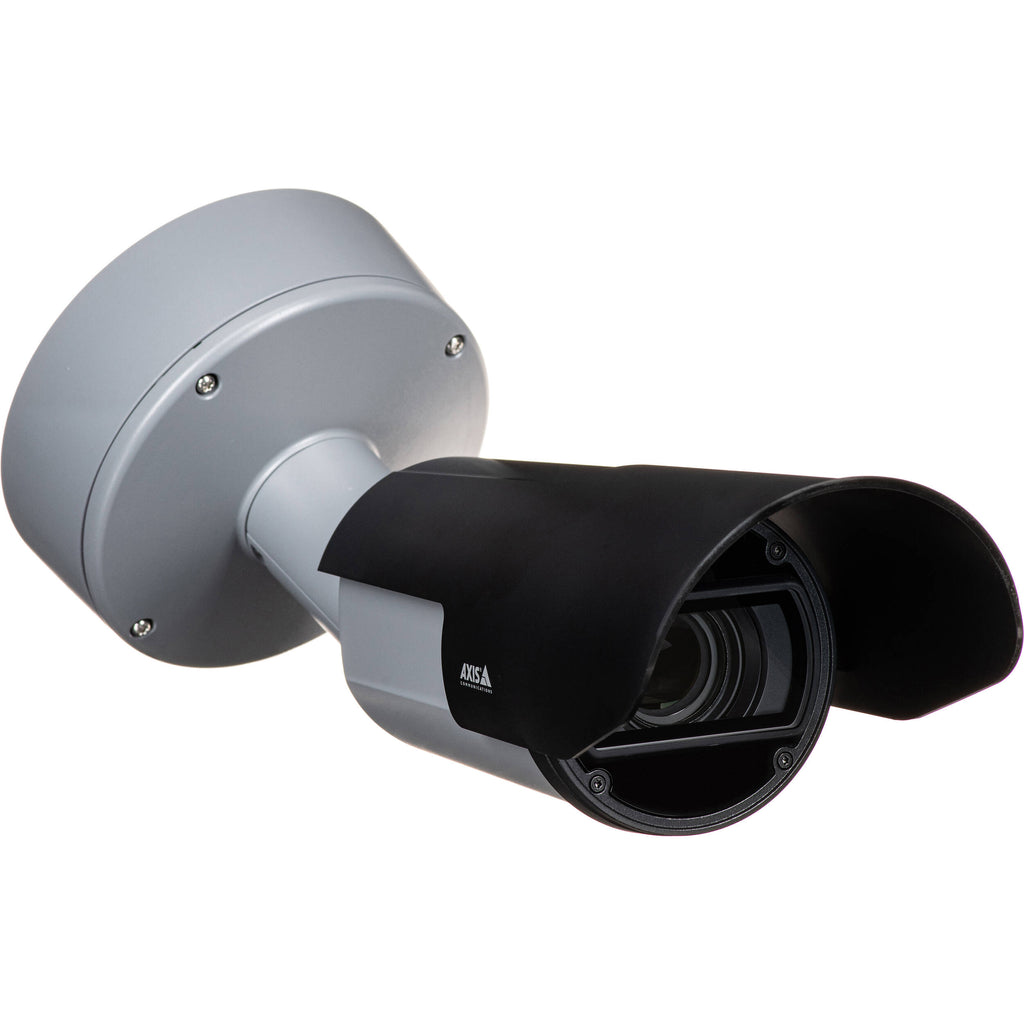

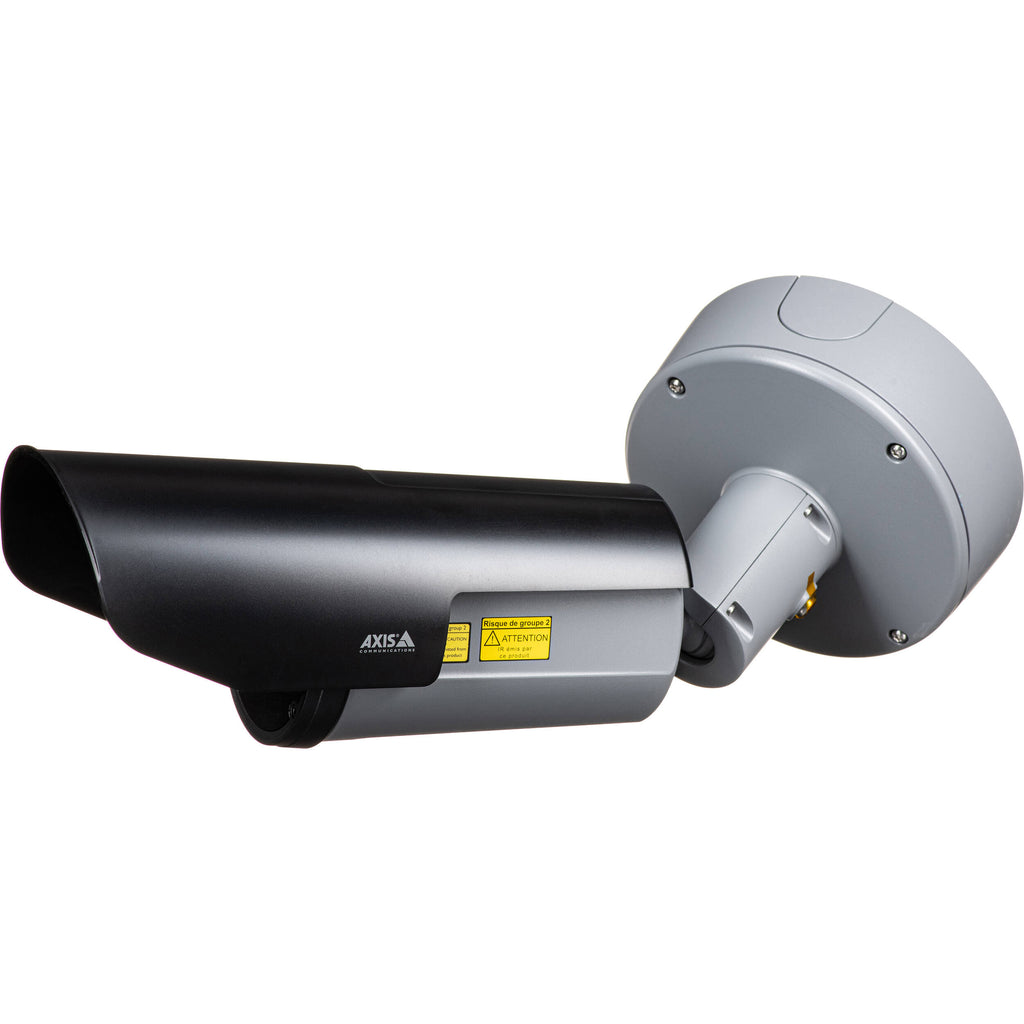

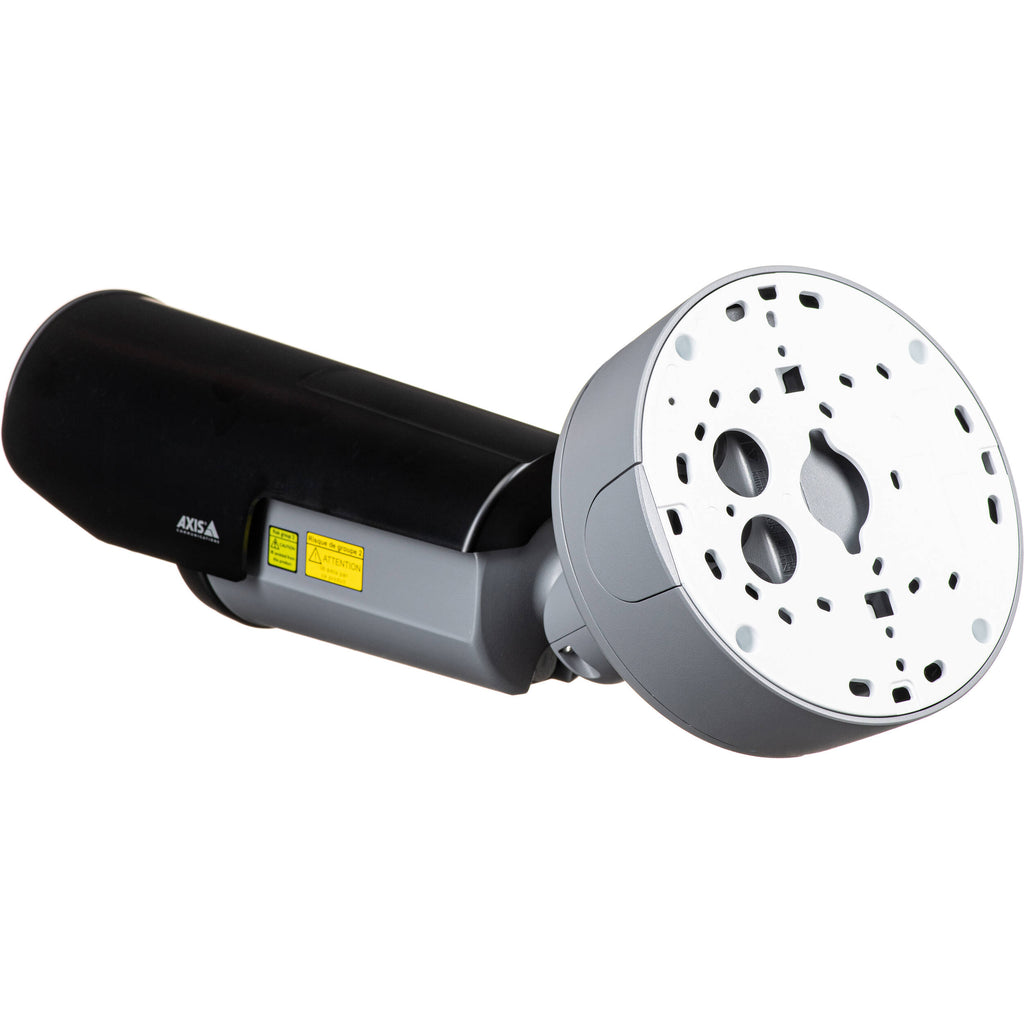

Axis Communications Q1800-LE-3 Overview
Capture license plates of moving vehicles day and night with the Q1800-LE-3 2MP Outdoor Network License Plate Verifier Kit from Axis Communications. This unit captures license plates of vehicles traveling at up to 124 mph from distances up to 328' away. It features a 1/2.8" progressive scan RGB CMOS image sensor to capture 1080p resolution video at 90 fps. IR LEDs provide night vision up to 164'. The camera's 7-137mm varifocal lens delivers a 38 to 2.3° horizontal angle of view. An onboard card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This bullet camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure for protection from inclement weather and impact.
Main Features
- Axis License Plate Verifier preinstalled
- Single lane coverage with optional edge analytics
- Analytics include Axis License Plate Verifier, Axis Scene Metadata, Axis Speed Monitor, Axis Video Motion Detection, active tampering alarm, and audio detection, with support for third-party applications
- Can be installed from a mounting height up to 33'
- Axis Lightfinder 2.0 technology, OptimizedIR, and forensic WDR for challenging and low-light conditions
- Axis Zipstream technology lowers bandwidth and storage requirements
- Up to 20 unique and configurable video streams
- Controllable frame rate and bandwidth (VBR/ABR/MBR H.264/H.265)
- 3.9' minimum focus distance
- Electronic image stabilization
- PoE output to power an additional device
- Image settings include saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, 0, 90, 180, and 270° rotation including corridor format, mirroring, text and image overlay, dynamic text and image overlay, polygon privacy mask, and scene profiles (license plate)
- 3.5mm audio input
- Two-way audio support via edge-to-edge technology and network speaker pairing
- Supports microphone, speaker, and radar pairing
- Axis Edge Vault safeguards the device and offers secure key storage with FIPS 140-2 level 2 certification
- Built-in weathershield withstands winds up to 134 mph
- PVC and BFR/CFR free
Items Included
- Axis Communications Q1800-LE-3 2MP Outdoor Network License Plate Verifier Kit
- Axis License Plate Verifier License
- Terminal Block Connector
- RJ45 Cable
- Connector Guard
- Cable Gaskets
- Owner Authentication Key
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications Q1800-LE-3 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
7 to 137mm
|
| Field of View |
Horizontal: 38 to 2.3°
Vertical: 22 to 1.3° |
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45 (10 to 28VDC)
1x RJ45 (20 to 24VAC) |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 7 to 137mm Lens:
Detect: 317.3 to 6181.8' / 96.7 to 1884.2 m Observe: 126.0 to 2453.1' / 38.4 to 747.7 m Recognize: 63.3 to 1236.2' / 19.3 to 376.8 m Identify: 31.8 to 618.1' / 9.7 to 188.4 m |
Exposure Control
| Shutter Speed |
1/111000 to 2 Second
|
| Automatic Gain Control |
Yes
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.06 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
7 to 137mm
|
| Optical Zoom Ratio |
19.6x
|
| Field of View |
Horizontal: 38 to 2.3°
Vertical: 22 to 1.3° |
| Maximum Aperture |
f/1.5 to 4
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080 up to 90 fps |
| Multi-View Streaming |
Yes, 20 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: -180 to 180°
Vertical: -90 to 0° Rotation: -90 to 270° |
Networking
| Security |
Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
|
| Supported Protocols |
Bonjour, CDP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, mDNS, MQTT, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSH, SSL/TLS, syslog, TCP, UDP, UPnP, USGv6, Zero Configuration
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Mono Mic/Line Input
|
| Other I/O |
1x RJ45
1x Block 4-Pin |
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, LPCM, Opus
|
| Built-In Microphone |
No
|
| Memory |
2048 MB RAM / 8192 MB Flash
|
| External Storage Options |
Cloud, NAS
|
System Integration
| Analytics |
Audio Detection, Camera Sabotage/Tampering, License Plate Recognition, Motion Detection, Scene Change Detection, Vehicle Detection, Vehicle Speed
|
| Built-In Installation Aids |
Level Grid, Pixel Counter, Remote Focus, Remote Zoom
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x RJ45 (10 to 28VDC)
1x RJ45 (20 to 24VAC) |
| Power Consumption |
PoE: 12.6 to 25.5 W
10 to 28 VDC 11 to 29 W |
Environmental
| Operating Conditions |
-40 to 140°F / -40 to 60°C at 10 to 100% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C at 5 to 95% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
General
| Material of Construction |
Aluminum
|
| Certifications |
BIS, CAN/CSA, CE, EN, ETSI, EU, FCC, ICES, IEC, IEC/EN, IEC/EN/UL, KC, NDAA, RCM, RCM, REACH, RoHS, TAA, UKCA, UL, VCCI, cUL
|
| Illumination |
850 nm IR LEDs up to 164' / 50 m
|
| Supported Languages |
Czech
Dutch English Finnish French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Dimensions (W x H x D) |
5.5 x 7.2 x 18.3" / 139 x 183 x 464 mm
|
| Weight |
7.0 lb / 3200 g (Body Only)
|
Packaging Info
| Package Weight |
8.975 lb
|
| Box Dimensions (LxWxH) |
17.8 x 9.3 x 7.8"
|
