Description
Hanwha Vision QNF-8010 Overview

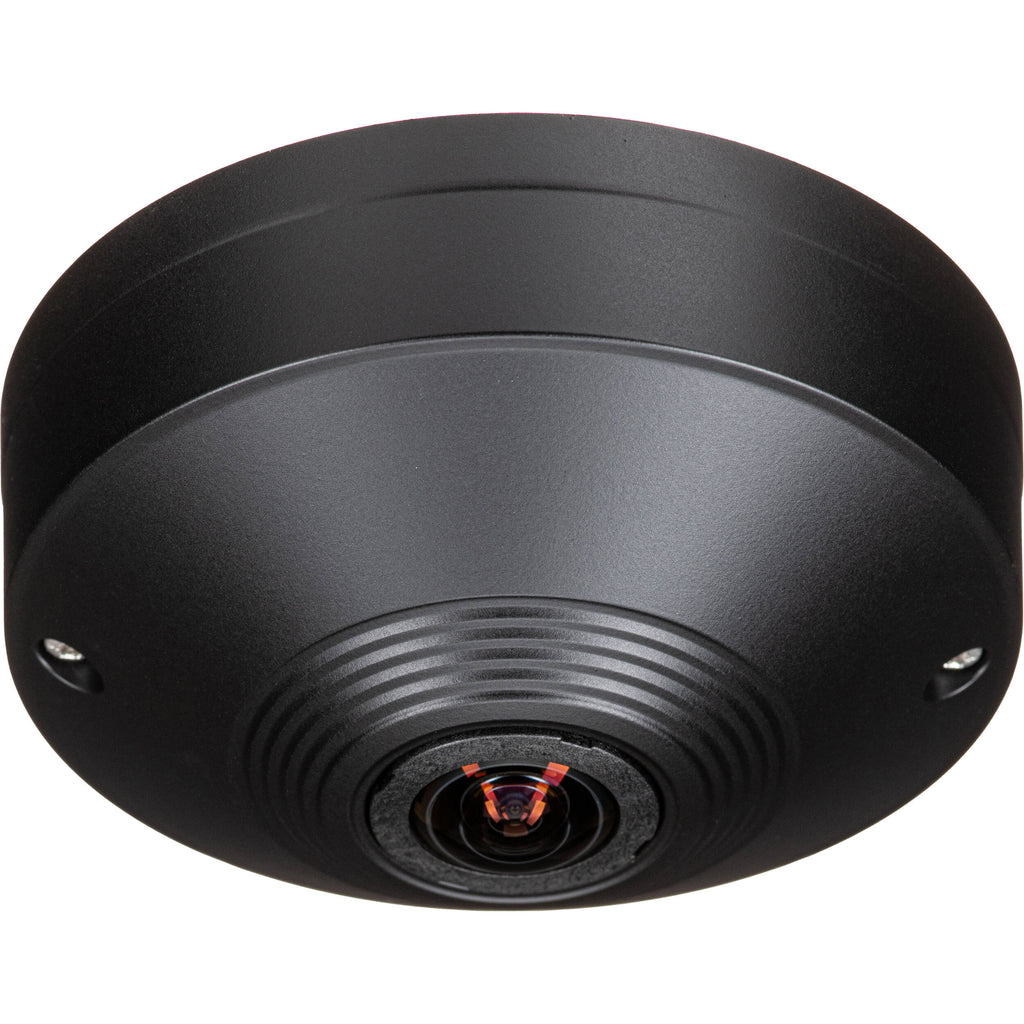

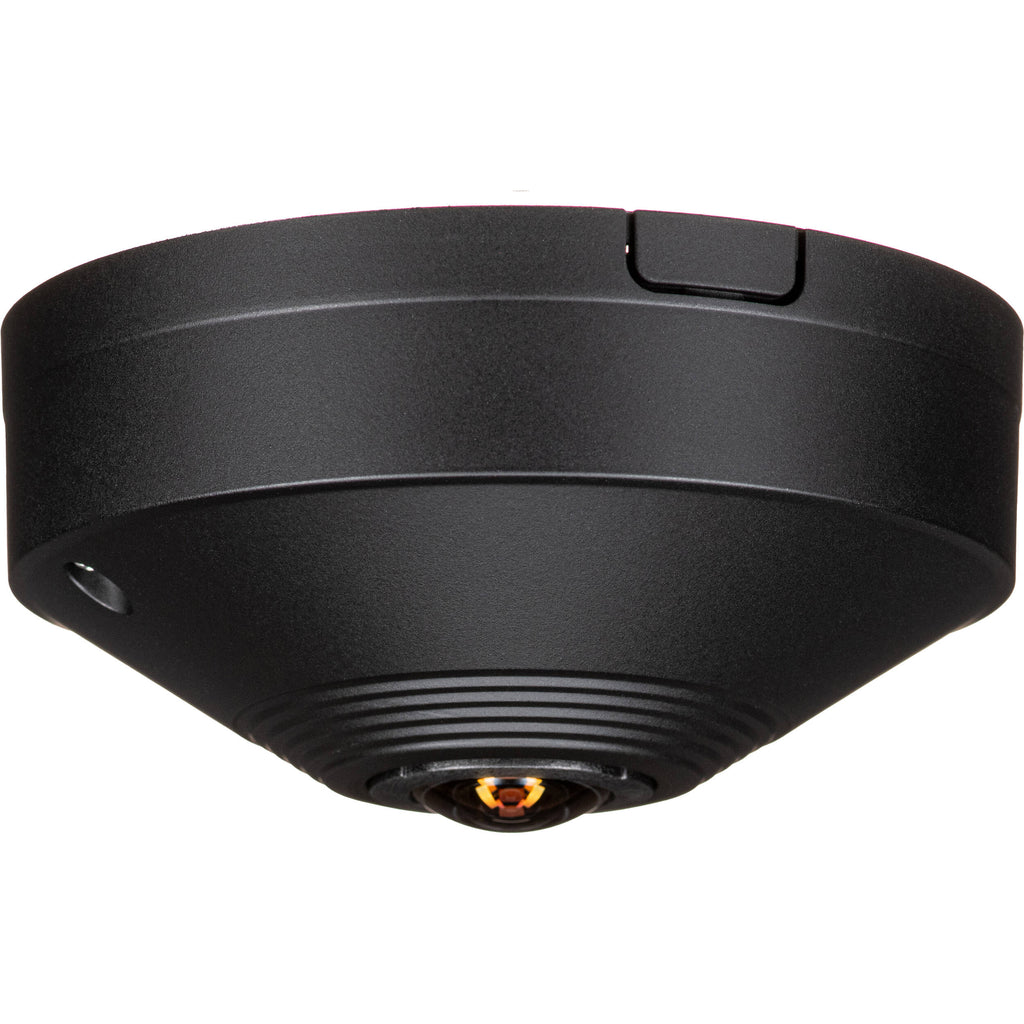

Monitor a room or hallway with the QNF-8010B 6MP Indoor Fisheye Network Dome Camera from Hanwha Techwin. This unit uses a 1/1.8" CMOS sensor to capture 2048 x 2048 resolution video at 30 fps. Additionally, the camera offers double panorama, single panorama, and quad views in a myriad of resolutions. The camera is equipped with a 1.14mm fixed lens that delivers a 187° angle of view (horizontal, vertical, and diagonal). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot supports microSD cards up to 256GB (available separately).
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
Day and night switching
Unicast and multicast streaming
On-camera dewarping
Digital PTZ
Up to 6 users in unicast mode
CBR and VBR
WiseStream II support
0.98' minimum object distance
Analytics include motion detection, defocus detection, tampering, people counting, and heatmap
Additional features include backlight compensation, highlight compensation, dynamic range (120 dB WDR, SSDR), digital noise reduction (SSNR V), privacy masking for up to 6 rectangular zones, gain control, white balance, and flip/mirror video rotation
Compatible with Chrome, Internet Explorer 11, Safari (macOS only), Firefox (Windows 16-bit only), and Edge
UPC: 849688017036
Items Included
- Hanwha Vision QNF-8010B 6MP Indoor Fisheye Network Dome Camera (Black)
- Monitor Testing Cable
- Template
- L Wrench
Additional Resources
Hanwha Vision QNF-8010 Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
1.14mm
|
| Field of View |
Horizontal: 187°
Vertical: 187° Diagonal: 187° |
| Output Formats |
Composite:
720 x 480 |
| Video I/O |
1x BNC (Composite) Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 6 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 1.14mm Lens:
Detect: At 82.0' / 25 m Observe: At 32.8' / 10 m Recognize: At 16.4' / 5 m Identify: At 8.2' / 2.5 m |
Exposure Control
| Shutter Speed |
1/12000 to 2 Seconds
|
| Minimum Illumination |
0.2 Lux (Color)
|
Lens
| Focal Length |
1.14mm
|
| Field of View |
Horizontal: 187°
Vertical: 187° Diagonal: 187° |
| Maximum Aperture |
f/2.5
|
Video
| Output Formats |
Composite:
720 x 480 |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2048 x 2048 up to 30.00 fps |
| Multi-View Streaming |
Yes
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, SUNAPI (HTTP API), TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
|
| Video I/O |
1x BNC (Composite) Output
|
| Other I/O |
1x RJ45
|
| Built-In Microphone |
No
|
| Memory |
1024 MB RAM / 256 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Camera Sabotage/Tampering, Defocus Detection, Heat Mapping, Motion Detection, Motion Detection (8-Zones), People Counting
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 4.6 to 6.4 W
|
Environmental
| Operating Conditions |
14 to 131°F / -10 to 55°C up to 90% Humidity
|
| Storage Conditions |
-58 to 140°F / -50 to 60°C up to 90% Humidity
|
| Environmental Resistance |
Dust/Water-Resistant (IP42)
|
General
| Material of Construction |
Plastic
|
| Certifications |
CE, EAC, FCC, NDAA, cUL
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| OS Compatibility |
Windows 7 to 10 / macOS 10.12 to 10.14
|
| Dimensions (W x H x D) |
3.9 x 1.9 x 3.9" / 99 x 49 x 99 mm
|
| Weight |
0.7 lb / 320 g (Body Only)
|
Packaging Info
| Package Weight |
1.07 lb
|
| Box Dimensions (LxWxH) |
6.3 x 5.7 x 5.2"
|
