Description
Hanwha Vision ANE-L7012L Overview

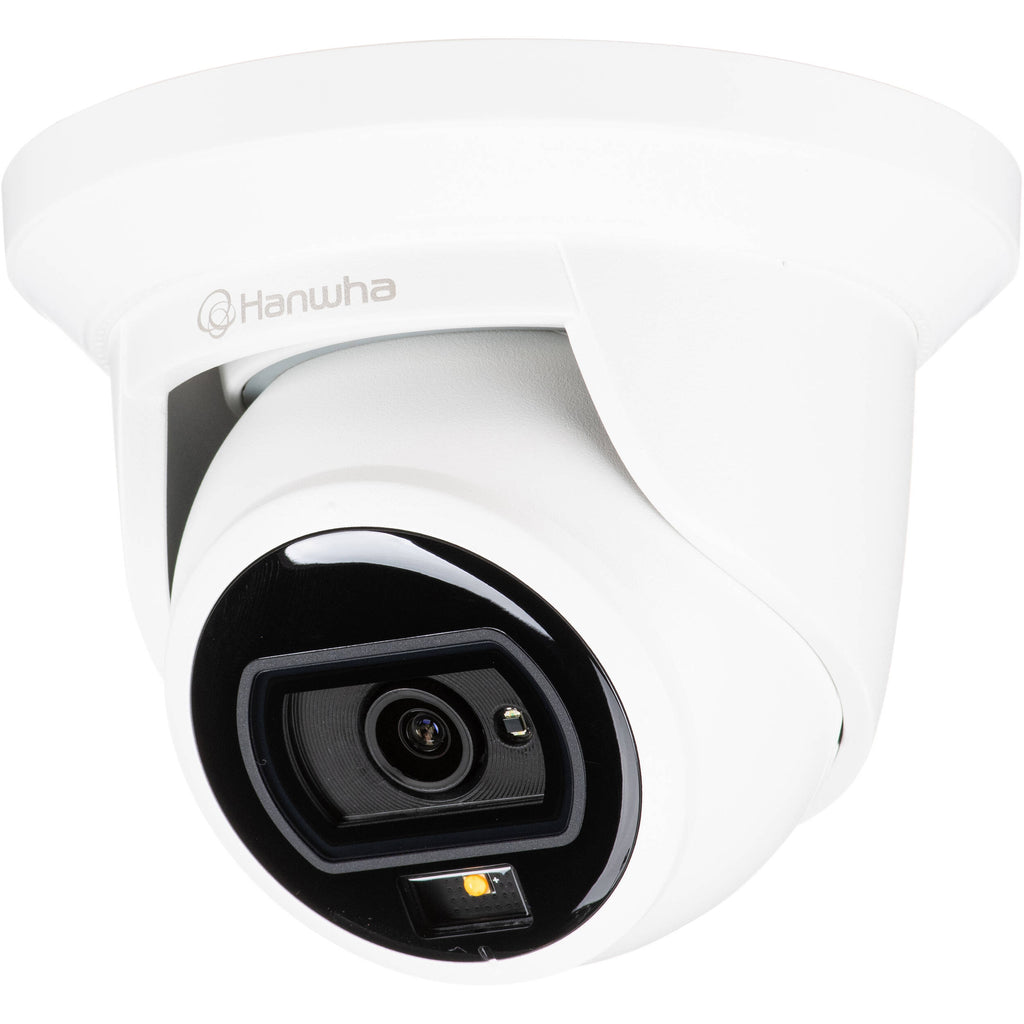

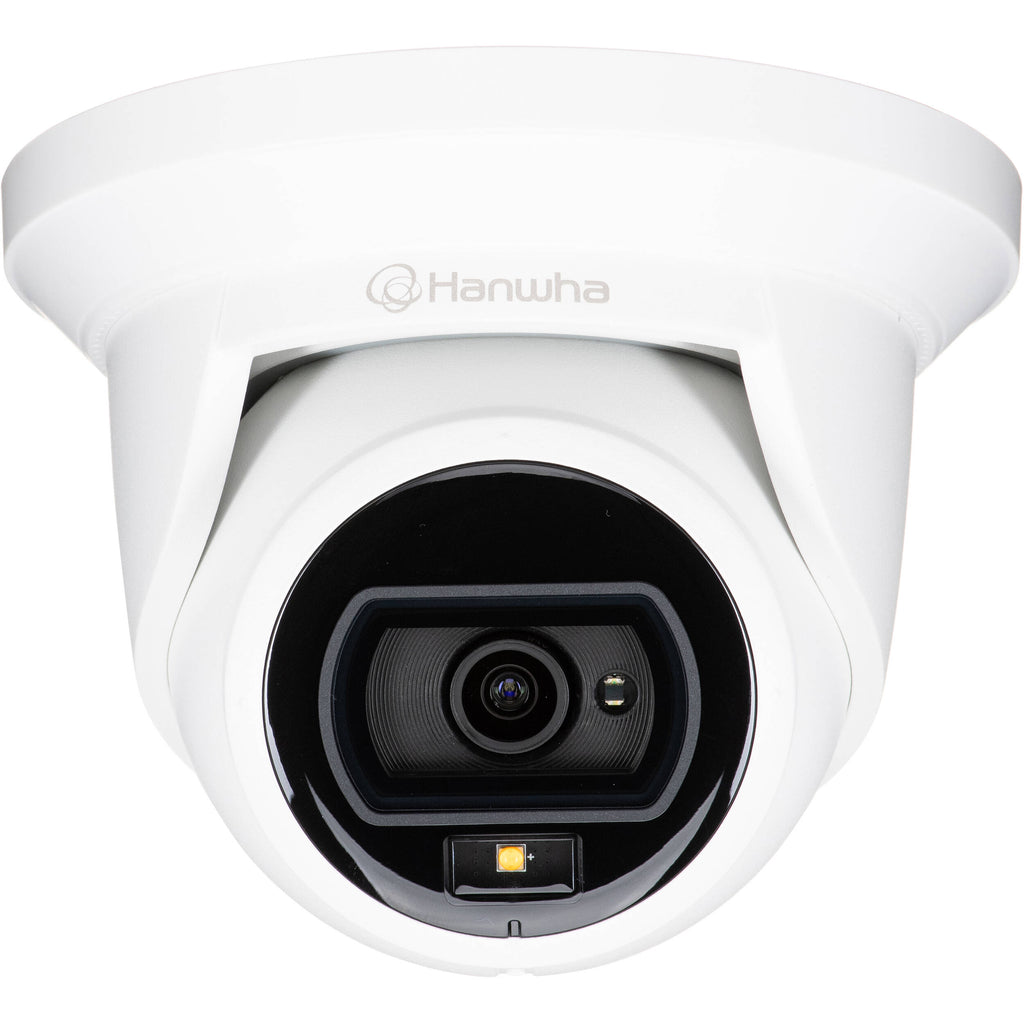

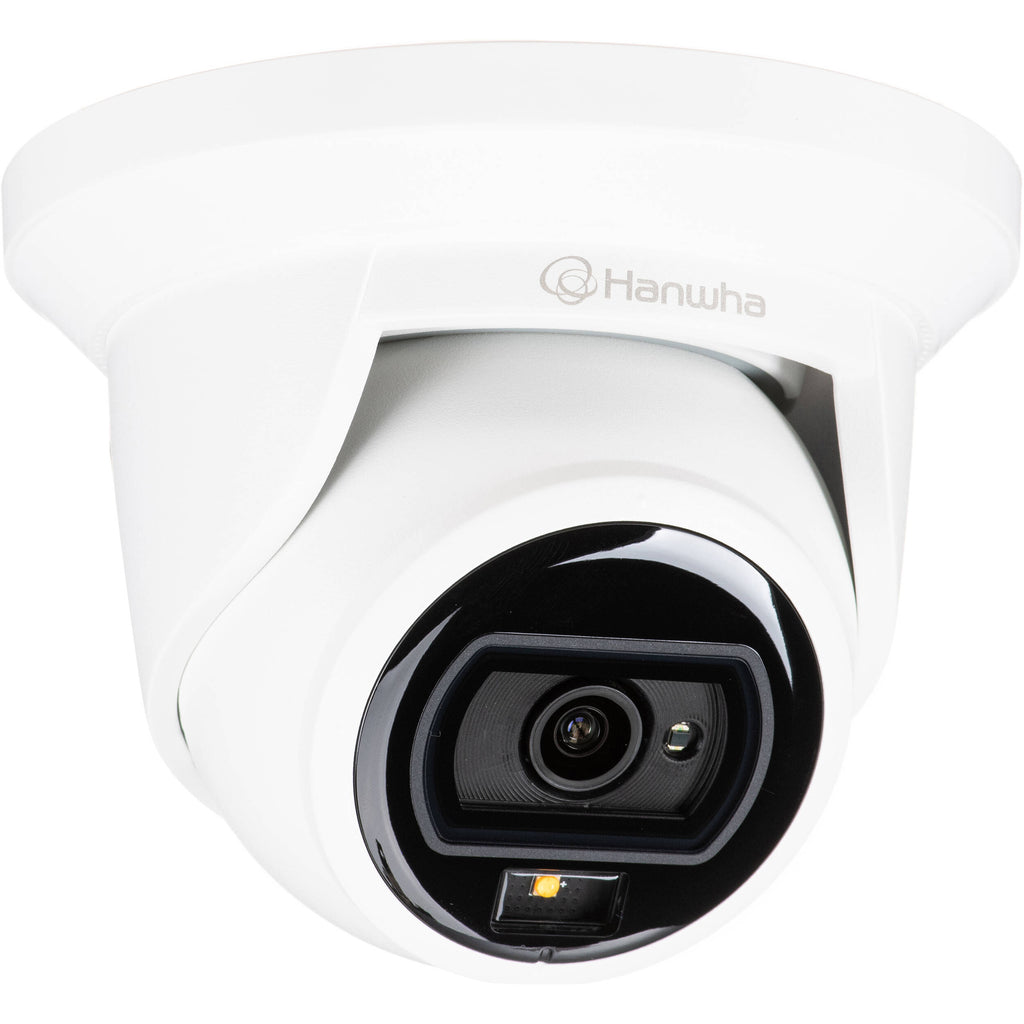

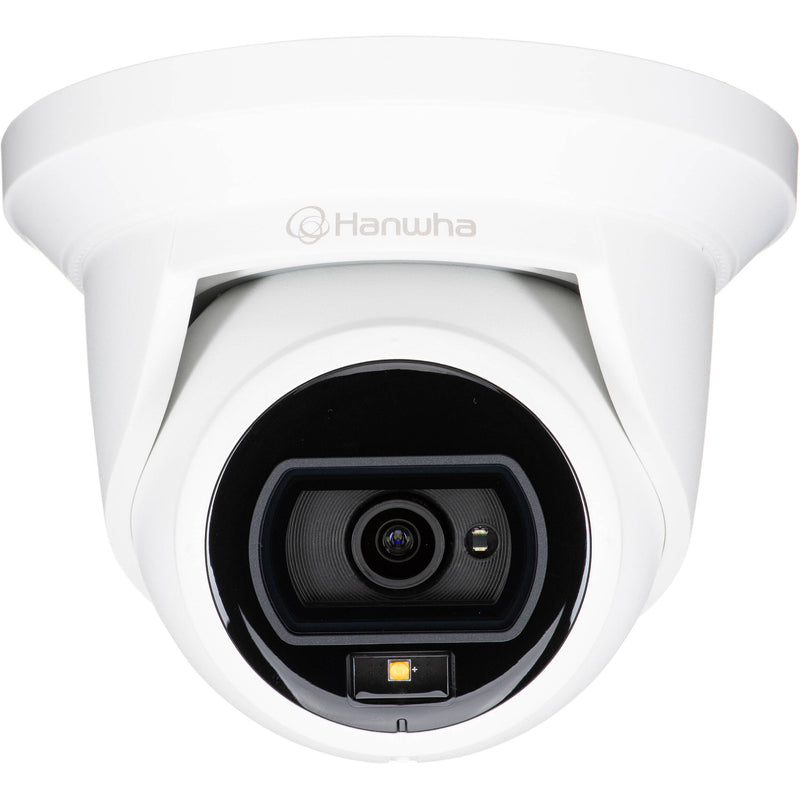

Securely monitor your surroundings with the ANE-L7012L 4MP Outdoor Network White Light Flateye Camera from Hanwha Vision. This unit uses a 1/2.8" CMOS image sensor to capture 2560 x 1440 resolution video at 30 fps. White light illumination provides visibility for up to 66' in low-light conditions. The camera's 3mm fixed lens delivers a 97° horizontal field of view. An onboard memory slot accepts an microSD/SDHC/SDXC card up to 128GB. Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
IR cut filter for day and night functionality
CBR and VBR
WiseStream II support
Unicast and multicast streaming
3.6' minimum object distance
Flip, mirror, and hallway view (90, 270°) video rotation for each channel
Light alarm supported
Analytics include: motion detection for up to four polygonal zones, tampering, defocus detection, virtual area (intrusion, enter, exit), and virtual line (crossing, direction)
Additional features include: lens distortion correction, backlight compensation, dynamic range (120 dB WDR, SSDR), digital noise reduction (SSNR), gain control, adjustable white balance, and privacy masking for up to six rectangular zones
Supported browsers include: Chrome, Safari, Firefox, and Edge
Items Included
- Hanwha Vision ANE-L7012L 4MP Outdoor Network White Light Flateye Camera
- Template
- Torx L Wrench
- RJ45 Waterproof Accessory
Additional Resources
Hanwha Vision ANE-L7012L Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
3mm
|
| Field of View |
Horizontal: 97°
Vertical: 53° Diagonal: 113° |
| Power I/O |
1x RJ45 Input
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 3mm Lens:
Detect: At 148.62' / 45.30 m Observe: At 59.45' / 18.12 m Recognize: At 29.72' / 9.06 m Identify: At 14.86' / 4.53 m |
Exposure Control
| Shutter Speed |
1/12000 to 1/5 Second
|
| Minimum Illumination |
0.05 Lux (Color)
|
Lens
| Focal Length |
3mm
|
| Field of View |
Horizontal: 97°
Vertical: 53° Diagonal: 113° |
| Maximum Aperture |
f/1.2
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2560 x 1440 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 350°
Vertical: 0 to 75° Rotation: 0 to 360° |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
|
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, SUNAPI (HTTP API), TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum]
|
| Other I/O |
1x RJ45
|
| Built-In Speaker |
No
|
| Memory |
512 MB RAM / 256 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Camera Sabotage/Tampering, Defocus Detection, Directional Detection, Entering/Exiting, Intrusion Detection, Motion Detection (4-Zones), Virtual-Line Crossing Detection
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 Input
|
| Power Consumption |
PoE: 7.6 W
|
General
| Material of Construction |
Aluminum, Plastic
|
| Environmental Resistance |
Weather/Dust/Water-Resistant (IP67)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Certifications |
FCC, ICES, CE, UKCA, EN, UL, CAN/CSA, IEC/EN, EAC, NDAA
|
| Operating Conditions |
-22 to 131°F / -30 to 55°C up to 95% Humidity
|
| Startup Temperature |
-4°F / -20°C
|
| Storage Conditions |
-22 to 131°F / -30 to 55°C
|
| Illumination |
3000K White LED up to 65.6' / 20 m
|
| Supported Languages |
Czech
Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Turkish |
| OS Compatibility |
Computer: Windows / macOS / Linux / Chrome OS
Mobile: Android/iOS |
| OS Compatibility |
Windows
macOS Linux Chrome OS |
| Mobile App Compatible |
Yes: Android & iOS
|
| Dimensions (W x H x D) |
4.9 x 3.4" / 125 x 87.4 mm
|
| Weight |
1.4 lb / 620 g (Body Only)
|
Packaging Info
| Package Weight |
1.94 lb
|
| Box Dimensions (LxWxH) |
8.9 x 7.1 x 6.3"
|
