Description

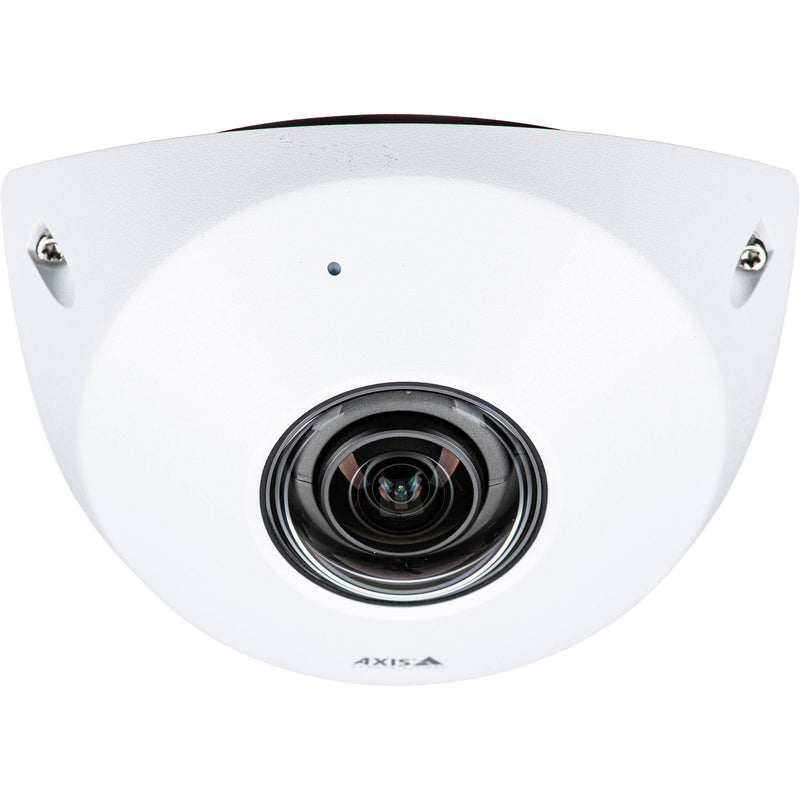

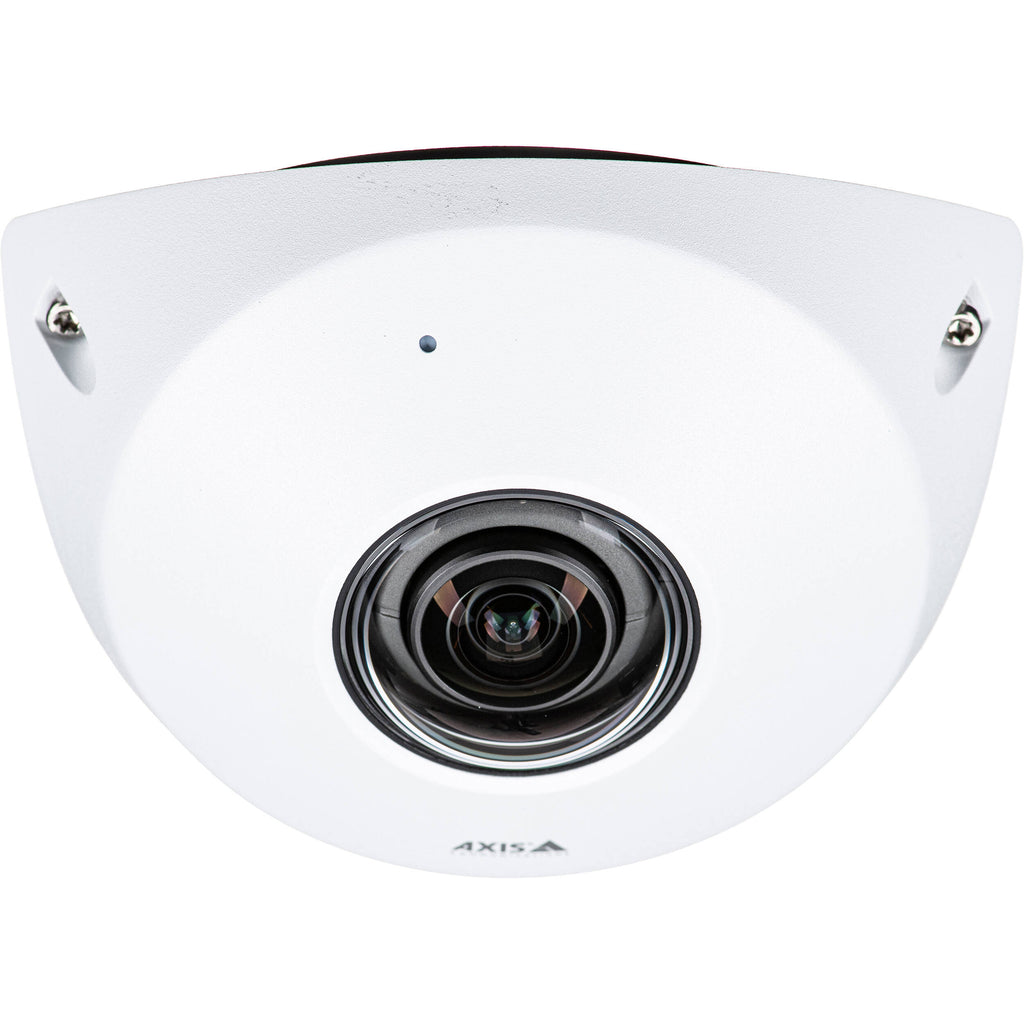

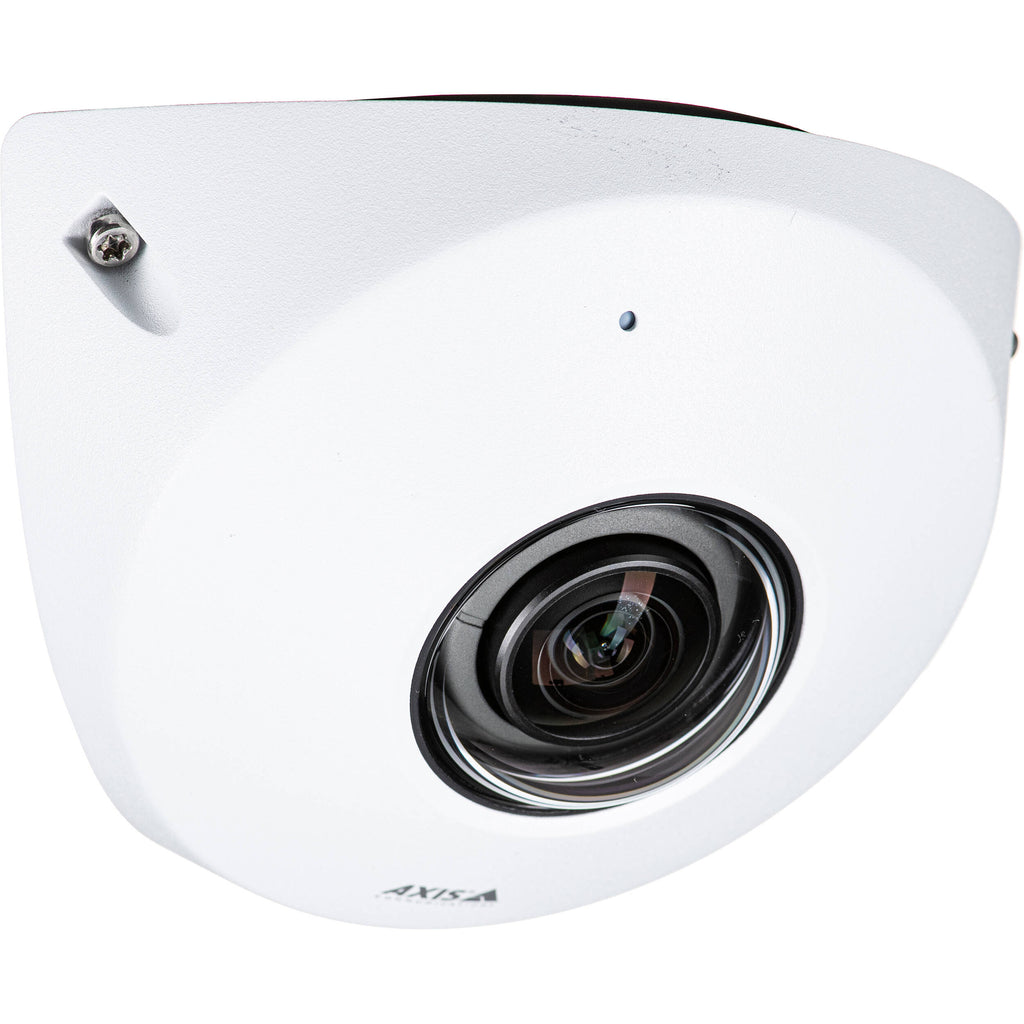

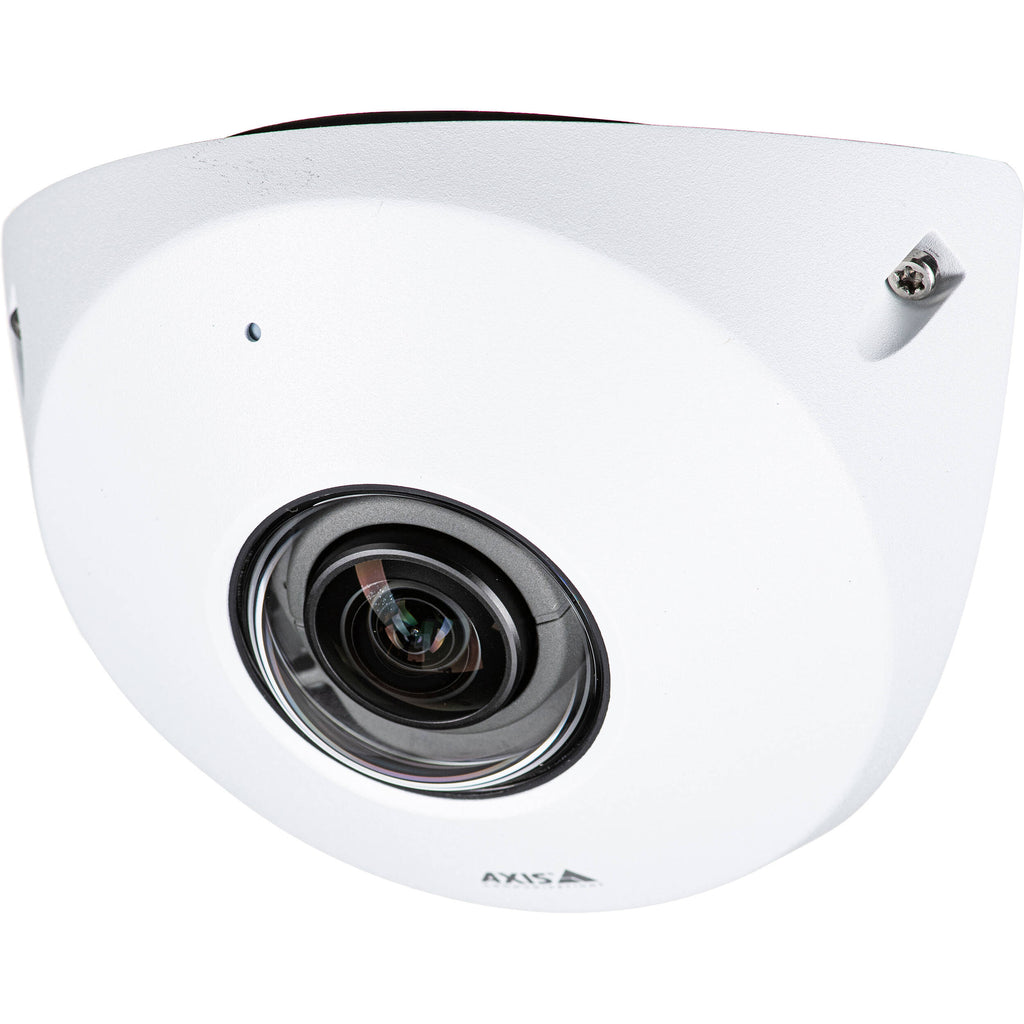

Axis Communications P9117-PV Overview
Securely monitor your surroundings with the white P9117-PV 4MP Outdoor Network Corner-Mount Camera from Axis Communications. This camera uses a 1/1.8" progressive scan RGB CMOS sensor to capture 6MP resolution video at up to 60 fps. The camera's 1.1mm fixed stereographic lens delivers a 176° horizontal angle of view. A built-in microphone enables the camera to pick up audio. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately).
This corner-mount camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
Corner-mount camera with anti-ligature design
No blind spots
Axis Lightfinder technology for visibility in low-light conditions
Automatic IR cut filter for day and night switching
Digital PTZ
Multiple individually configurable streams in H.265, H.264, and MJPEG
Axis Zipstream technology lowers bandwidth and storage requirements
Controllable frame rate and bandwidth (VBR/ABR/MBR H.264 and H.265)
Video streaming indicator
Forensic WDR up to 120 dB
3D-DNR/2D-DNR
Image settings include saturation, contrast, brightness, sharpness, local contrast, tone mapping, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring, dynamic text and image overlay, and polygon privacy mask
Analytics include Axis Object Analytics, Axis Video Motion Detection, Axis Audio Analytics, Active tampering alarm, audio detection, and elevator door state detector, with support for third-party applications
Built-in cybersecurity with Axis edge vault
Built-in installation aids include pixel counter, digital roll, and level grid
Compatible with Axis Companion, Axis Camera Station, and VMS from Axis partners
Audio and I/O connectivity for two-way talk and speaker pairing via Axis T61 Mk II Audio and I/O Interfaces with portcast technology (available seperately)
PVC and BFR/CFR free
Items Included
- Axis Communications P9117-PV 6MP Outdoor Network Corner-Mount Camera
- RJ45 Tool Mounting
- Extra Screw Gaskets
- Extra Cable Gasket
- Owner Authentication Key
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications P9117-PV Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Focal Length |
1.1mm
|
| Field of View |
Horizontal: 176°
Vertical: 176° Horizontal: 115° Vertical: 100° |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45 Input
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 6 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 1.1mm Lens:
Detect: 69.9 to 99.1' / 21.3 to 30.2 m Observe: 27.9 to 39.4' / 8.5 to 12.0 m Recognize: 11.8 to 19.7' / 3.6 to 6.0 m Identify: 6.9 to 9.8' / 2.1 to 3.0 m |
Exposure Control
| Shutter Speed |
1/33500 to 1/5 Second
|
| Automatic Gain Control |
Yes
|
| Minimum Illumination |
0.17 Lux (Color)
0.04 Lux (Black and White) |
Lens
| Focal Length |
1.1mm
|
| Field of View |
Horizontal: 176°
Vertical: 176° Horizontal: 115° Vertical: 100° |
| Maximum Aperture |
f/2.2
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
2160 x 2160 up to 60.00 fps 2048 x 1536 up to 60.00 fps |
| Multi-View Streaming |
Yes
|
Control
| Camera Angle Adjustment |
Vertical: -180 to 180°
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection
|
| Supported Protocols |
Bonjour, CDP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, mDNS, MQTT, NTP, P2P, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SDK, SFTP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSH, SSL/TLS, syslog, TCP, UDP, UPnP, USGv6, Zero Configuration
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, LPCM, Opus
|
| Built-In Microphone |
Yes
|
| Built-In Speaker |
No
|
| Memory |
2048 MB RAM / 8192 MB Flash
|
| External Storage Options |
Cloud, NAS
|
System Integration
| Analytics |
Abandoned Object, Audio Detection, Camera Sabotage/Tampering, Motion Detection, Object Counting, Object Detection, Object Removal
|
| Built-In Installation Aids |
Digital Roll, Level Grid, Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x RJ45 Input
|
| Power Consumption |
PoE: 3.7 to 5.3 W
|
Environmental
| Operating Conditions |
5 to 122°F / -15 to 50°C at 10 to 85% Humidity
|
| Storage Conditions |
-40 to 149°F / -40 to 65°C
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Startup Temperature |
5°F / -15°C
|
General
| Material of Construction |
Polycarbonate
|
| Certifications |
BIS, CE, ICES, KC, RCM, UKCA, UL, cUL, VCCI, WEEE, TAA, EN, RCM, IEC/EN/UL, CAN/CSA, IEC/EN, IEC, RoHS, EU, REACH
|
| Supported Languages |
English
French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Dimensions (W x H x D) |
5.7 x 4.8 x 3.6" / 146 x 122 x 92 mm
|
| Weight |
1.7 lb / 760 g (Body Only)
|
Packaging Info
| Package Weight |
2.19 lb
|
| Box Dimensions (LxWxH) |
7.3 x 6.3 x 5.1"
|
