Description

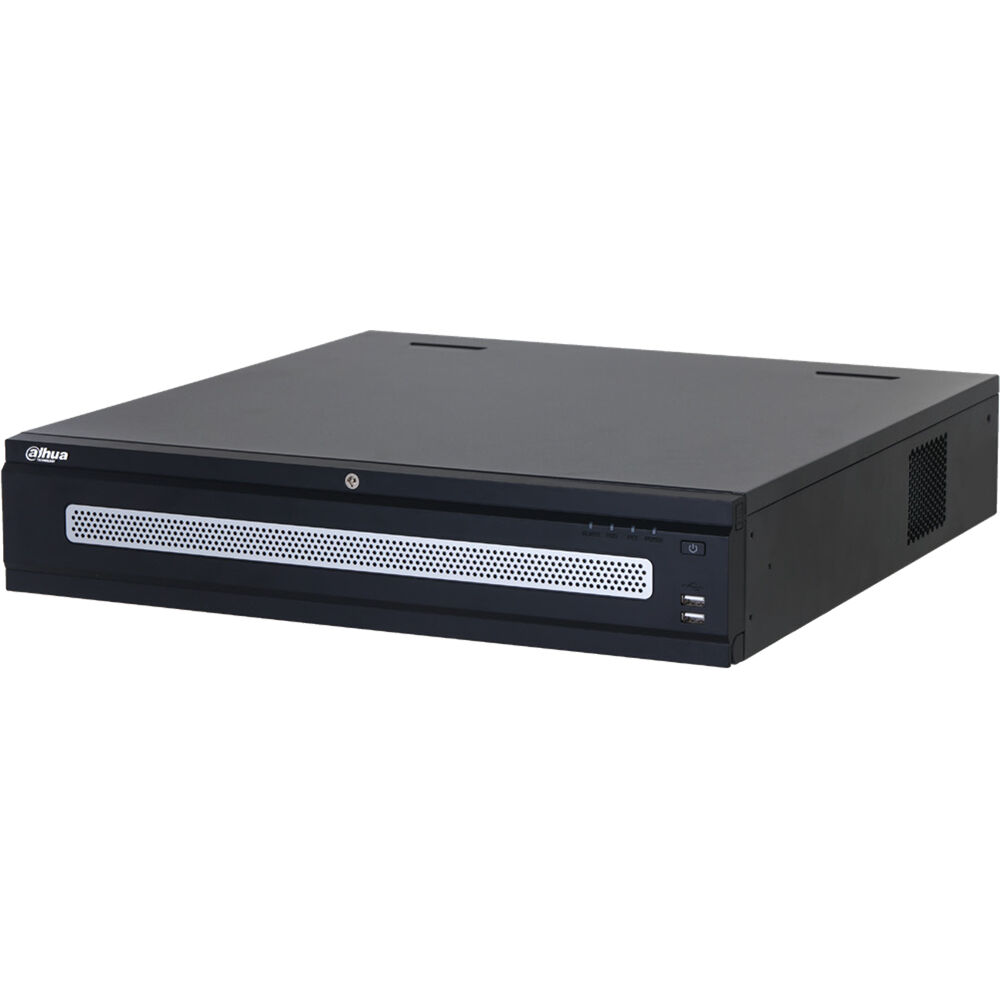

Dahua Technology N98A6N Overview
The N98A Series 64-Channel 8K Network Video Recorder from Dahua Technology is an enterprise-level NVR designed with a powerful processor, built-in deep learning modules, and image attribute extraction technology. It features high-precision Face Detection+, Perimeter Protection, and 4K resolution support to shorten the response time to events and provide critical information to security personnel, so they can take immediate action.
The NVR features eight SATA ports, supporting up to a 16TB HDD each. This model comes with 24TB of HDD storage. The NVR also has one eSATA port.
General Features
- 64-channel 1080p Self-Adaptive Decoding Capability
- Max 1024/1024/800 Mb/s Incoming/Recording/Outgoing Bandwidth
- Supports N+M Cluster
- Supports RAID 0/1/5/6/10
- Drawer-like chassis design allows for HDD hot swapping
- Analytics+ by recorder: AcuPick, 4-channel Face Detection and Face Detection+, 8-channel Metadata, 24-channel Perimeter Protection, 32-channel SMD+
- Analytics+ by camera: AcuPick, Face Detection, Face Detection+, Perimeter Protection, SMD+, Video Metadata, ANPR, People Counting
AcuPick
Dahua effectively utilizes both front-end and back-end intelligence to realize AcuPick. AcuPick technology is a true video search engine that can quickly locate the information you need. Use it to find a lost individual, locate a specific vehicle, or pinpoint evidence of a suspect who's damaged another's property.
Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires fewer pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.
Face Detection+
Face Detection+ technology identifies, tracks, and captures a human face in a digital image and then selects the best image and outputs a snapshot of the face. This technology identifies key facial features and obtains the contours of detected faces.
Smart Motion Detection+
Smart Motion Detection, a component of Dahua's Analytics+ technology, improves alarm accuracy and decreases the number of false alarms. The advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected. SMD also saves time when searching recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.
Image Attribute Extraction
With deep learning algorithm, Dahua Image Attribute Extraction technology can detect, track, capture vehicle, non-motor vehicle, and people, and select the best images, and extract attributes.
Intelligent Business Analysis
The built-in IVS features people counting and heat map functionality, advanced features that add business intelligence to your security system. Intelligent Analysis tracks and stores daily, weekly, monthly, and yearly people flow through a defined scene and produces a configurable report. The system uses this data to produce a Heat Map, a two-dimensional representation of data that provides an immediate visual summary of activity. People Counting and Heat Maps can identify the most active areas of a retail space, providing valuable data analysis for commercial applications.
Automatic License Plate Recognition (ANPR) Technology
The NVR automatically captures and stores vehicle license plate images from a dedicated license plate capture camera connected to the NVR. During playback, an operator can perform a license plate search by Time and Date to view thumbnail images of all plates captured during the specified time period. License plate capture technology offers effective entrance/exit management, traffic surveillance, and parking lot monitoring.
UPC: 810053977842
In the Box
- Dahua Technology N98A Series 64-Channel 8K Network Video Recorder (24TB, 2 RU)
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Dahua Technology N98A6NSpecs
Key Specs
| Number of Channels |
64
|
| Playback Resolution |
HDMI:
1080p, 8K, 4K VGA: 1080p |
| Recording Resolution |
1080p, 720p, D1, 4 MP, 5 MP, 8 MP, 12 MP, 16 MP, 24 MP, 32 MP
|
| PTZ Support |
No
|
| Throughput |
1024 Mb/s (Incoming)
1024 Mb/s (Recording) 800 Mb/s (Outgoing) |

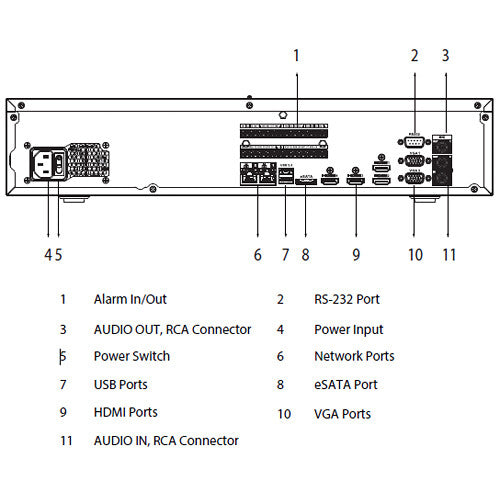

| A/V I/O |
1x HDMI 2.1 Output
2x HDMI 2.0 Output 1x HDMI 1.4 Output 2x VGA Output 2x RCA Audio Output 1x RCA Audio Input |
| Communication I/O |
1x RS-232 (Rear)
1x RS-485 (Rear) 2x RJ45 2.5 GbE (Rear) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 2x USB-A 2.0 (Front) |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
1x 24 TB Hard Drive
|
General
| Number of Channels |
64
|
| Playback Resolution |
HDMI:
1080p, 8K, 4K VGA: 1080p |
| Recording Resolution |
1080p, 720p, D1, 4 MP, 5 MP, 8 MP, 12 MP, 16 MP, 24 MP, 32 MP
|
| PTZ Support |
No
|
| Throughput |
1024 Mb/s (Incoming)
1024 Mb/s (Recording) 800 Mb/s (Outgoing) |
| Decoding Resolution |
2 Channels:
24 MP, 32 MP at 24 fps 24 MP, 32 MP at 30 fps 4 Channels: 16 MP at 30 fps 8 Channels: 8 MP at 30 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps 64 Channels: 1080p at 15 fps 720p at 30 fps |
Connectivity
| A/V I/O |
1x HDMI 2.1 Output
2x HDMI 2.0 Output 1x HDMI 1.4 Output 2x VGA Output 2x RCA Audio Output 1x RCA Audio Input |
| Communication I/O |
1x RS-232 (Rear)
1x RS-485 (Rear) 2x RJ45 2.5 GbE (Rear) 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 2x USB-A 2.0 (Front) |
| System Connection |
1x eSATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Network Protocols |
DHCP, HTTP, HTTPS, IPv4, NTP, RTSP, TCP/IP, UDP
|
Compatibility
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+, MJPEG
|
| Supported Audio Codecs |
AAC, G.711A, G.711Mu, G.723, G.726, PCM
|
System
| Installed Drive |
1x 24 TB Hard Drive
|
| Number of Bays |
8x 3.5" Internal
|
| RAID Support |
Yes, RAID 0/1/5/6/10
|
| Hot-Swap Storage Support |
Yes
|
Software System Requirements
| OS Compatibility |
Computer: Linux
Mobile: Android/iOS |
| Web Browser Support |
Chrome, Edge, Firefox
|
Notifications
| Alarm I/O |
16x Input
8x Output |
| Event Trigger |
Alarm, Camera Event, Disconnected, Disk Full, Network Loss, PIR
|
| Notification Type |
Buzzer, Email
|
System Functions
| Multi-Screen Configuration |
1, 4, 8, 9, 16, 25, 36, 64 (Primary Display)
1, 4, 8, 9, 16, 25, 36 (Secondary Display) |
| Fisheye Dewarping |
Yes
|
Electrical
| Power Consumption |
18 W (Typical, Without HDD)
|
| Power Supply Type |
Internal
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 93% Humidity
|
| Certifications |
UL 62368-1, CAN/CSA C22.2 No.62368-1-14, FCC 47 CFR FCC Part15, SubpartB, Class A, EN 55032:2020, Class A, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, EN 55035:2020, EN 50130-4:2011+A1:2014
|
| Cooling Method |
Fan
|
| LED Indicators |
Yes
|
| Rack Form Factor |
2 RU
|

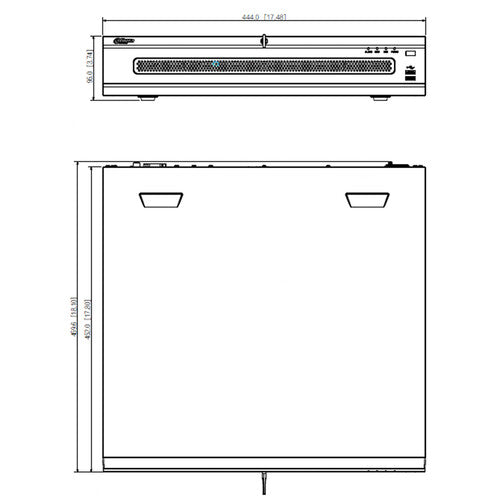

| Dimensions (W x D x H) |
17.5 x 18.0 x 3.7" / 444.0 x 456.6 x 95.0 mm
|
| Weight |
14.11 lb / 6.4 kg (Without HDD)
|
Packaging Info
| Package Weight |
26.415 lb
|
| Box Dimensions (LxWxH) |
22.5 x 22.1 x 9.9"
|
