Description

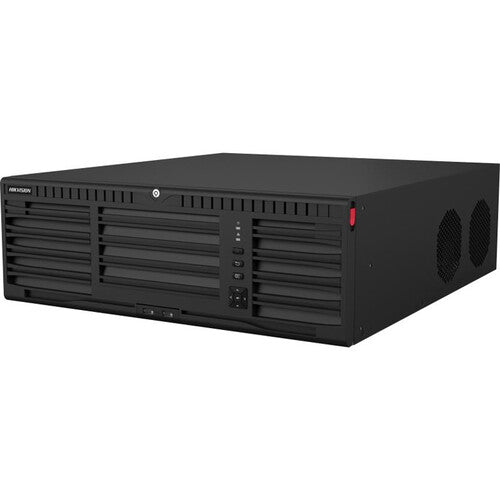

Hikvision DS-96128NI-M16/R Overview
Record from and manage up to 128 cameras with the M Series DS-9664NI-M16/R 64-Channel 8K NVR (No HDD) from Hikvision. This NVR supports IP cameras up to 32MP. It is equipped with sixteen SATA ports that each support an HDD up to 14TB, for a maximum capacity of 224TB (HDDs available separately). H.265+, H.265, H.264+, and H.264 video compressions keep file sizes manageable while maintaining the best quality possible.
This NVR supports two-way audio. Compliance with ONVIF profiles S and T enables interoperability with a wide range of network cameras. Two HDMI and two VGA ports enable video output to an external monitor at up to 8K resolution (HDMI output 1 only).
Recording resolution up to 32MP
Dual-stream recording saves bandwidth
TLS encryption for secure transmission stream
16-channel synchronous playback
Smooth streaming technology
Hik-Connect enables seamless network management
Supports web access without plug-in
Redundant power supply
Smart & POS Functions
Supports multiple VCA (Video Content Analytics) events
Configurable camera smart functions include: VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (automatic number-plate recognition), and people counting
POS information overlay on live view and playback
POS-triggered recording and alarm
UPC: 842571148510
In the Box
- Hikvision M Series DS-96128NI-M16/R 128-Channel 8K NVR (No HDD)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Hikvision DS-96128NI-M16/RSpecs
Key Specs
| Number of Channels |
128
|
| Playback Resolution |
HDMI (Output 1):
7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 7 MP, 8 MP, 12 MP, 24 MP, 32 MP
|
| PTZ Support |
No
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| A/V I/O |
2x HDMI Output
2x VGA Output 1x BNC CVBS Output (1 V p-p, 75) 2x RCA Audio Output (1 Kilohm, Linear) 1x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication I/O |
2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex) 1x RS-232 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 2x USB-A 2.0 (Front) |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
No
|
General
| Number of Channels |
128
|
| Playback Resolution |
HDMI (Output 1):
7680 x 4320 at 30 Hz 3840 x 2160 at 60 Hz HDMI (Output 2): 3840 x 2160 at 60 Hz VGA (Output 1): 1920 x 1080 at 60 Hz VGA (Output 2): 1920 x 1080 at 60 Hz |
| Recording Resolution |
1080p, 720p, 4CIF, 2CIF, DCIF, QCIF, CIF, UXGA, VGA, 3 MP, 4 MP, 5 MP, 6 MP, 7 MP, 8 MP, 12 MP, 24 MP, 32 MP
|
| PTZ Support |
No
|
| Throughput |
400 Mb/s (Incoming)
400 Mb/s (Outgoing) |
| IP Camera Support |
128
|
| Decoding Resolution |
2 Channels:
32 MP at 30 fps 8 Channels: 8 MP at 30 fps 16 Channels: 4 MP at 30 fps 32 Channels: 1080p at 30 fps |
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
2x HDMI Output
2x VGA Output 1x BNC CVBS Output (1 V p-p, 75) 2x RCA Audio Output (1 Kilohm, Linear) 1x RCA Audio Input (2 V p-p, 1 Kilohm) |
| Communication I/O |
2x RJ45 Gigabit Ethernet
1x RS-485 (Full-Duplex) 1x RS-232 2x USB-A 3.0 / 3.1/3.2 Gen 1 (Rear) 2x USB-A 2.0 (Front) |
| Audio I/O |
1x Input
2x Output |
| System Connection |
16x SATA
1x eSATA |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Network Protocols |
DDNS, DHCP, DNS, HTTP, HTTPS, IPv4, IPv6, NFS, NTP, RTSP, SADP, SMTP, SNMP, TCP/IP, UPnP, iSCSI
|
Compatibility
| Supported Video Codecs |
H.264, H.264+, H.265, H.265+
|
| Supported Audio Codecs |
AAC, G.711A, G.711U, G.722, G.726, MP2L2, PCM
|
System
| Installed Drive |
No
|
| Max Capacity Supported |
14 TB (Each Drive)
224 TB (Total) |
| Number of Bays |
16x Internal
|
| RAID Support |
Yes, RAID 0/1/5/6/10
|
Software System Requirements
| OS Compatibility |
Computer: Windows / macOS
Mobile: Android/iOS |
Notifications
| Alarm I/O |
16x Input
9x Output |
| Event Trigger |
Analytics
|
System Functions
| Recording Modes |
Alarm, Analytics
|
| Dual Streaming |
Yes
|
| Multi-Screen Configuration |
2 (Primary Display, Secondary Display)
|
| Fisheye Dewarping |
Yes
|
Electrical
| Power Consumption |
50 W (Without HDD)
|
| Power Supply Type |
External
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
14 to 131°F / -10 to 55°C at 10 to 90% Humidity
|
| Certifications |
CE, FCC, ANSI, EN
|
| LED Indicators |
Yes
|
| Rack Form Factor |
3 RU
|
| Dimensions (W x D x H) |
17.5 x 19.5 x 5.9" / 445.0 x 496.0 x 150.0 mm
|
| Weight |
27.6 lb / 12.5 kg
|
Packaging Info
| Package Weight |
33.94 lb
|
| Box Dimensions (LxWxH) |
25.1 x 24 x 11.7"
|
