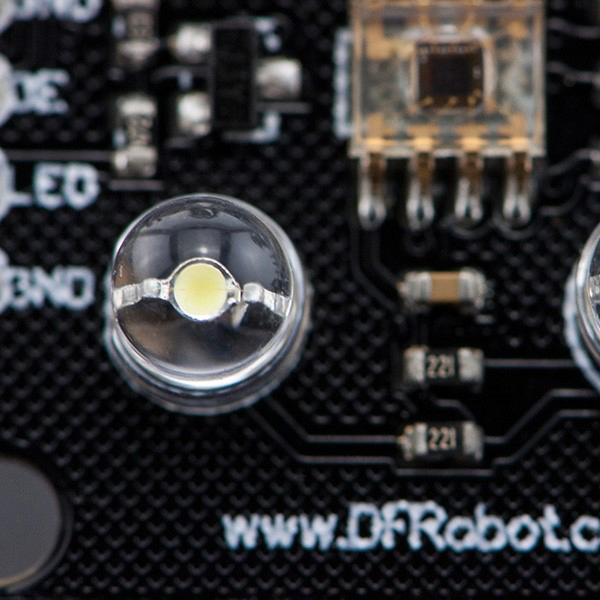

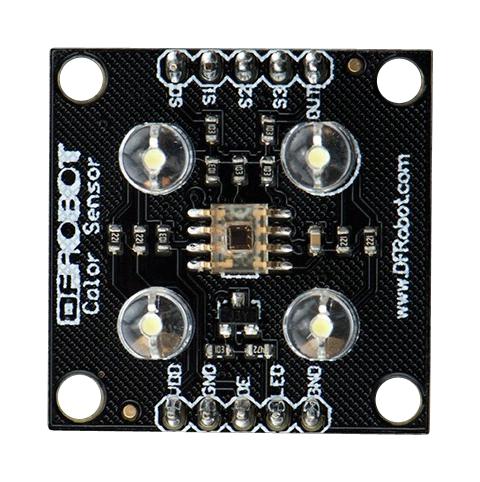

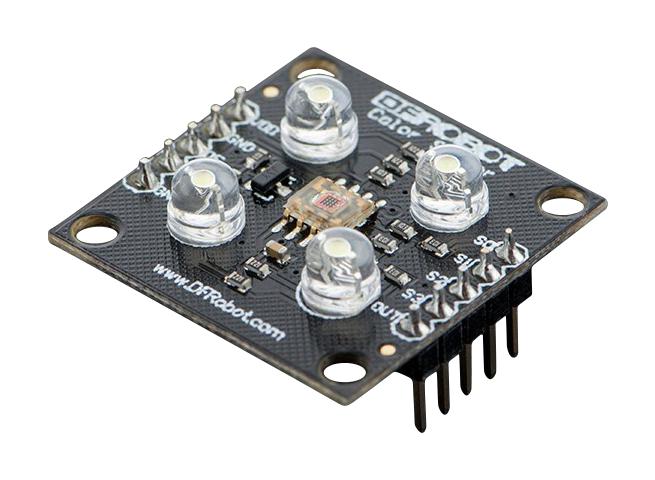

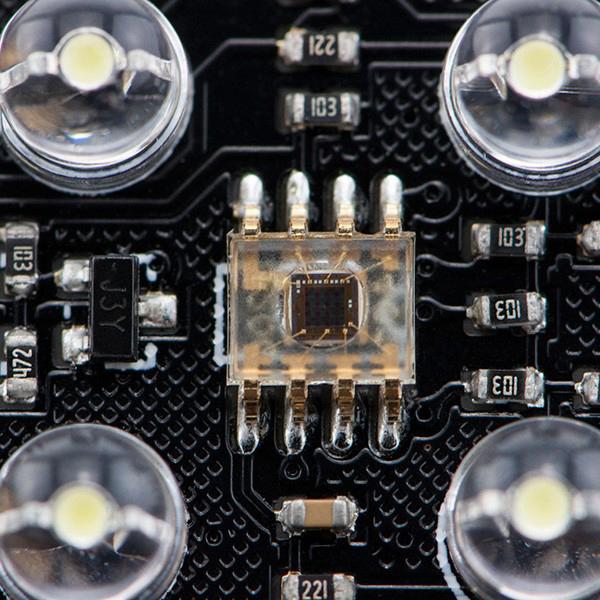

TCS3200 GBB colour sensor For Arduino is a complete colour detector, including a TAOS TCS3200 RGB sensor chip and 4 white LEDs. The TCS3200 can detect and measure a nearly limitless range of visible colours. Applications include test strip reading, sorting by colour, ambient light sensing and calibration, and colour matching, to name just a few. The TCS3200 GBB Colour Sensor For Arduino has an array of photo detectors, each with either a red, green, or blue filter, or no filter (clear). The filters of each colour are distributed evenly throughout the array to eliminate location bias among the colours. Internal to the device is an oscillator which produces a square-wave output whose frequency is proportional to the intensity of the chosen colour.
- Power: (2.7V to 5.5V)
- Digital TTL interface
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable colour and full-scale output frequency
- Power down feature
- Communicates directly to microcontroller
- Size: 28.4x28.4mm(1.12x1.12")
Product details
| Accessory Type |
Fermion TCS3200 RGB Color Sensor (Breakout) |
| For Use With |
DFRduino UNO R3 Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
SEN0101 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
