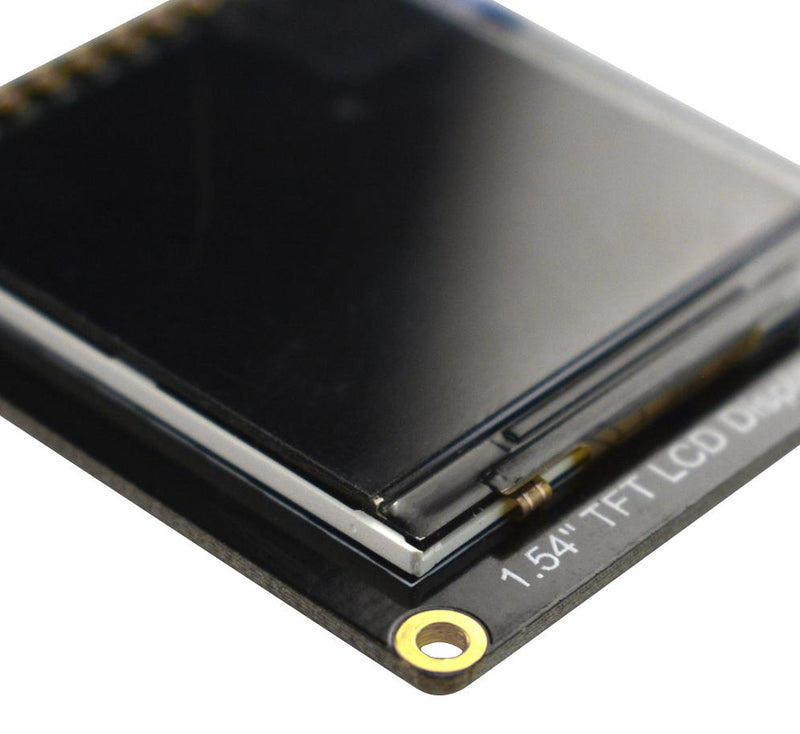

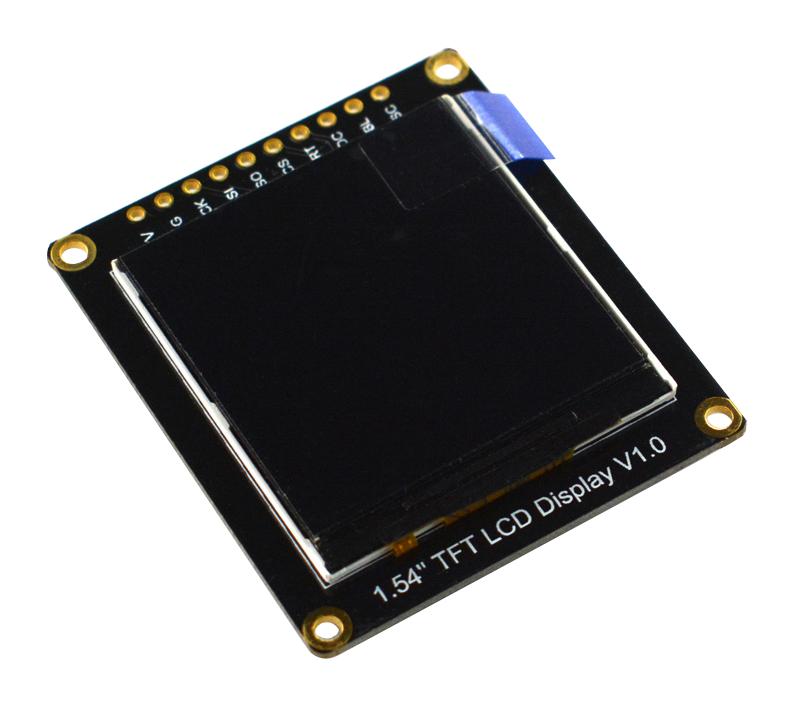

Fermion: 1.54" 240x240 IPS TFT LCD display features high resolution, low power consumption, wide angle and easy wiring. It employs IPS display with a small size of 1.54 inches, offering 240�240 resolution. The module adopts SPI and GDI interface(work with maincontrollers with GDI port). This LCD display can be powered by 3.3V~5V, and the maximum is power consumption is 24Ma. This product can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.
- Operating voltage range from 3.3V to 5V
- Colour depth: 16-bit (RGB565)
- Brightness: 250 (typ) cd/m2
- Full-screen power consumption: about 17mA(3.3V) 17mA(5V)(typ)
- Operating temperature range from -30�C to 70�C
- Display area: 27.72�27.72 mm

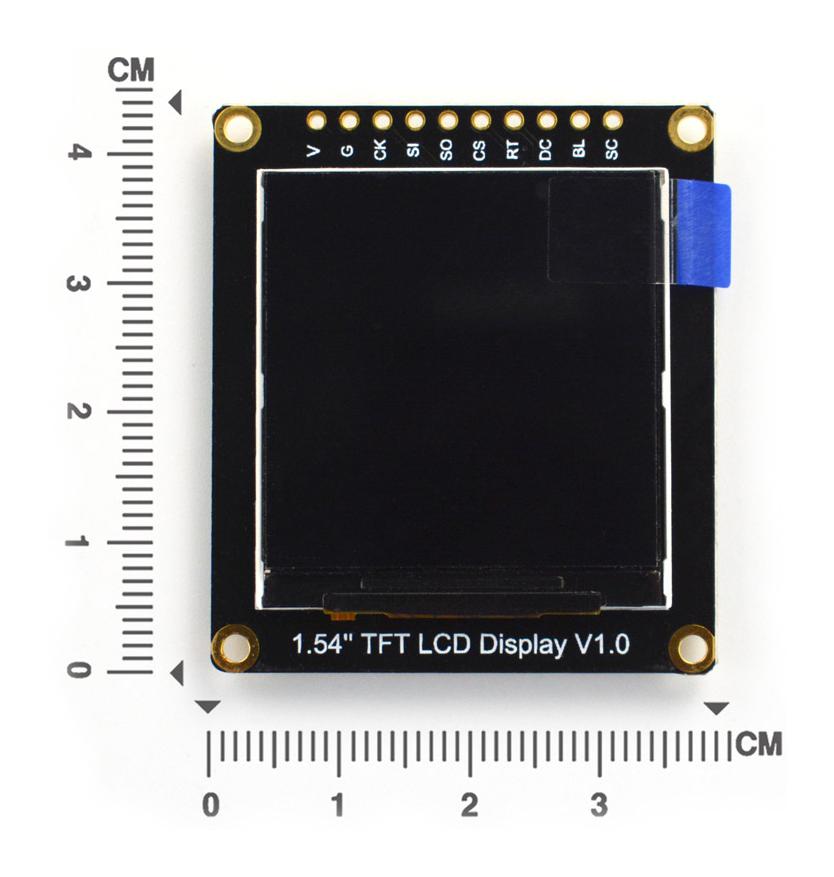

- Dimension: 44.00x39.00mm
Contents

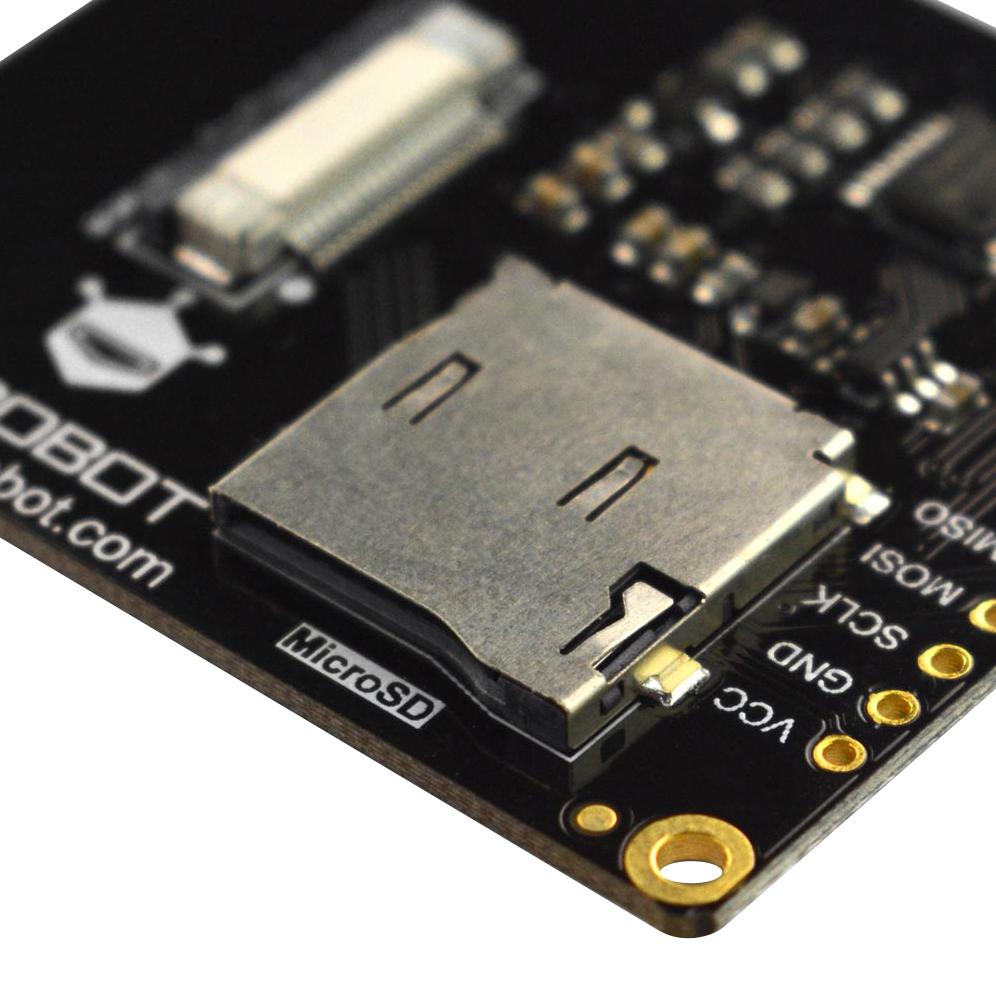

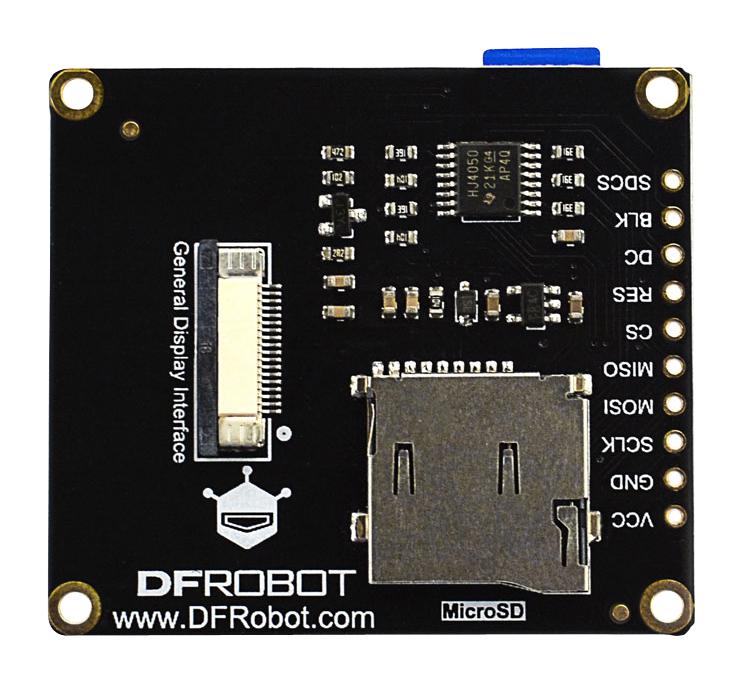

1.54" 240 x 240 IPS TFT LCD display with MicroSD card breakout x 1, 2.54-10P single-row black pin x 1, FPC0.5-18PIN flex flat cable reverse direction 10cm x 1.
Product details
| Silicon Manufacturer |
Adafruit |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
ST7789 |
| Silicon Family Name |
- |
| For Use With |

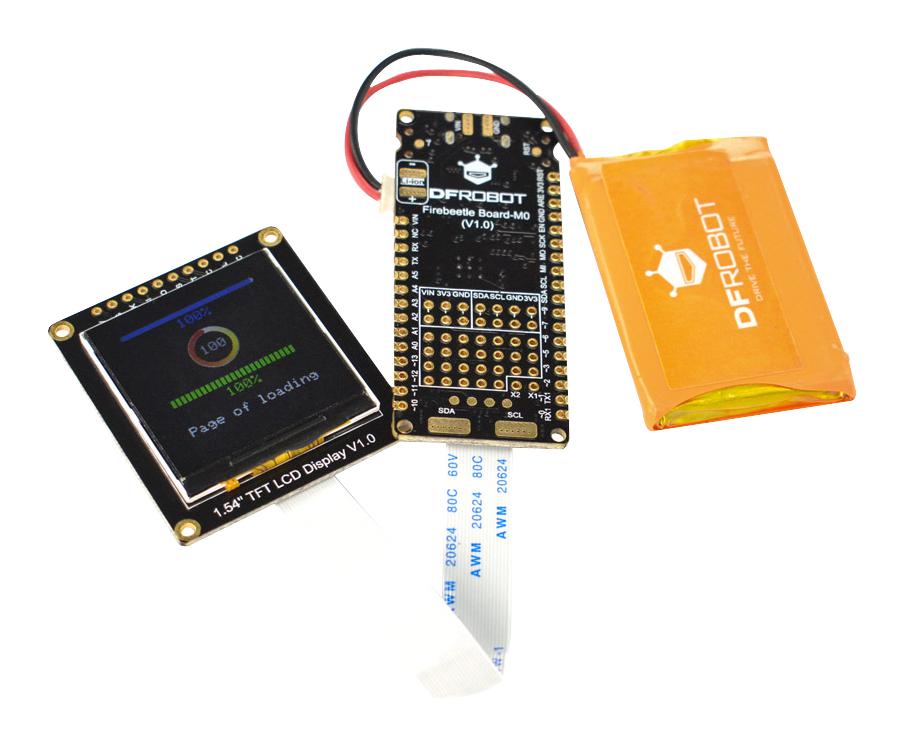

DFRduino UNO R3, Leonardo, ESP32, ESP8266 and FireBeetle M0 Boards |
| Kit Contents |
1.54" 240x240 IPS TFT LCD Display w/MicroSD Card, 2.54-10P Black Pin, FPC0.5-18PIN Flex Flat Cable |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0649 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
